WARNING
Observe all safety regulations. Electrical wiring should be
performed in accordance with all agency requirements and
applicable national, state, and local codes to prevent damage to
the meter and ensure personnel safety.

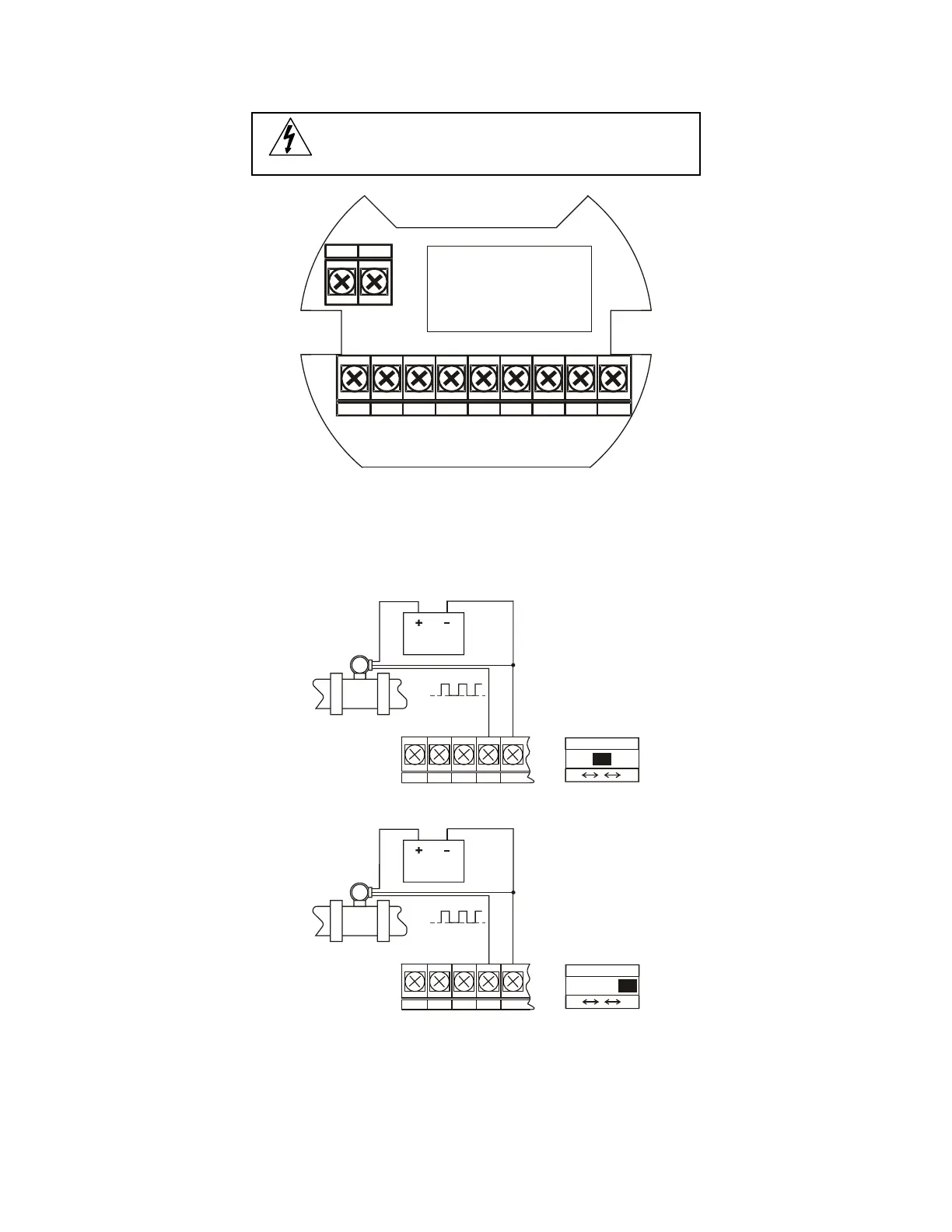

Figure 1. Connector Board
Input Signal Connections
Signal connections are made to a barrier terminal mounted in the base of the enclosure. Input level and
type are configured using the slide switches on the bottom of the display module as shown in the lower
right of the following figures.
Flowmeter
(Pulse Output)
Power
Supply
COM
RST
P+
S+ S-
INPUT LEVEL
mV V ISO
Figure 2. Flowmeter Powered by External Supply (Active)
Flowmeter
(Pulse Output)
Power
Supply
COM RST
P+
S+ S-
INPUT LEVEL
mV V ISO
Figure 3. Isolated Flowmeter Powered by External Supply (ISO)
P+
COM RST
S+
S- OC1+
OC1-
OC2+
OC2-
LP+LP-
To Next Page
