Open Collector Output Connections
Open collector output 1 and 2 connections are made to terminals labeled OC1+ and OC1-, and OC2+
and OC2-. Connect the alarm or pulse input device as shown in Figure 11.

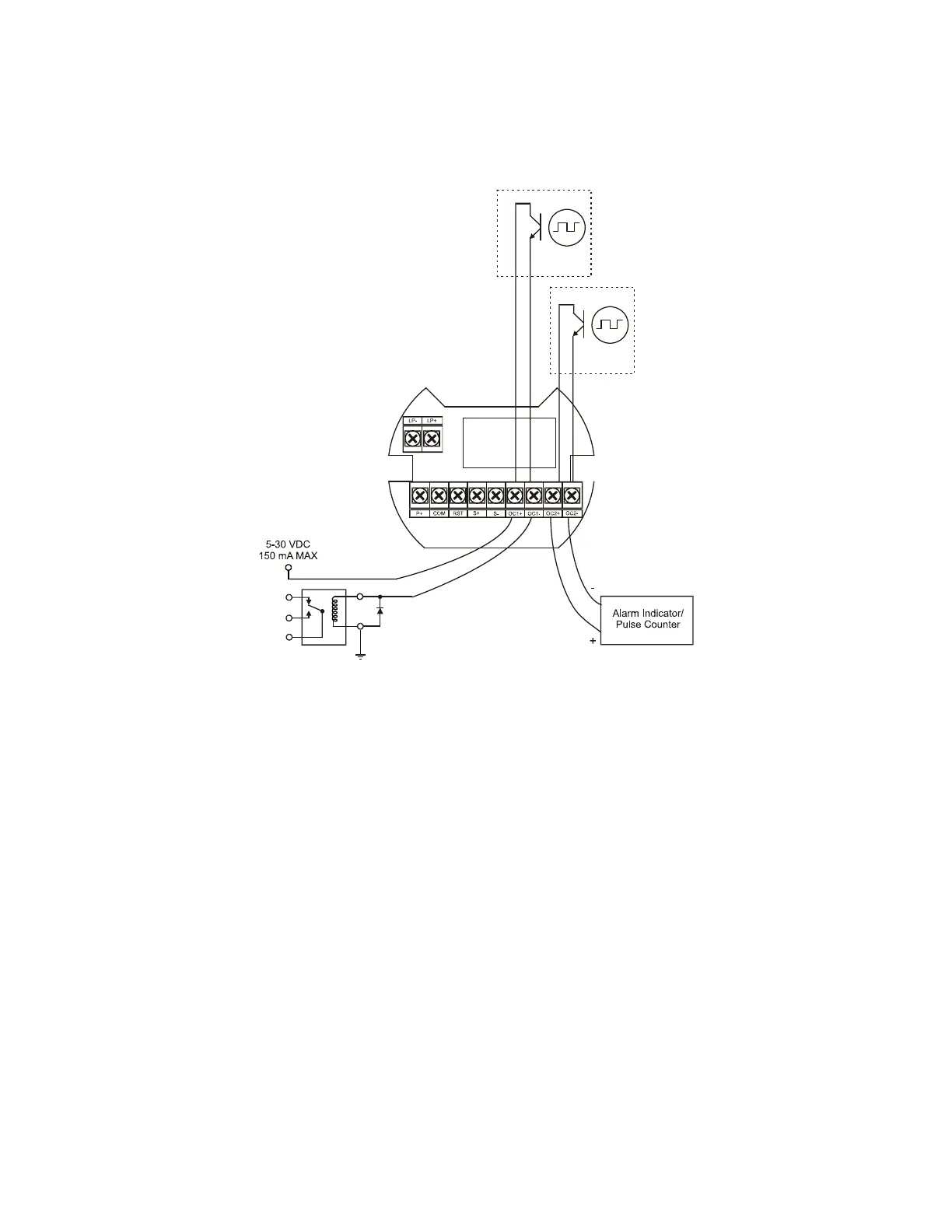

Figure 11. Open Collector Output Connections
