Scaling the 4-20 mA Analog Output (Aout)
The Analog Output menu is used to program the 4-20 mA output based on display values.
The 4-20 mA analog output (if equipped) can be scaled to provide a 4-20 mA signal for any display range
selected for either the rate, total, or grand total. The output may be disabled (DSABL), and will only
output the minimum signal.

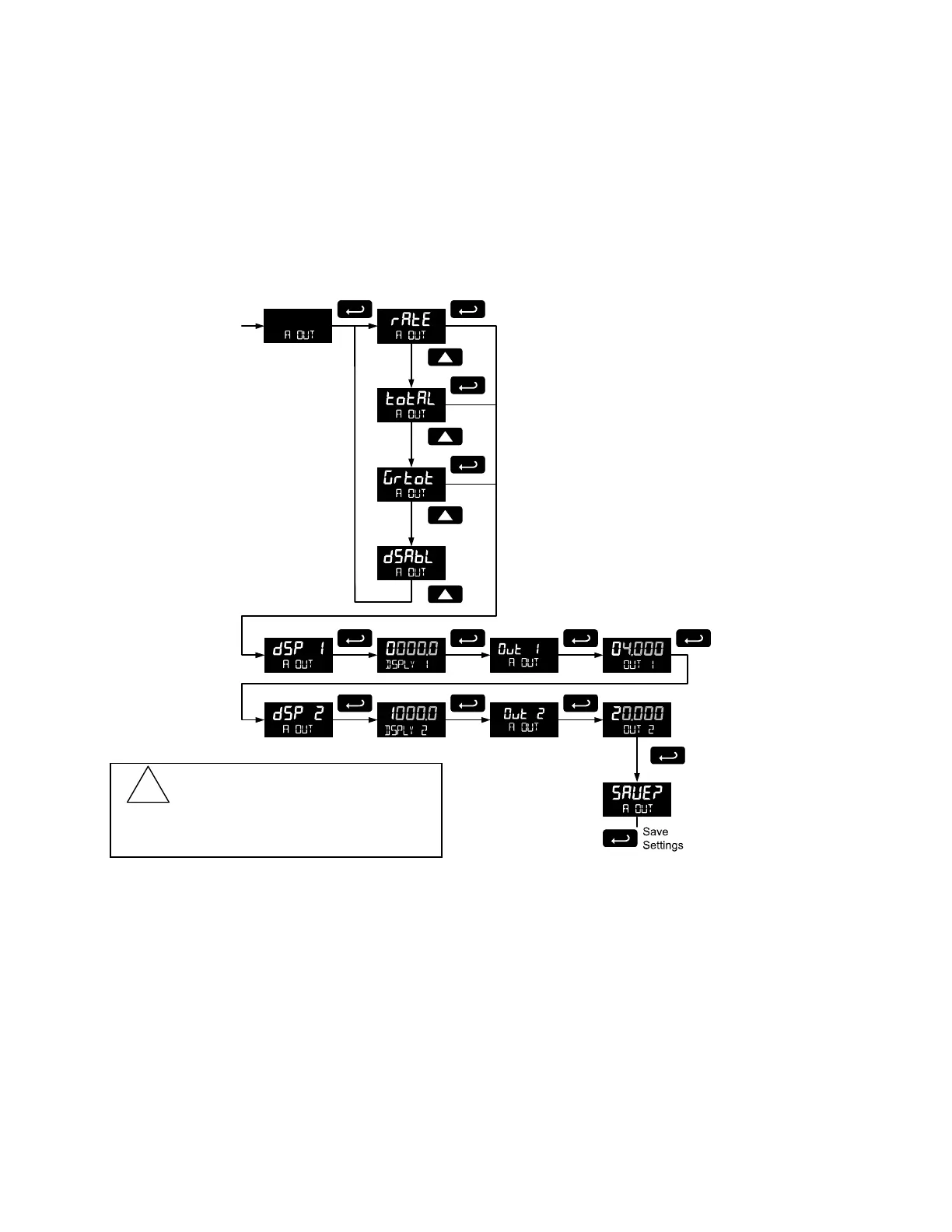

No equipment is needed to scale the analog output; simply program two display values and
corresponding mA output signals.
!
CAUTION
Please note that when power is removed
from the meter, the analog output will drop
below 1 mA.
Take this effect into consideration when
designing any system using the 4-20 mA
output.
