Configuring the Display (Dsply)
The top and bottom displays can be independently programmed to display selected information.

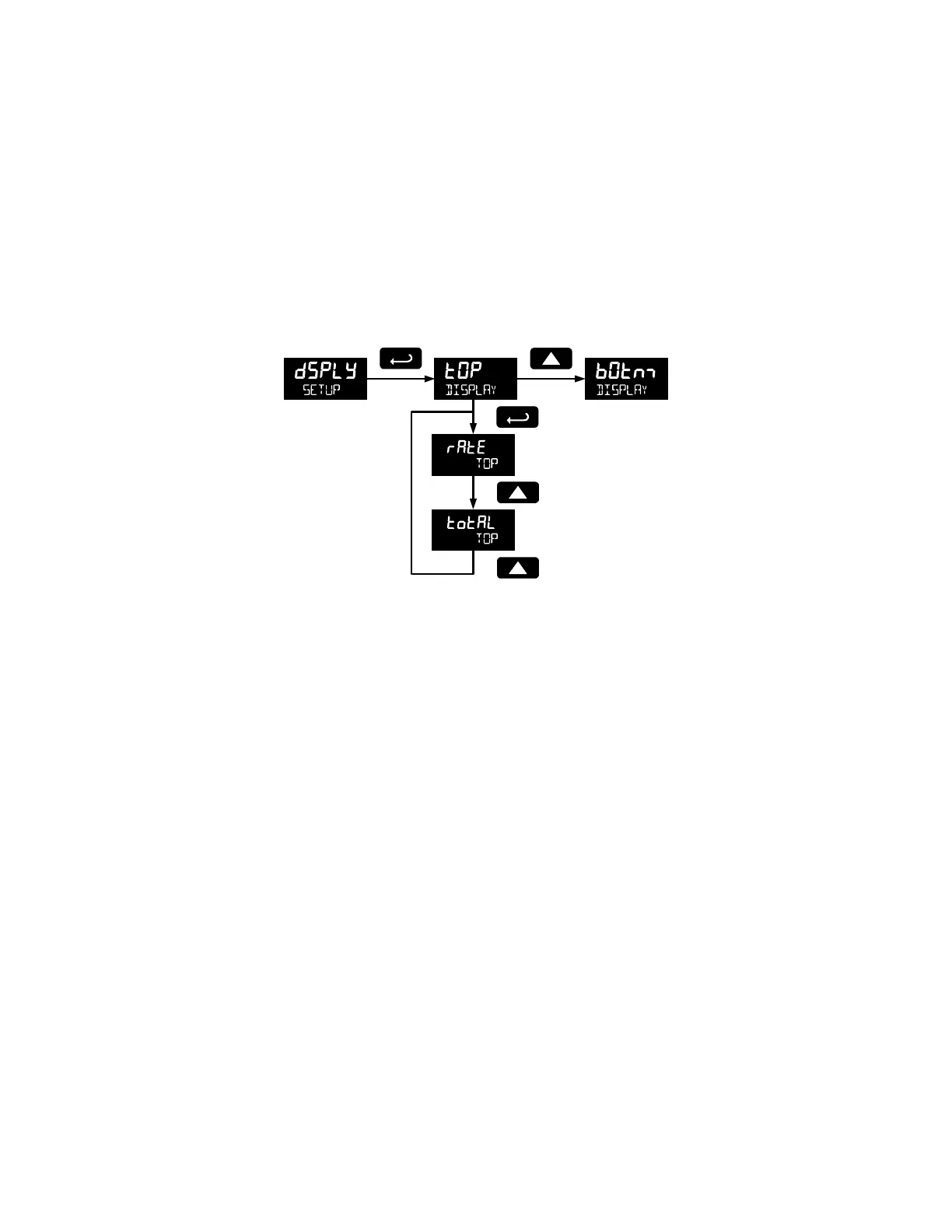

Top Display (TOp)
The top display can be programmed to display rate or total. When displaying total, the top display will only
show the 5 least significant digits, with no overflow display, for a total from 0 to 99999. The total rolls over
at 99999 to 0 when on the top display. For a full 7-digit total with 13-digit total overflow display function,
use the bottom display for total.
