Brother DCP-B7500D Service Manual

3-88
Confidential
 MP models

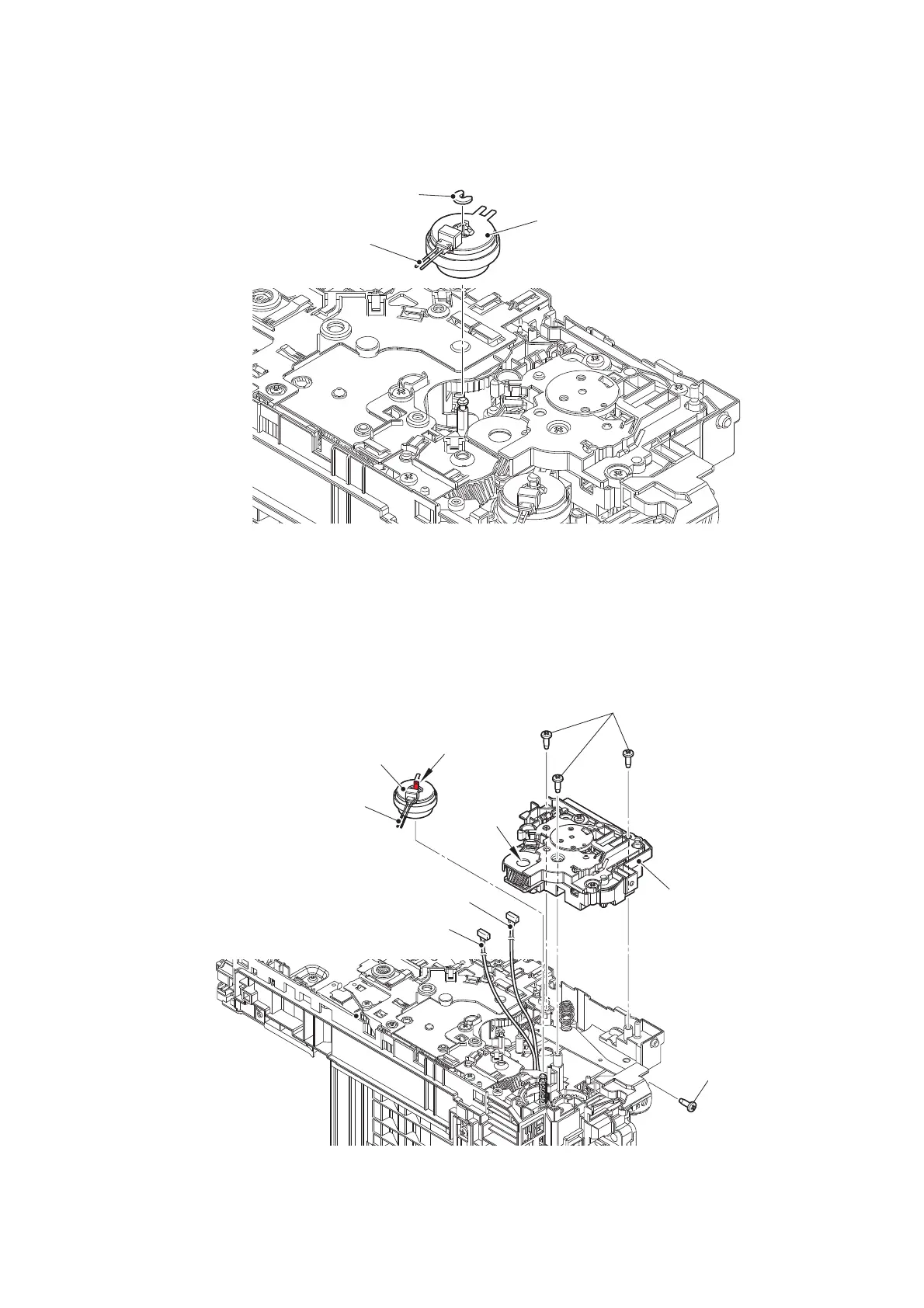

(1) Release the Registration clutch harness from the securing fixtures.
(2) Remove the Collar 4 to remove the Registration clutch.
Fig. 3-86
(3) Release the T1 clutch harness and the Paper feed sensor harness from the securing
fixtures.
(4)
Remove the three Taptite bind B M4x12 screws and the Taptite pan B M4x14 screw to remove
the MP frame parts. Pull out the Paper feed sensor harness and the MP paper empty sensor
harness from the hole of the MP frame parts.
(5) Release the Hook, and remove the T1 clutch.
Fig. 3-87
Harness routing: Refer to “11. Frame L unit (MP models)”.
Registration clutch
Collar 4
Registration clutch harness
T1 clutch
Taptite pan B
M4x14
Hook
MP frame parts
Taptite bind B M4x12
T1 clutch harness
Hole
Paper feed sensor harness
MP paper empty sensor harness

Brother DCP-B7500D Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	34 ppm
Printing colors	Black
Duplex functions	Print
Maximum duty cycle	15000 pages per month
Number of print cartridges	1
Page description languages	BR-Script 3, PCL 6, PDF 1.7
Copier resize	25 - 400 %
Duplex copying	-
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	99 copies
Scan to	E-mail, File, Image
Input color depth	30 bit
Output color depth	24 bit
Input grayscale depth	10 bit
Output grayscale depth	8 bit
Optical scanning resolution	1200 x 1200 DPI
Faxing	No
Total input capacity	250 sheets
Total output capacity	120 sheets
Paper tray media types	Plain paper, Recycled paper, Thin paper
Paper tray media weight	60 - 230 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
Maximum ISO A-series paper size	A4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Product color	Gray
Market positioning	Home & office
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.2 Jaguar, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.03 W
Power consumption (ready)	42 W
Power consumption (sleep)	6.2 W
Power consumption (printing)	485 W

Weight and Dimensions

Depth	398.5 mm
Width	410 mm
Height	272 mm
