Brother DCP-B7500D Service Manual

3-97
Confidential
9.34 Front cover sensor
(1) Remove the Gear toner box idle 32 and the Sector gear toner box from the Holder toner
box. (Only for models with Toner box)
(2) Remove the Spring sector gear toner box from the Hook of Holder toner box and the Hook
of Lever solenoid. (Only for models with Toner box)
(3) Remove the four Taptite bind B M4x12 screws, and remove the Holder toner box and the
Lift cam guide from the Frame L unit. (For models with Toner box)
Remove the two Taptite bind B M4x12 screws, and remove the Lift cam guide from the
Frame L unit. (For models without Toner box)
(4) Release each Hook to remove the Front cover sensor from the Frame L unit.

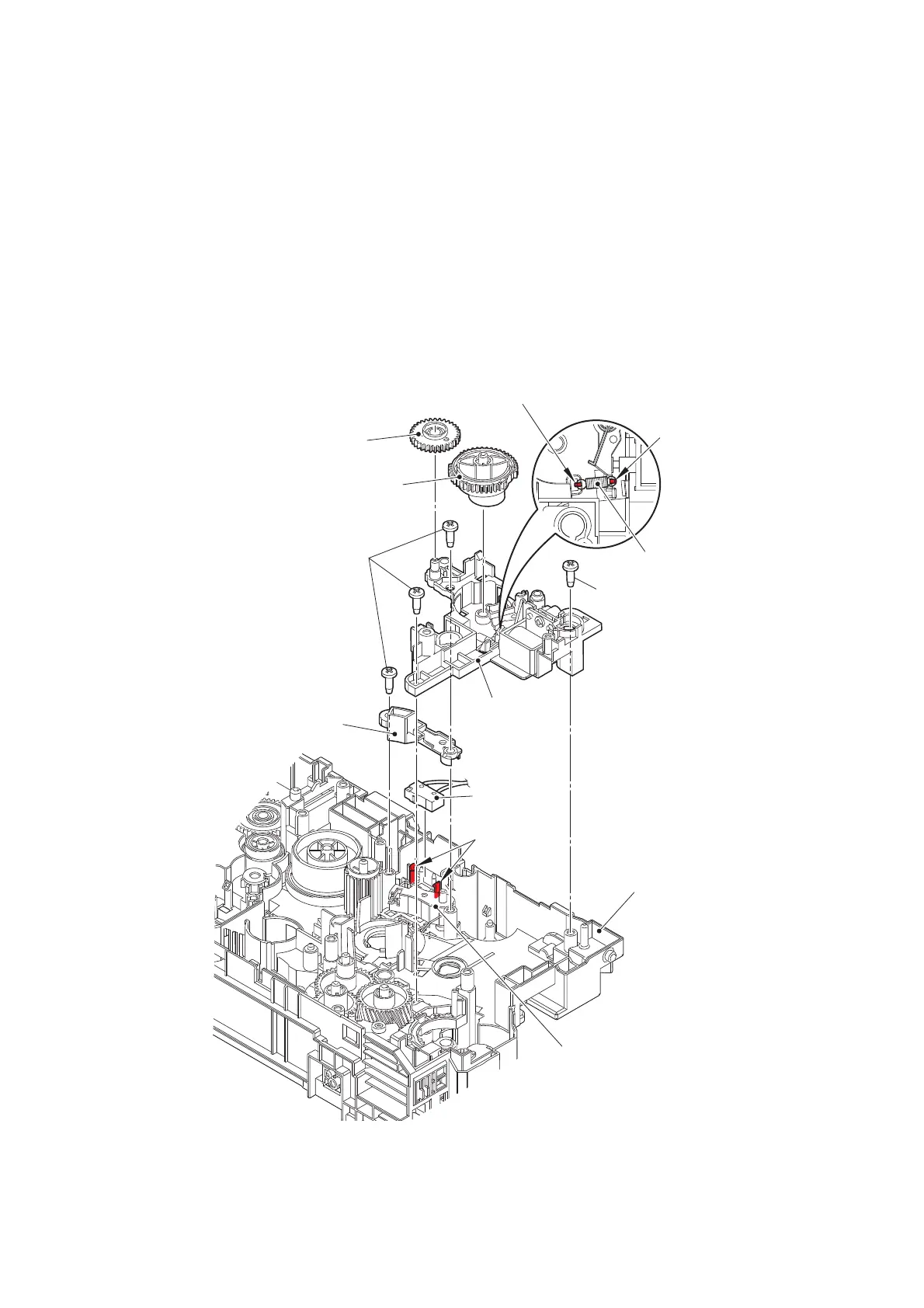

Fig. 3-97
Gear toner box idle 32
Spring sector gear toner box
Sector gear toner box
Hook of Holder toner box
Hook of Lever
solenoid
Taptite bind B M4x12
Taptite bind B M4x12
Lift cam guide
Holder toner box
Front cover
sensor
Hooks
Frame L unit
Lever solenoid
