1. About GT-3 Series

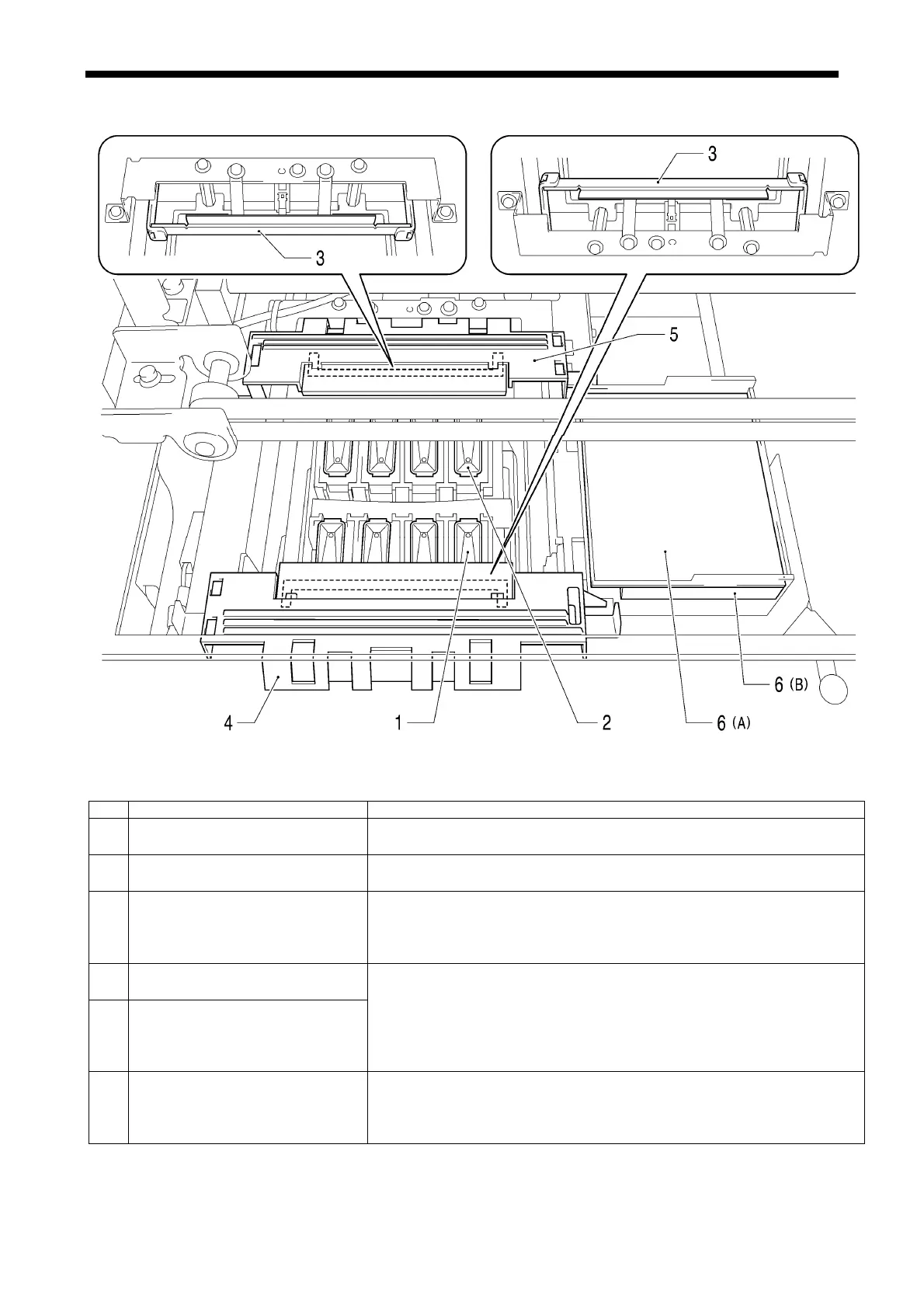

1-3-5. Upper part of the Maintenance Unit
0048Y
No. Name Description
1 Caps (Front: Color side) Cover the surface of the Print Heads and absorb ink in head cleaning.
From the left black, magenta, cyan, and yellow.
2 Caps (Back: White side) Cover the surface of the Print Heads and absorb ink in head cleaning.
From the left W1, W2, W3, and W4.
3 Wipers (Color / White) Wipe off the waste ink on the surface of Print Heads. Keep them clean
for print quality at the timing when you exchange Wiper Cleaner. See
"6-1-2. Replacing the Wiper Cleaner and Cleaning the Caps / Wipers”
in the Instruction Manual.
4 Wiper Cleaner
(Front: Color side)
5 Wiper Cleaner
(Back: White side)
Removes the waste ink on the Wiper. Exchange regularly and keep
them clean for print quality, at the timing when you open the new ink
cartridge or when you see the warning on the display of Control Panel.
Remove the projections of both sides and lift it up. See "6-1-2.
Replacing the Wiper Cleaner and Cleaning the Caps / Wipers" in the
Instruction Manual.
6 Flushing Plate Sponge
Flushing Plate Felt
Hold the flushed ink for keeping print quality. Exchange them at the
timing when you exchange Wiper Cleaner. See "6-1-3. Replacing the
Flushing Plate Sponge and Flushing Plate Felt" in the Instruction
Manual.
GT-3 Series 5
