STEP B: Alignment Check
The LCD shows:
Check the 600 DPI and 1200 DPI test prints to see if number 5 most closely
matches number 0. If the number 5 sample of both the 600 DPI and 1200 DPI
are the best matches, press
1 (YES) to finish STEP B––OR––
If another test print number is a better match for either 600 DPI or 1200 DPI,
press
2 (NO) to select it.
For 600 DPI, press the number of the test
print that most closely matches the
number 0 sample (1-8).
For 1200 DPI, press the number of the
test print that most closly matches the
number 0 sample (1-8).
4 Repeat Steps 1 and 2 (in Print Quality Check) to print another sample Print
Quality Check Sheet and then check it.
5 Press Stop/Exit.

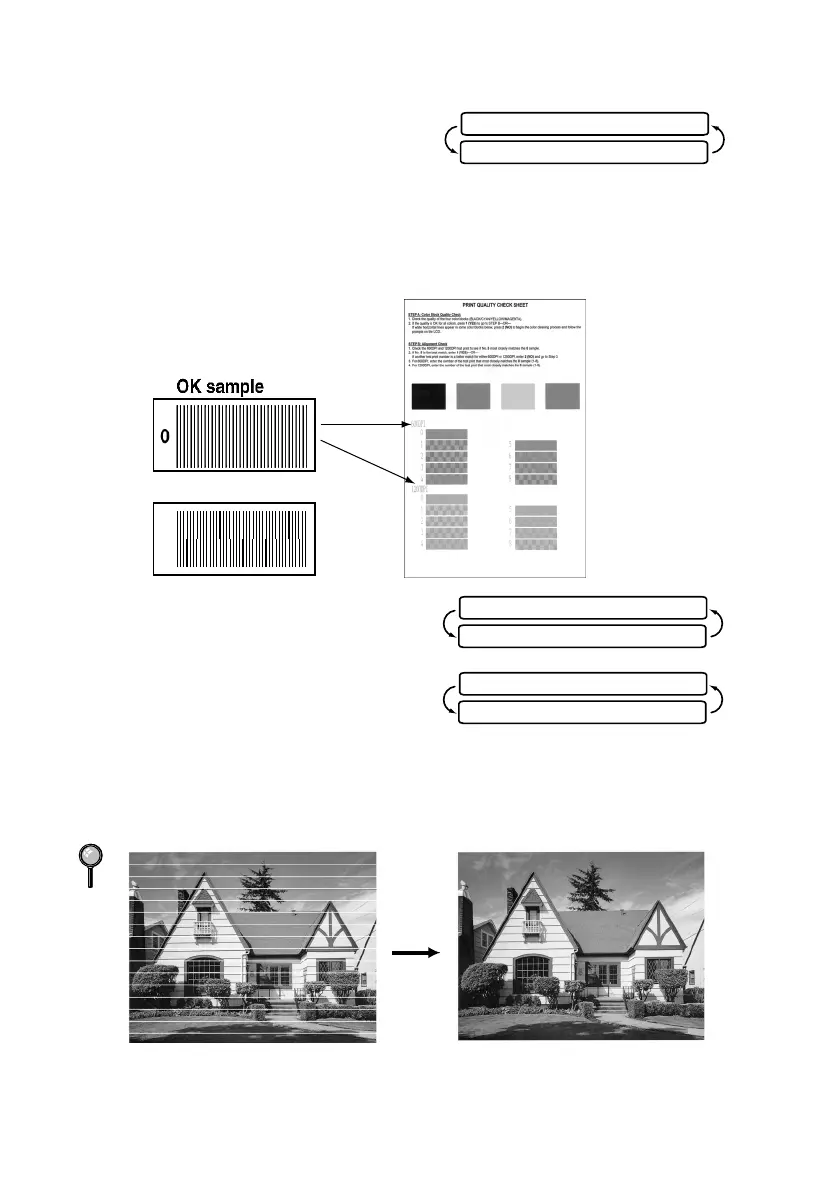

When an ink head nozzle is clogged
the printed sample looks like this.
After the ink head nozzle is cleaned,
the horizontal lines are gone.
IS STEP “B” OK?
1.YES 2.NO
600 DPI
1200 DPI
}
}
Do NOT select
600DPI ADJUST
SELECT BEST #
1200DPI ADJUST
SELECT BEST #
