Brother MFC-8810DW Service Manual

3-109
Confidential
9.43 T1 paper feed sensor PCB ASSY / T1 paper feed actuator / T1 paper feed
actuator spring
(1) Release the T1 paper feed sensor harness (white connector) from the securing fixtures.
(2) Remove the taptite bind B M3x10 screw, and release the hook to remove the T1 paper
feed actuator holder ASSY from the machine.

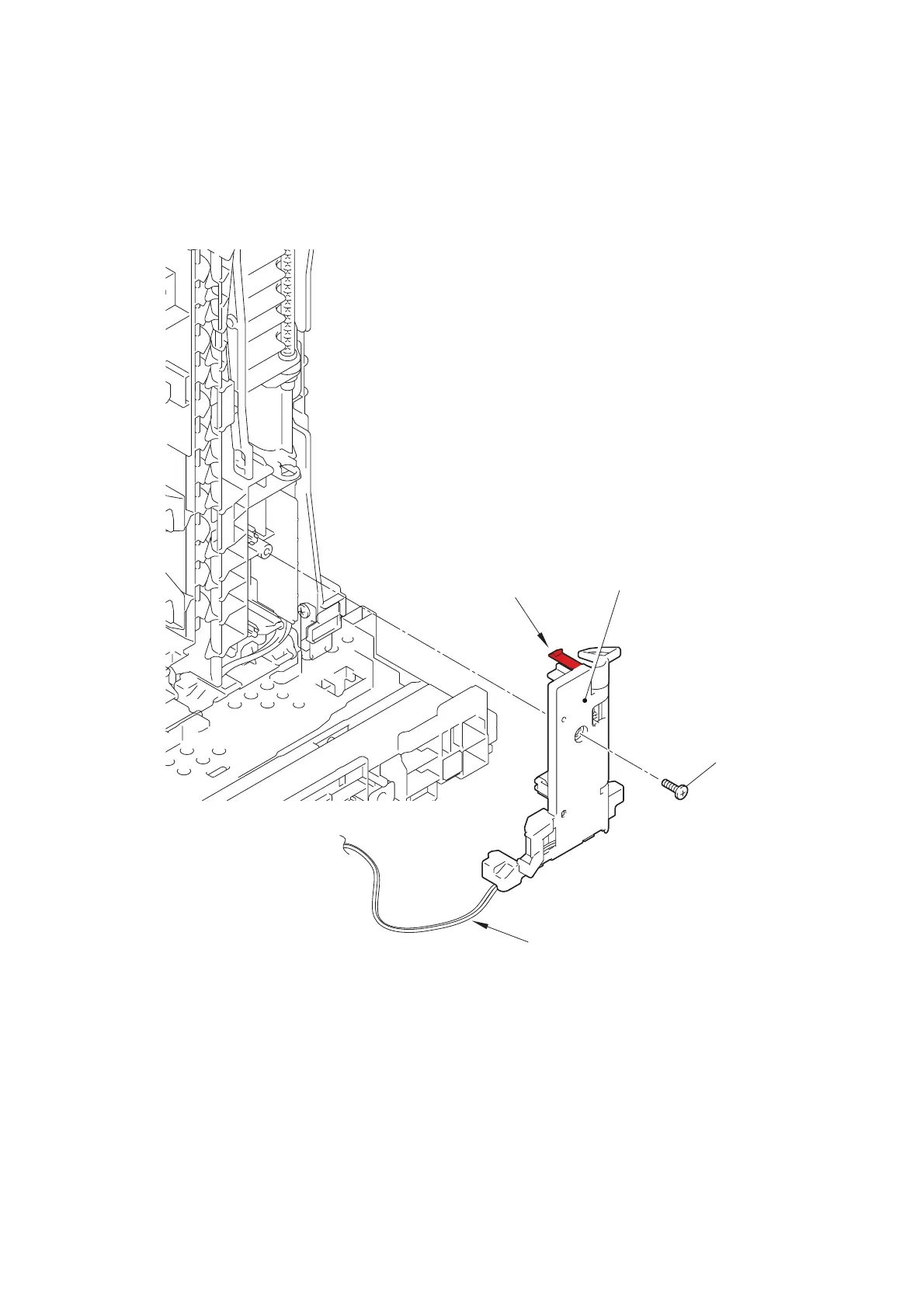

Fig. 3-138
Harness routing: Refer to “4.High-voltage power supply PCB ASSY”.
T1 paper feed actuator holder ASSY
Hook
Taptite bind B M3x10
T1 paper feed sensor harness

Brother MFC-8810DW Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 1200 x 1200 dpi
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 50, 000 pages
Memory	128 MB
Fax Speed	33.6 kbps
Processor	400 MHz
Connectivity	USB, Ethernet, Wi-Fi Direct
Scanning Resolution	Up to 19200 x 19200 dpi (Interpolated)
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Maximum Paper Size	Legal (8.5" x 14")
Print Speed	Up to 40 ppm
