9.15 ADF Unit

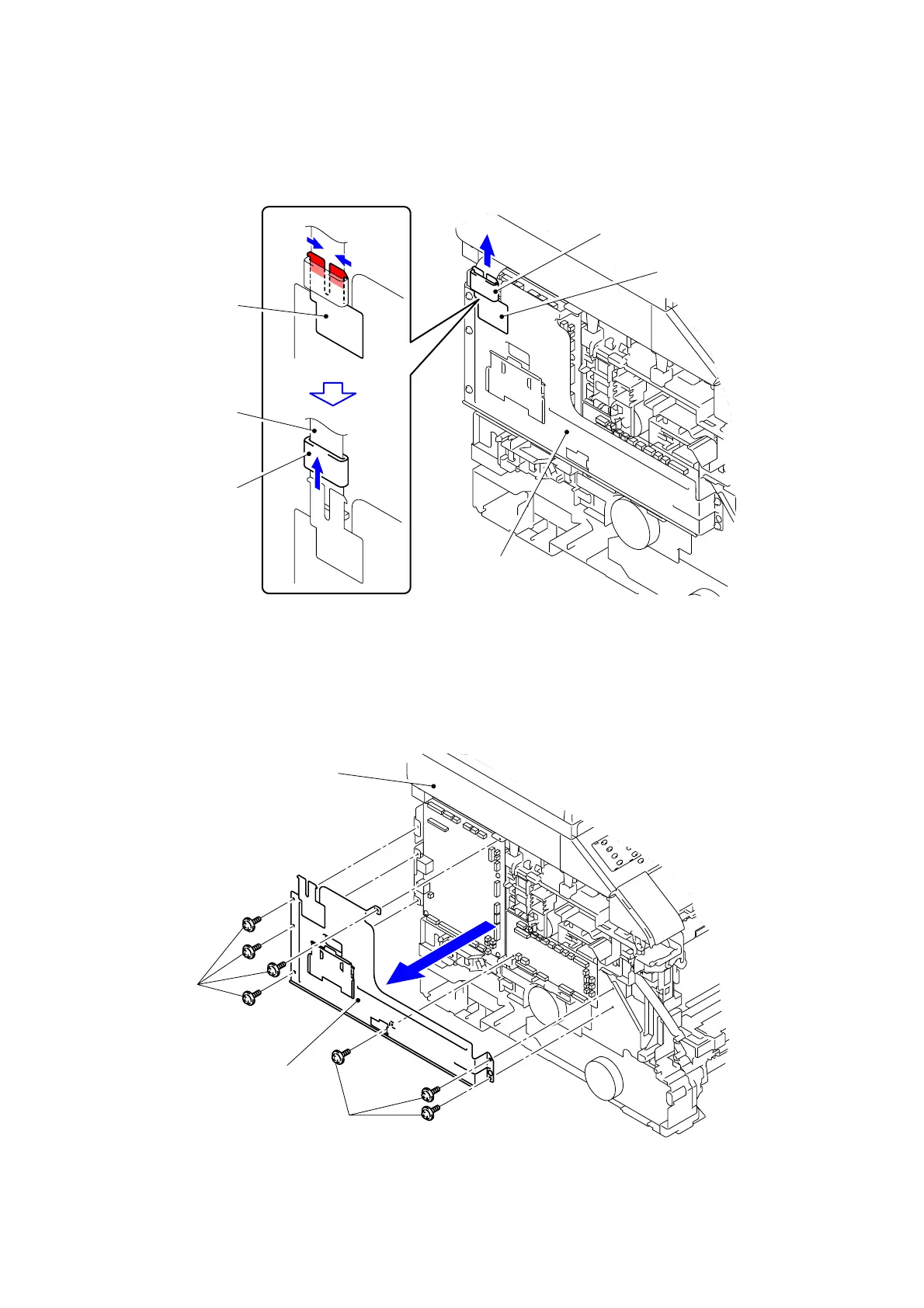

(1) Remove the Ferrite core 1 from the FFC film. (A4 model only)
Fig. 3-60
(2) Remove the seven Taptite cup S M3x6 SR screws to remove the Main shield cover plate
ASSY from the Main body.
Fig. 3-61
FFC film
Ferrite core 1
Main shield cover
plate ASSY
FFC film
Ferrite core 1
Document scanner
unit flat cable
Taptite cup S M3x6 SR
Main body
Main shield cover plate ASSY
Taptite cup S
M3x6 SR
