Brother MFC-9465CDN Service Manual

4-4
Confidential
1.1.3 Rewriting the firmware using USB flash memory
If you save the program files in the USB flash memory drive and plug it into the USB direct
interface, you can rewrite the firmware.
<Procedures>
(1) Save the program files (such as LZXXXX_$.djf) which are necessary for rewriting the
firmware to the USB flash memory.
(2) While the machine is in the ready state, connect the USB flash memory drive to the USB
direct interface on the front of the machine.

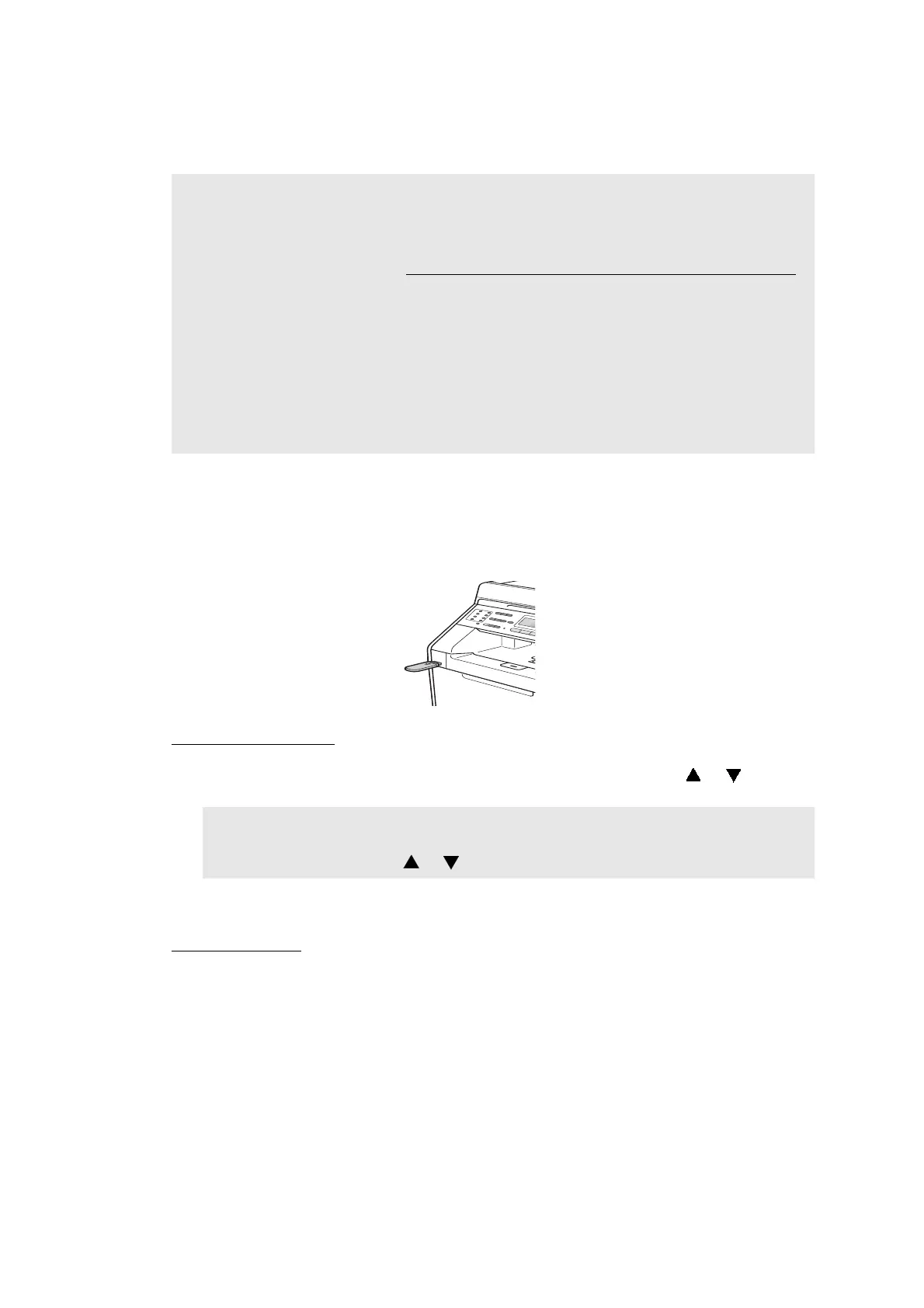

Fig. 4-1
Non Touch panel model
(3) When the machine recognizes the USB flash memory, the names of the files stored in the
USB flash memory are displayed. Select an appropriate file using the or button,
and then press the OK button.
(4) "Program Update/Press Start" appears on the LCD. Press the OK or Start/Black button
to start. "Program Updating" message appears on the LCD with Data LED blinking while
rewriting the firmware. DO NOT turn off the machine.
Touch panel model
(3) Press the Direct Print button on the LCD. The files in the USB flash memory are
displayed on the LCD.
(4) Press the program file you want to update. Then, press the Start/Black button. When
"Program Update/Press START" appears on the LCD, press the OK button to execute
update. While the data is being updated, the Print Data button is blinking and "Program
Updating" is displayed. Be sure not to turn OFF the power of the machine.
(5) When the rewrite is finished, the machine automatically restarts.
(6) If you continue to rewrite other firmware and no file names are displayed, wait for a while,
and take out the USB flash memory and insert it again. When file names are displayed,
select the program files which need to be rewritten, and repeat the above procedures (3)
to (5) to rewrite all the selected program files.
(7) When the rewrite of the main firmware is finished, the machine automatically restarts.
(8) Remove th
e USB flash memory drive from the USB direct interface once the update have finished.
Note:
- You cannot write the firmware using USB flash memory in the Deep Sleep mode. Press
the Start/Black button to clear the Deep Sleep mode before rewriting the firmware.
- Make sure that the USB flash memory drive has enough space to save the program file.
- It is recommendable to rewrite 1) Panel firmware, 2) Sub firmware and 3) Main firmware
in this order.
- If rewriting the firmware using a USB flash memory fails and an error message appears
on the LCD, or no message appears on the LCD, it will be necessary to rewrite the
firmware from a computer using the FILEDG32.EXE. (Refer to "1.1.2 Rewriting the
firmware using computer” in this chapter.)
- (Touch panel model only)
If the Main firmware is the latest version but the Panel firmware is not the latest version,
the error code 0F is displayed on the LCD, and rewriting of the firmware using USB flash
memory becomes impossible. In this case, rewrite the firmware in accordance with "1.1.2
Rewriting the firmware using computer” in this chapter.
Memo:
To print and check the list of data stored in the USB flash memory, display the LCD,
select Index Print using the or button, and then press the OK button.
