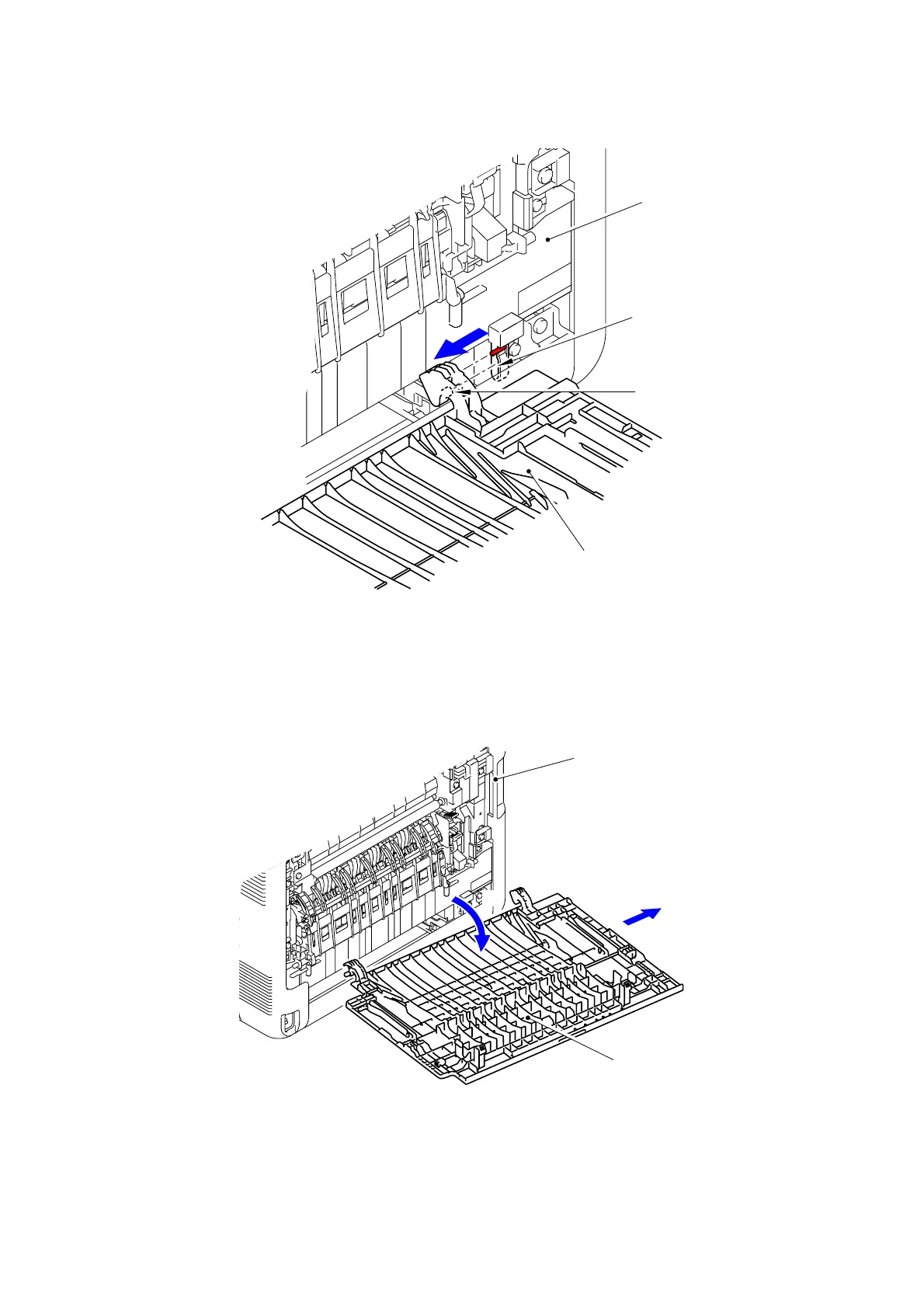

(3) Remove the Shaft of the Back cover from the Bush on the right side of the Main body.
Fig. 7-3
(4) Remove the Back cover.
Fig. 7-4
Main body
Back cover
Bush
Shaft
Main body
Back cove
4a
4b
<Back side>
