Brother MFC-L8600CDW Service Manual

3-180
Confidential

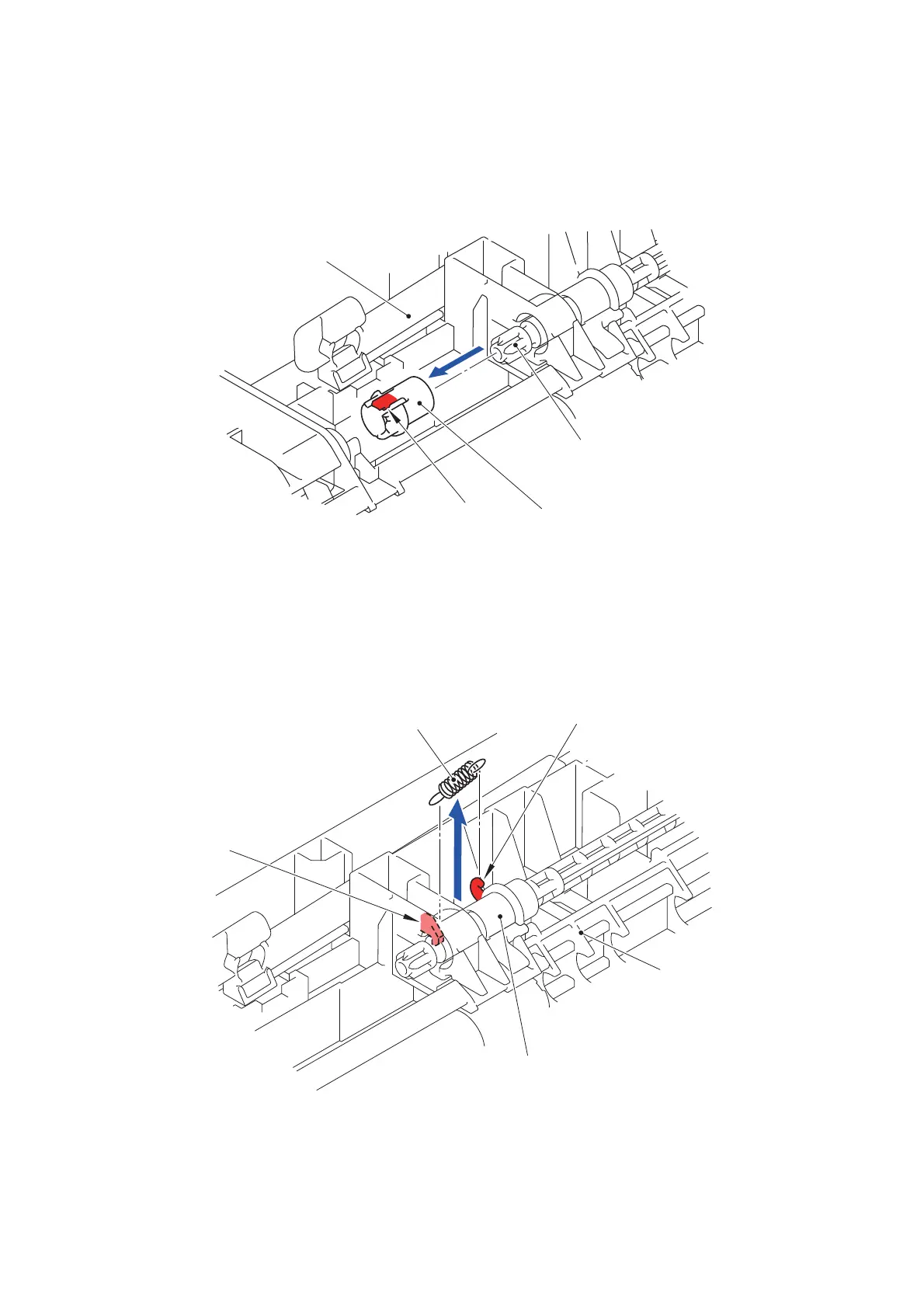

(3) Release the Hook and remove the Separation roller bushing from the T1 drive shaft gear
Z17M07.
Fig. 3-261
(4) Remove the Edge actuator spring from the Hook of the Paper feed unit and the Hook of
the Edge actuator.
Fig. 3-262
Hook
Paper feed unit
MP separation roller bushing
T1 drive shaft gear Z17M07
Hook
Hook
Paper feed unit
Edge actuator spring
Edge actuator

Brother MFC-L8600CDW Specifications

General

Type	all in one
Color	white
Tray Capacity	300
Automatic Document Feeder Capacity	35 sheets
Paper Size	8.5" x 14"
Paper Handling	up to 300 sheets
Color Print Speed	30 pages per minute
Mono Print Speed	30 pages per minute
Print Resolution Color	up to 2400 x 600
Maximum Number of Pages Per Month	up to 40, 000
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Cartridges	tn331bk, tn336bk, tn331y, tn336y, tn331m, tn336m, tn331c, tn336c, dr331cl
Number Of Cartridges	4
Internal Memory	yes
Network	wired, wireless
Connectivity	usb, google cloud print
OS Compatibility	windows, mac os, linux
Mobile Devices Connection	yes

Weight and Dimensions

Height	16.1 inches
Width	19.8 inches
Net Weight	63.5 pounds
