Brother MFC-L8600CDW Service Manual

3-181
Confidential

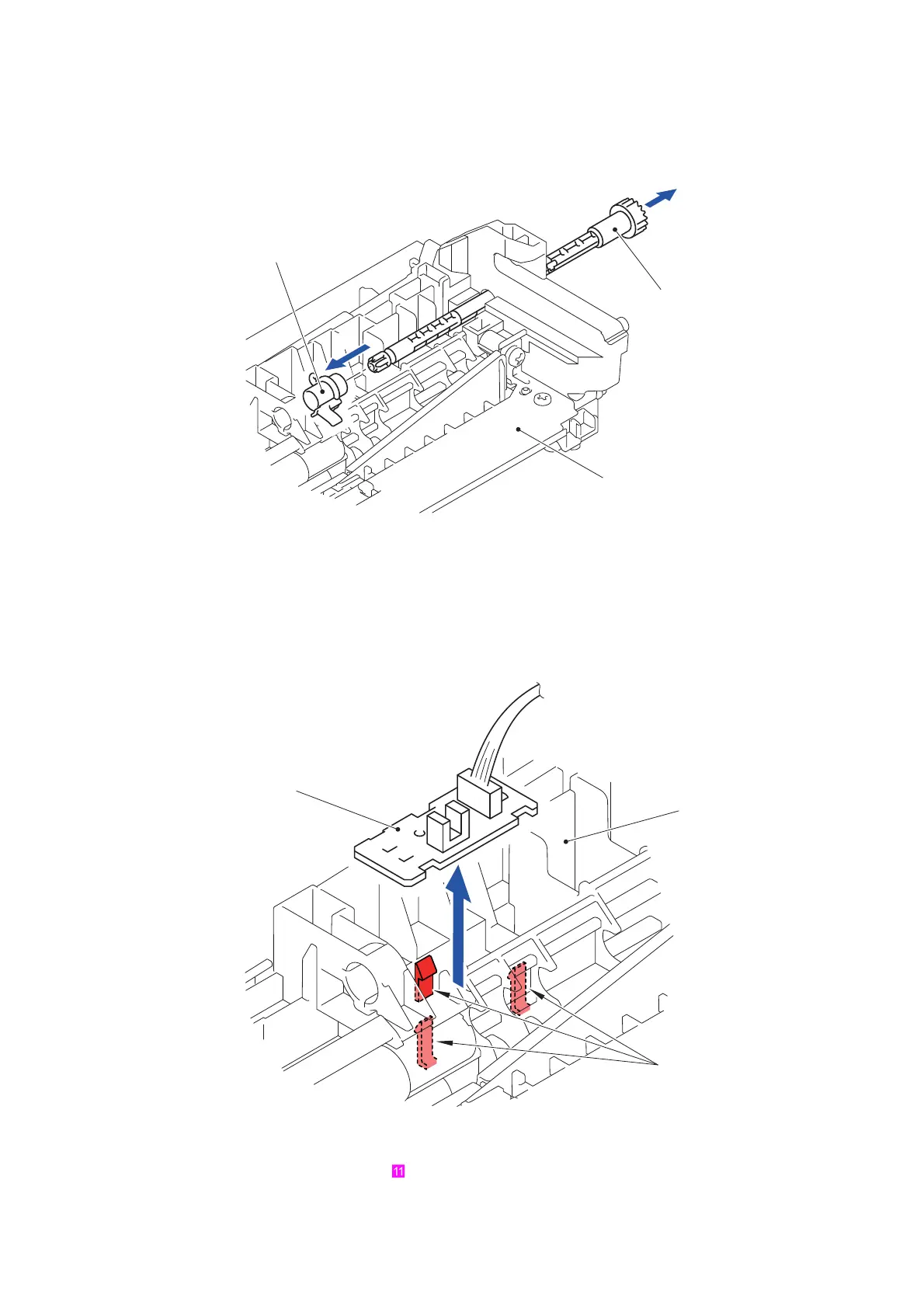

(5) Pull out the T1 drive shaft gear Z17M07 from the Paper feed unit and remove the Edge
actuator.
Fig. 3-263
(6) Release the wiring of the T1 paper feed sensor PCB ASSY.
(7) Release the three Hooks and remove the T1 paper feed sensor PCB ASSY from the
Paper feed unit.
Fig. 3-264
Harness routing: Refer to “ Paper Feed Unit”
Paper feed unit
T1 drive shaft gear Z17M07
5a
5b
Edge actuator
T1 paper feed sensor PCB ASSY
Hook
Paper feed unit

Brother MFC-L8600CDW Specifications

General

Type	all in one
Color	white
Tray Capacity	300
Automatic Document Feeder Capacity	35 sheets
Paper Size	8.5" x 14"
Paper Handling	up to 300 sheets
Color Print Speed	30 pages per minute
Mono Print Speed	30 pages per minute
Print Resolution Color	up to 2400 x 600
Maximum Number of Pages Per Month	up to 40, 000
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Cartridges	tn331bk, tn336bk, tn331y, tn336y, tn331m, tn336m, tn331c, tn336c, dr331cl
Number Of Cartridges	4
Internal Memory	yes
Network	wired, wireless
Connectivity	usb, google cloud print
OS Compatibility	windows, mac os, linux
Mobile Devices Connection	yes

Weight and Dimensions

Height	16.1 inches
Width	19.8 inches
Net Weight	63.5 pounds
