Brother MFC-L8600CDW Service Manual

7-46
Confidential

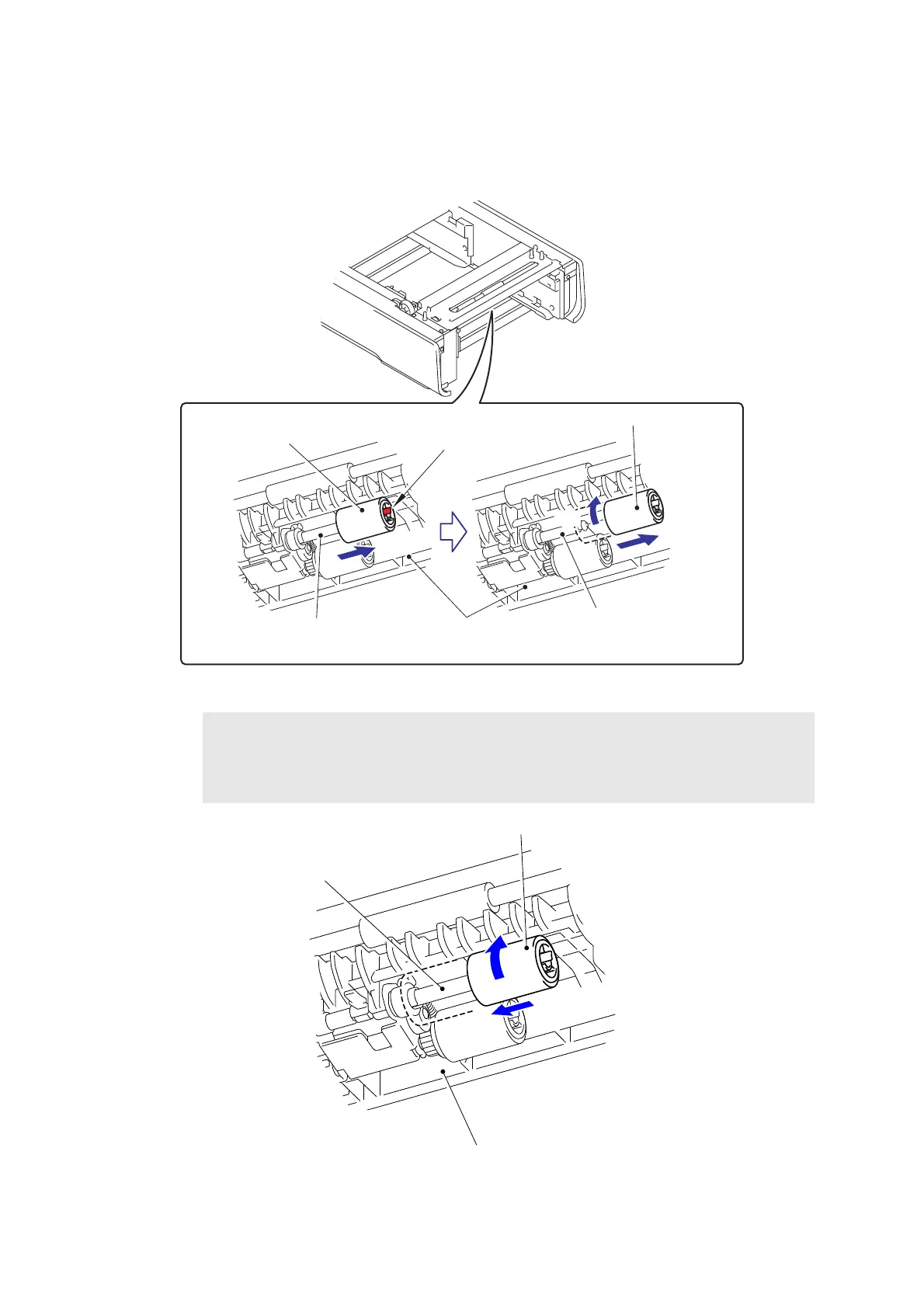

(3) Release the Hook and slide the T2 separation roller ASSY in the direction of the arrow.
(4) Rotate the T2 separation roller ASSY in the direction of the arrow 4a. Remove the T2
separation roller ASSY from the T2 paper feed drive shaft in the direction of the arrow 4b.
Fig. 7-84
Fig. 7-85
Assembling Note:
When assembling the T2 separation roller ASSY, assemble it by sliding it in the
direction of the arrow b as rotating the T2 separation roller ASSY in the direction of the
arrow a.
3
4b
4a
Hook
T2 separation roller ASSY
T2 separation roller ASSY
T2 paper feed drive shaft
T2 paper feed drive shaft
T2 paper feed
frame unit
a
b
T2 separation roller ASSY
T2 paper feed drive shaft
T2 paper feed frame unit

Brother MFC-L8600CDW Specifications

General

Type	all in one
Color	white
Tray Capacity	300
Automatic Document Feeder Capacity	35 sheets
Paper Size	8.5" x 14"
Paper Handling	up to 300 sheets
Color Print Speed	30 pages per minute
Mono Print Speed	30 pages per minute
Print Resolution Color	up to 2400 x 600
Maximum Number of Pages Per Month	up to 40, 000
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Cartridges	tn331bk, tn336bk, tn331y, tn336y, tn331m, tn336m, tn331c, tn336c, dr331cl
Number Of Cartridges	4
Internal Memory	yes
Network	wired, wireless
Connectivity	usb, google cloud print
OS Compatibility	windows, mac os, linux
Mobile Devices Connection	yes

Weight and Dimensions

Height	16.1 inches
Width	19.8 inches
Net Weight	63.5 pounds
