(5) Release the Hook and remove the T2 paper pick-up roller ASSY from the T2 paper feed
drive shaft.

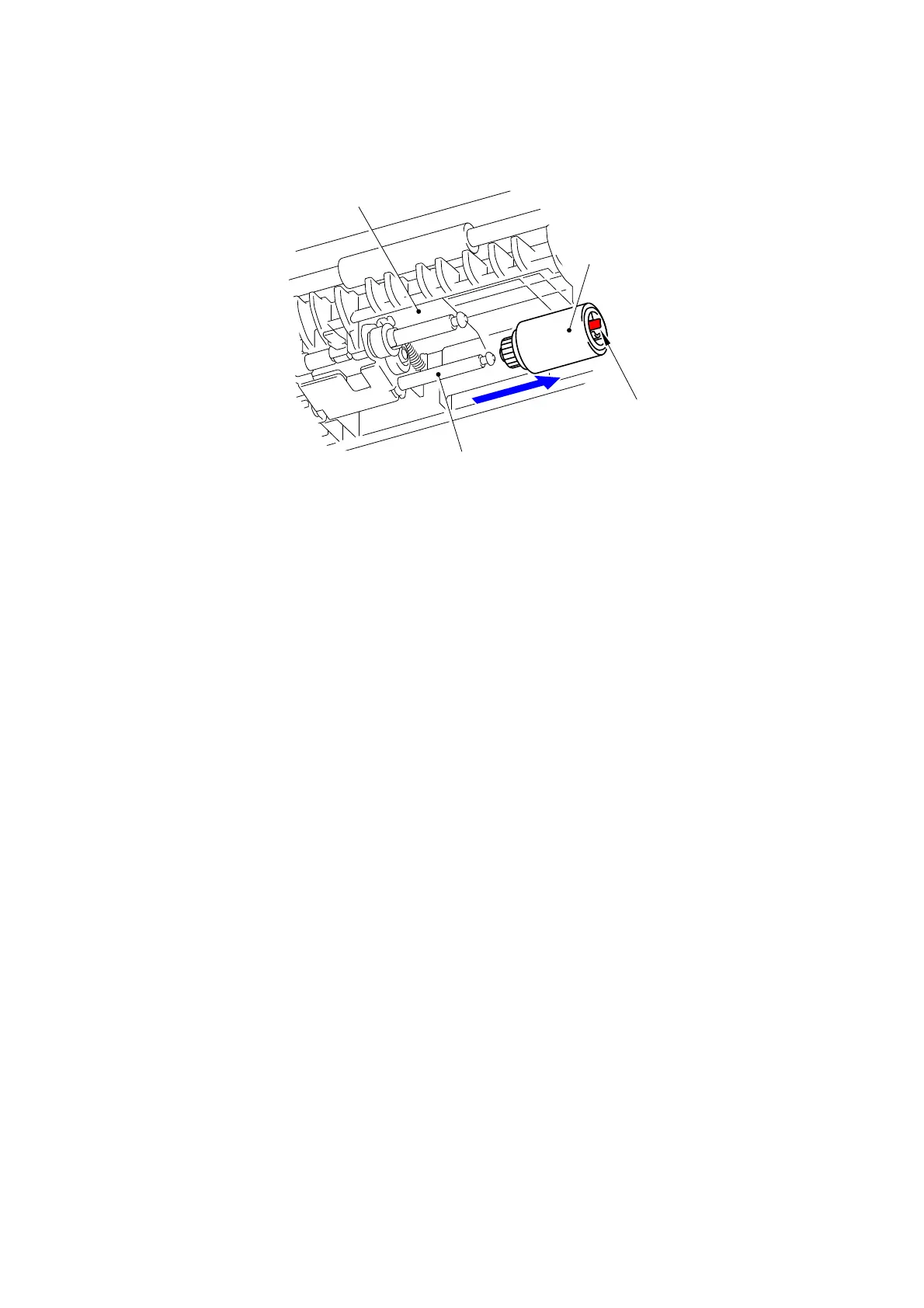

Fig. 7-86
(6) After replacing the PF kit 2, reset the counter. (Refer to “1.3.37 Reset counters for parts
(Function code 88)” in Chapter 5.)
Hook
T2 paper feed frame unit
T2 paper feed drive shaft
T2 paper pick-up roller ASSY
