 GETTING STARTED
General Description
ENGLISH

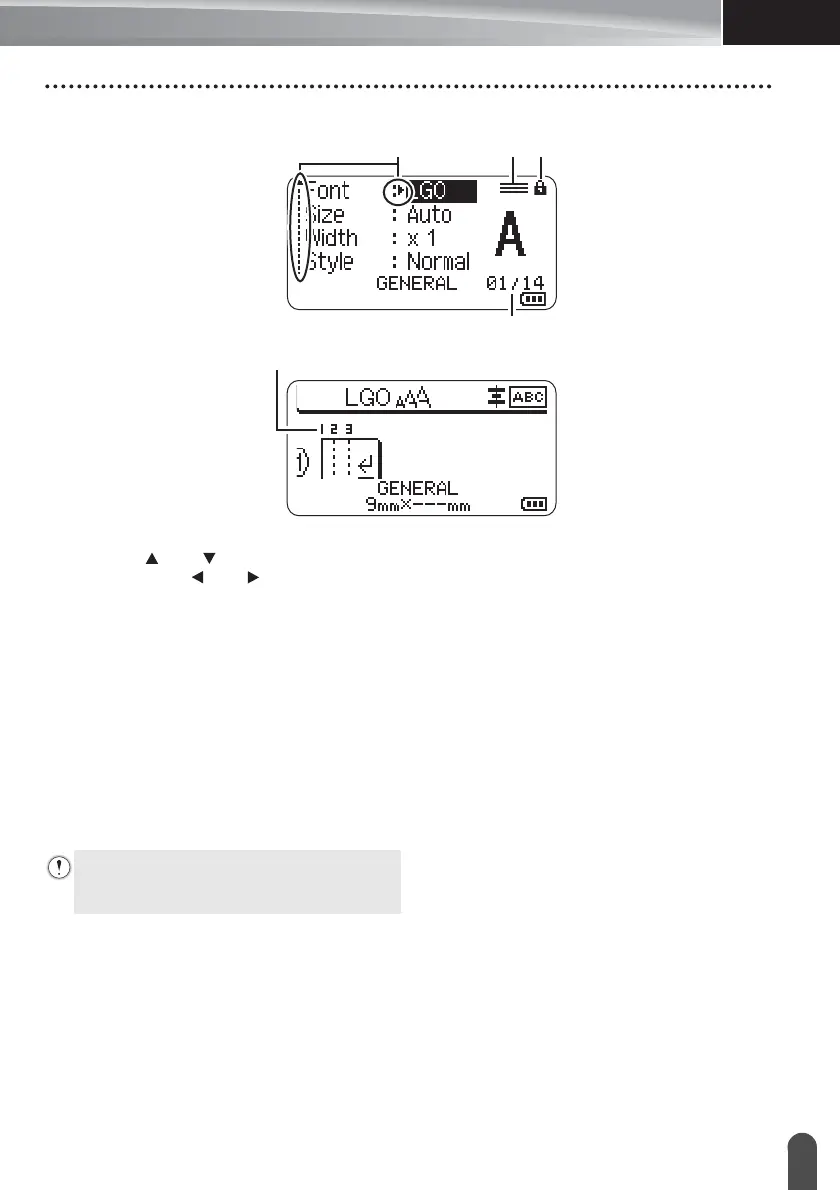

19. Cursor selection
Use the and keys to select menu
items and the and keys to change
the settings.
20. Specified line mark
Indicates that separate settings are
made for each line.
21. Lock mark
Indicates that some items cannot be
changed.
22. Counter
Indicates currently selected number/
selectable number.
23. Block Number
Indicates the block number.
19 21
22
20
23
Refer to “LCD Display” on page 31 for
details on changing the contrast and backlight
settings of the LCD.

Brother P-touch E550W Specifications

General

Print Technology	Thermal transfer
Maximum Tape Width	24 mm
Connectivity	Wi-Fi, USB
Display	LCD
Keyboard	QWERTY
Print Resolution	180 dpi
Print Speed	30 mm/sec
Label Width	3.5 mm - 24 mm
Power Source	AC Adapter
Cutter	Automatic
Weight	1.05 kg
