EDITING A LABEL
35
Selecting a Labelling Application Type

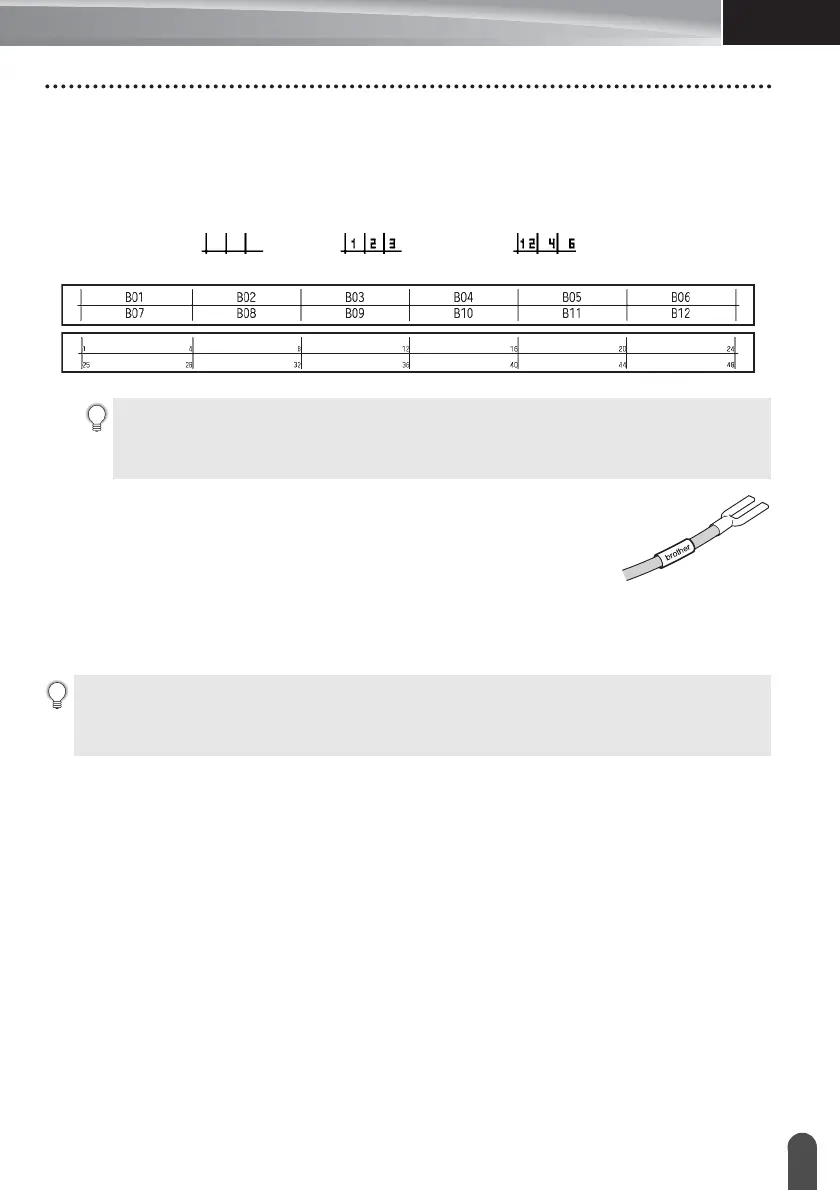

PUNCH-DOWN BLOCK
Labels printed with this mode can be used to identify a type of electrical connection often
used in telephony. There are up to three lines for each block on a single label and you can
enter three lines for each block. In this mode, you can specify the following items.
• Module Width: 200mm, 50mm-300mm
• Block Type: 4 Pairs, 2 Pairs, 3 Pairs, 5 Pairs, Blank
• Sequence Type: (None), (Horizontal), (Backbone)
• Start Value: ---, 1 - 99999
Heat Shrink Tube
When using Heat Shrink Tube, the HEAT-SHRINK TUBE setting screen
will be displayed when any of the labelling application type keys is
pressed.
• Label length: Auto, 25mm-999mm
However, the maximum printing length is 500 mm when using Heat Shrink Tube with a
width of 5.8 or 8.8 mm.
Text: Type in single or multiple lines of data.
• When “Blank” is selected in “Block Type”, “Sequence Type” is set to None.
• When None is selected in “
Sequence Type
”, “Start Value” shows “---” and you cannot set
a value. Selecting Horizontal or Backbone however, allows you to set the “Start Value”
from 1 to 99,999.
When using Heat Shrink Tube:
• You cannot print frames.
• Portions of some decorative characters may be cut off when a line is broken.
• The printed characters may be smaller than when using TZe tape.
To Next Page
