Brother P-touch E550W User Manual

9
 GETTING STARTED
General Description
ENGLISH
8
1
2
3
4
5
6
7
9
10

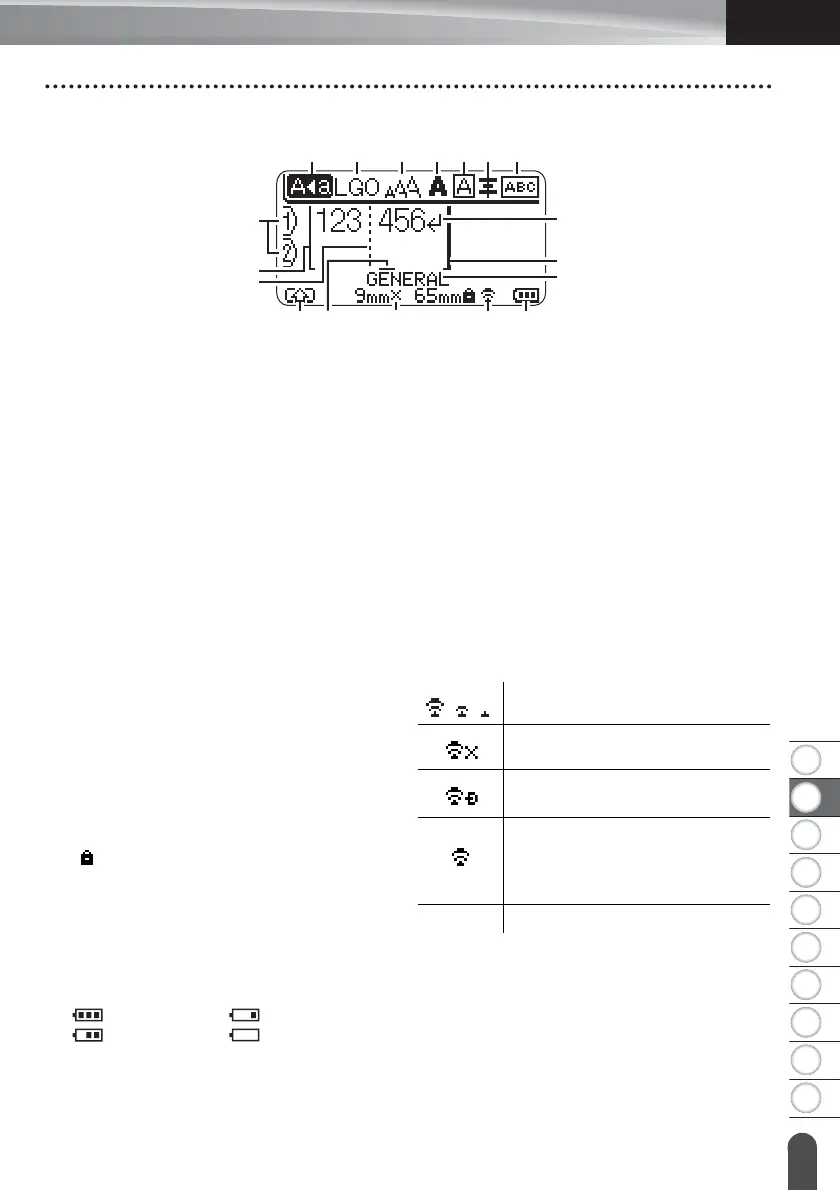

LCD
1. Line number
Indicates the current line number within
the label layout.
2. Shift Mode
Indicates that Shift Mode is on.
3. Start Line/4. End Line
The area between the start and end line
will be printed.
The short lines extending from the start/
end lines show the end of the label
layout.
5. Block Separator Line
Indicates the end of a block.
6. Cursor
Indicates the current data input position.
Characters are entered to the left of the
cursor.
7. Labelling Application Type
Indicates the current label type.
8. Tape size
Indicates the tape size for the text
entered:
Tape width x Label length
If the label length has been specified,
also appears on the right side of the
tape size.
9. Enter/Return
Indicates the end of a line of text.
10. Battery Level
Indicates the remaining battery level
when using the Li-ion battery.
11. Caps Mode
Indicates that Caps Mode is on.
12.-16. Style Icons
Indicate the current font (12), character
size (13), character style (14), frame (15),
and alignment (16) settings.
The alignment icon may not be displayed
depending on the selected label type.
17. Layout guidance
Indicates the orientation, layout,
separator, reverse, and repeated text
settings. The displayed items may vary
depending on the selected label type.
18. Wireless connection
Indicates the current state of the wireless
connection.
6
11 12 13 14 15 17
5
2
3
18
10
16
9
4
7
1
8
- Full
- Half
- Low
- Empty
Connected in WLAN Mode
Disconnected in WLAN Mode
Connected/Disconnected in
Direct Mode
(Blinking)
Establishing connection using
the setup wizard
Establishing connection in
Ad-hoc Mode
(Off) Wireless connection OFF

Brother P-touch E550W Specifications

General

Print Technology	Thermal transfer
Maximum Tape Width	24 mm
Connectivity	Wi-Fi, USB
Display	LCD
Keyboard	QWERTY
Print Resolution	180 dpi
Print Speed	30 mm/sec
Label Width	3.5 mm - 24 mm
Power Source	AC Adapter
Cutter	Automatic
Weight	1.05 kg
