Parts Description 1
Front 1
Setting Up the Label Printer 1

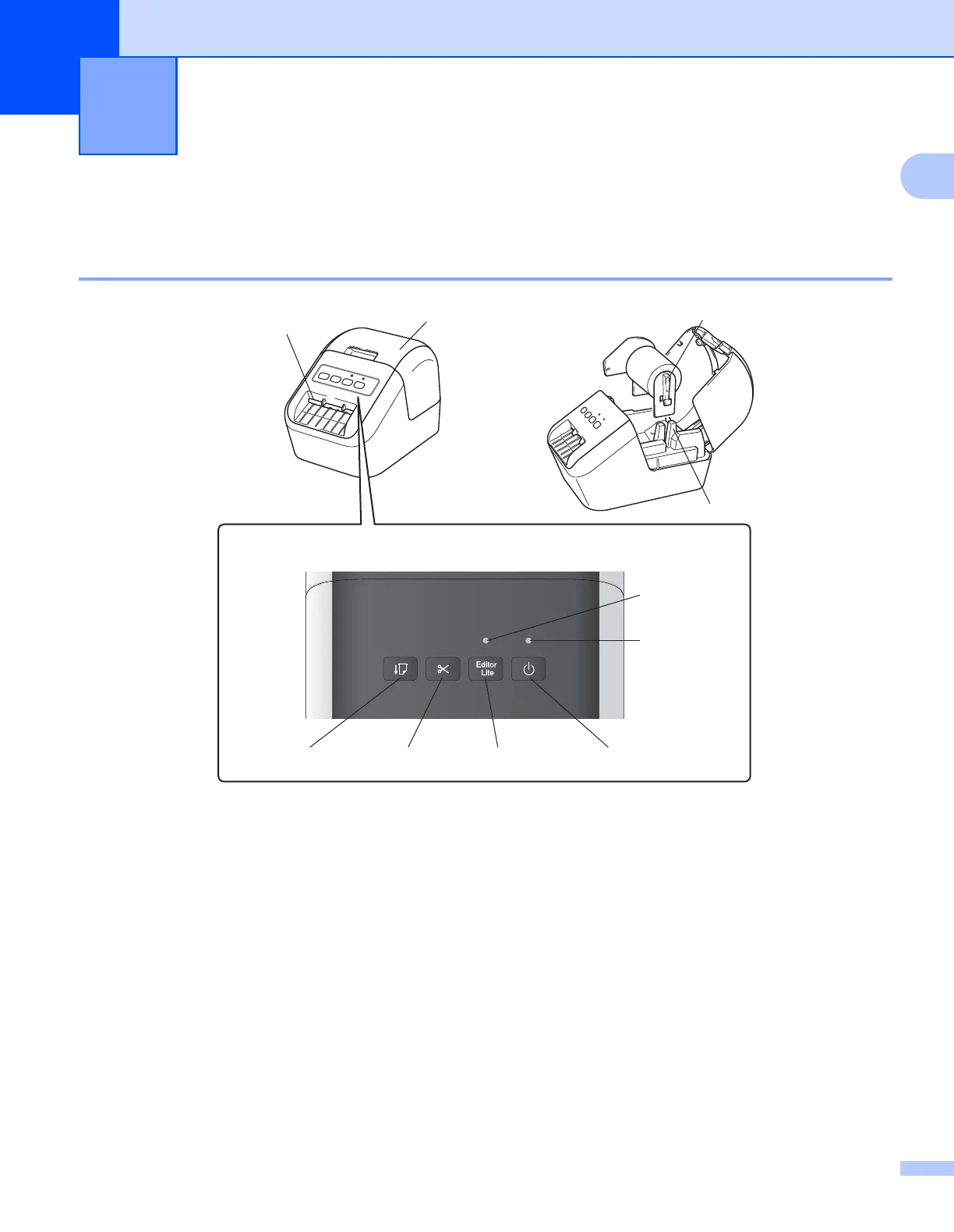

1 Feed Button
2 Cutter Button
3 Editor Lite LED
4 Editor Lite Button
5 Status LED
6 Power Button
7 Label Output Slot
8 DK Roll Compartment Cover
9 Roll Spool Arm
10 Roll Spool Guide
8
7
9
10
4
5
3
6
