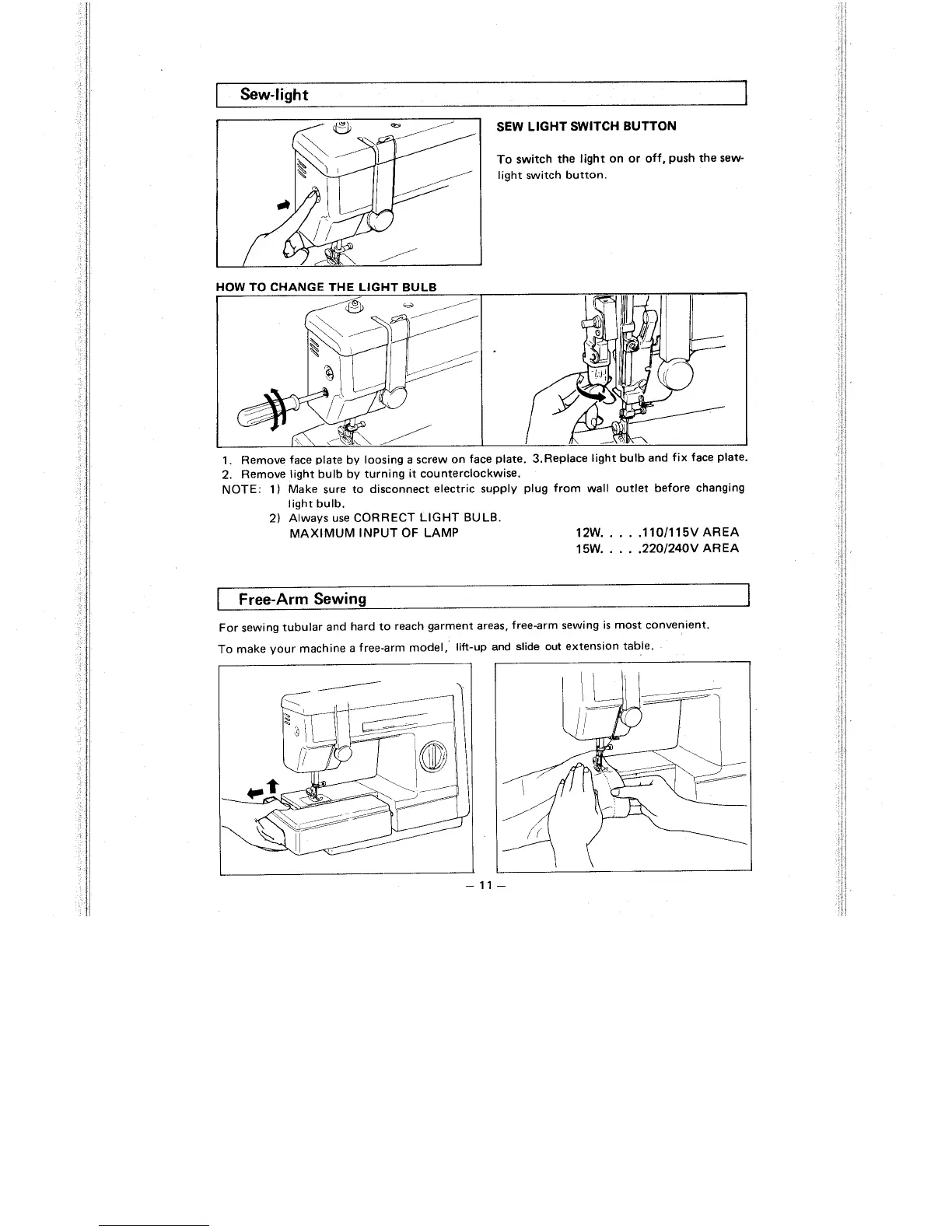

Brother VX883 - Sew Light Switch Button; F R E E - a R M Sewing

SEW LIGHT SWITCH BUTTON
To switch the light on or off, push the sew-
light switch button.
HOW TO CHANGE THE LIGHT BULB
1. Remove face plate by loosing a screw on face plate. 3.Replace light bulb and fix face plate.
2. Remove light bulb by turning it counterclockwise.
NOTE:
1) Make sure to disconnect electric supply plug from wall outlet before changing
light bulb.
2) Always use CORRECT LIGHT BULB.
MAXIMUM INPUT OF LAMP
12W. . . . .1101115V AREA
15W. . . . .220/240V AREA
I Free-Arm Sewing
For sewing tubular and hard to reach garment areas, free-arm sewing is most convenient.
To make your machine a free-arm model,' lift-up and slide out extension table.
- 11 -
