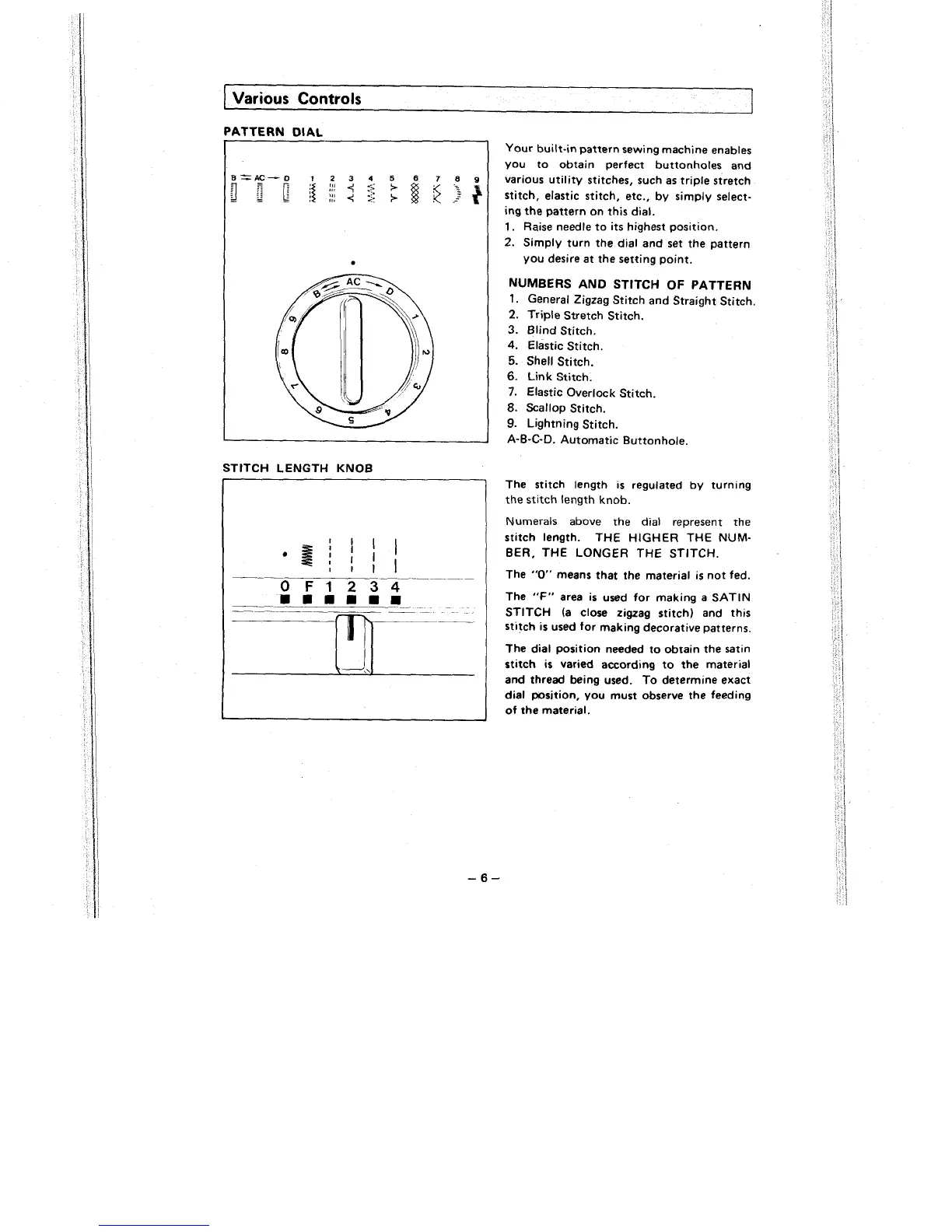

I Various Controls
PATTERN DIAL
8 = AC- o 1 2 3 4 5 6 7 8 9
{ :
. .. ..
: 8 ;;; 4 >;
-=-,
STITCH LENGTH KNOB
Your built-in pattern sewing machine enables
you to obtain perfect buttonholes and
various utility stitches, such as triple stretch
stitch, elastic stitch, etc., by simply select.
ing the pattern on this dial.
1. Raise needle to its highest position.
2. Simply turn the dial and set the pattern
you desire at the setting point.
NUMBERS AND STITCH OF PATTERN
1. General Zigzag Stitch and Straight Stitch.
2. Triple Stretch Stitch.
3. Blind Stitch.
4. Elastic Stitch.
5. Shell Stitch.
6. Link Stitch.
7. Elastic Overlock Stitch.
8. Scallop Stitch.
9. Lightning Stitch.
A-6-C-D. Automatic Buttonhole.
'III
4; 1
-- - - -
0 F1234
Dm.. ID_
--
--
--
The st~tch length IS regulated by turnlng
the st~tch length knob
Numerals above the
dtal represent the
stltch length. THE HIGHER THE NUM-
BER, THE LONGER THE STITCH.
The
"0" means that the mater~al IS not fed.
The
"F" area Is used for maklng a SATIN
STITCH (a close
zlgzag st~tch) and thts
Stltch 1s used for maktng decorattve patterns
The dtal
posltlon needed to obtatn the sattn
stttch IS varted accord~ng to the mater~al
and thread bang used. To determine exact
dtal wsltlon, you must observe the feedlng
of the material.
