Brother VX883 - Upper (Needle) Thread

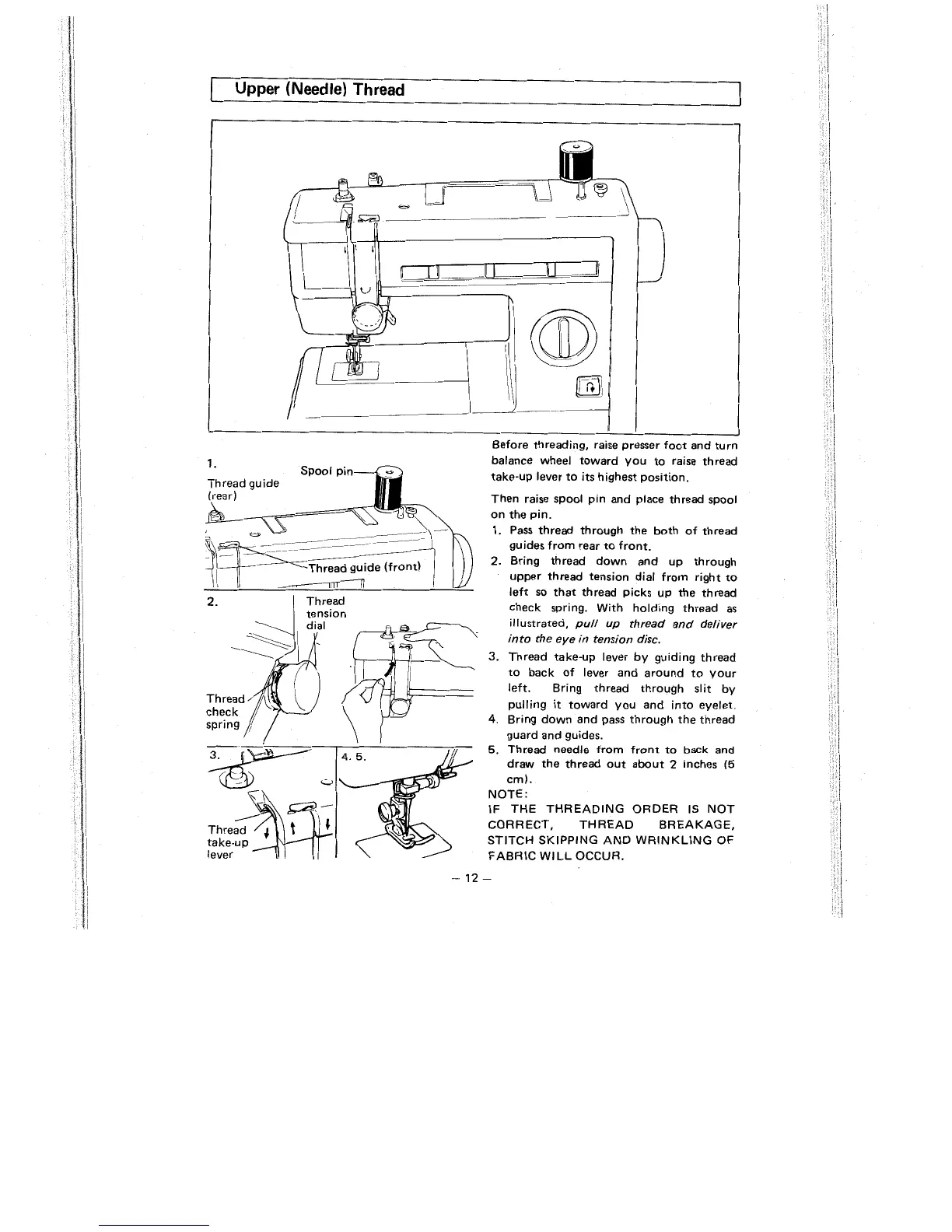

( Upper (Needle) Thread
I
Before threading, raise presser foot and turn
balance wheel toward you to raise thread
take-up lever to its highest position.
Then raise spool pin and place thread spool
on the pin.
1. Pass thread through the both of thread
guides from rear to front.
2. Bring thread down and up through
upper thread tension dial from right to
left so that thread picks up the thread
check spring. With holding thread as
illustrated,
pull up thread and deliver
into the eye in tension disc.
3. Thread take-up lever by guiding thread
to back of lever and around to your
left. Bring thread through slit by
pulling it toward you and into eyelet.
4. Bring down and pass through the thread
guard and guides.
5.
Thread needle from front to back and
draw the thread out about
2 inches (5
cm).
NOTE:
IF THE THREADING ORDER IS NOT
CORRECT, THREAD BREAKAGE,
STITCH SKIPPING AND WRINKLING OF
FABRIC WILL OCCUR.
