ELECTRICAL AND IGNITION
ELECTRIC STARTER SERVICING
6

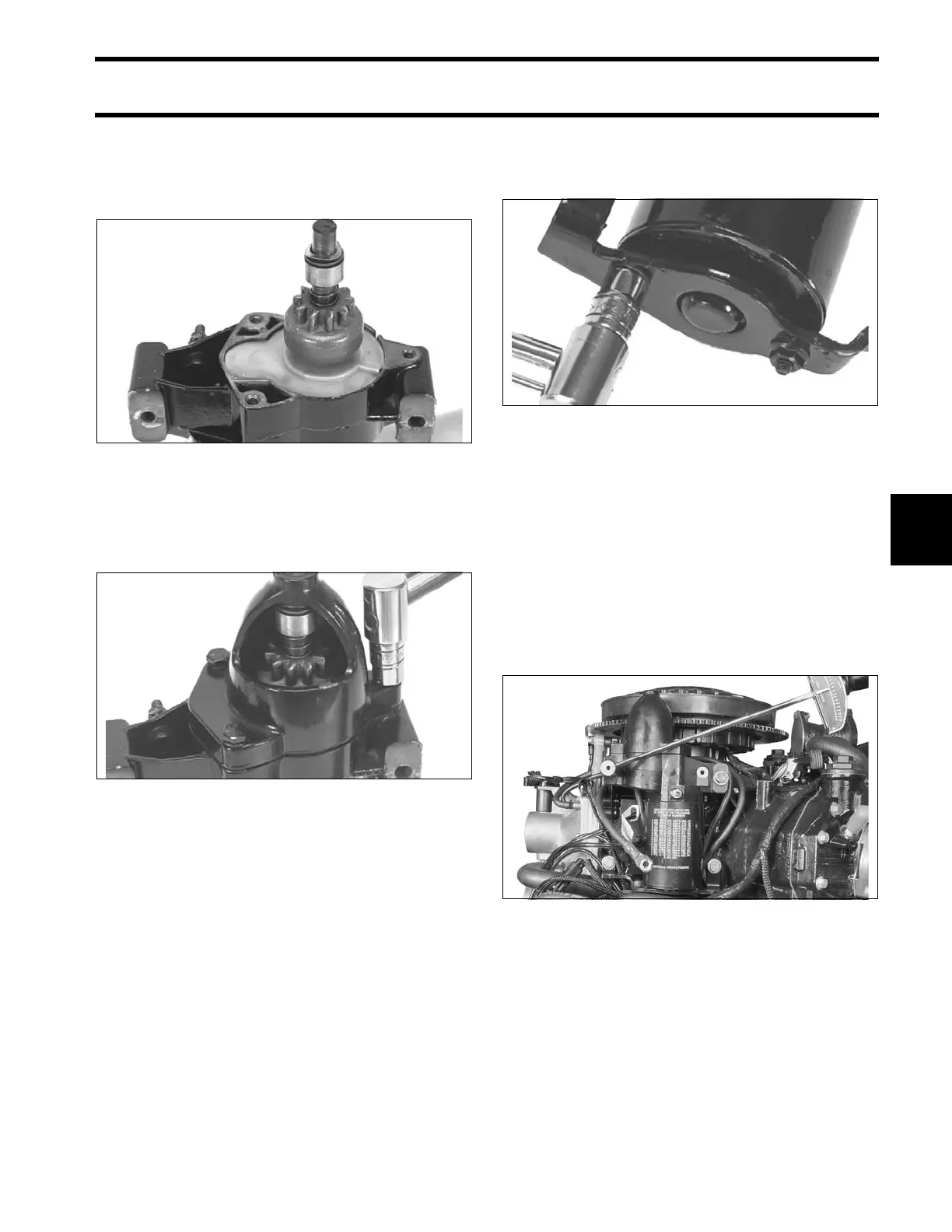

Lightly coat the pinion s haft splines (helix) with
Starter Bendix Lube. Lower th e pinion into place
without disp lacing the driven gear or thrust
washer.
Lightly coat the pini on housing bearing with
Starter Bendix Lube, and install the pinion housing
screws and lock washers. Tighten the screws to a
torque of 60 to 84 in. lbs. (7 to 9.5 N·m).
Install the bracket . Apply Nut Lock to th e th ru-
bolts. Install the nuts and tighten to a torque of 50
to 65 in. lbs. (5.6 to 7.3 N·m).
To test th e assembly and operation of the starter,
refer to No Load Current Draw Test on p. 102.
Starter Installation
Apply Locquic Primer and Nut Lock to the threads
of th e four starter mounting screws. Position th e
starter and install the screws and lock washers.
First, tighten the top two screws, then the bottom
two screws, to a torque of 168 to 192 in. lbs. (19.0
to 21.5 N·m).
Attach starter positive (+) cable to post with lock
washer and nut; tigh ten securely . Coat connec-
tions with Black Neoprene Dip.
