MIDSECTION
EXHAUST HOUSING SERVICE
12
Inspect the wa ter tube fo r obstructions or kinks,
which may restrict water flow.

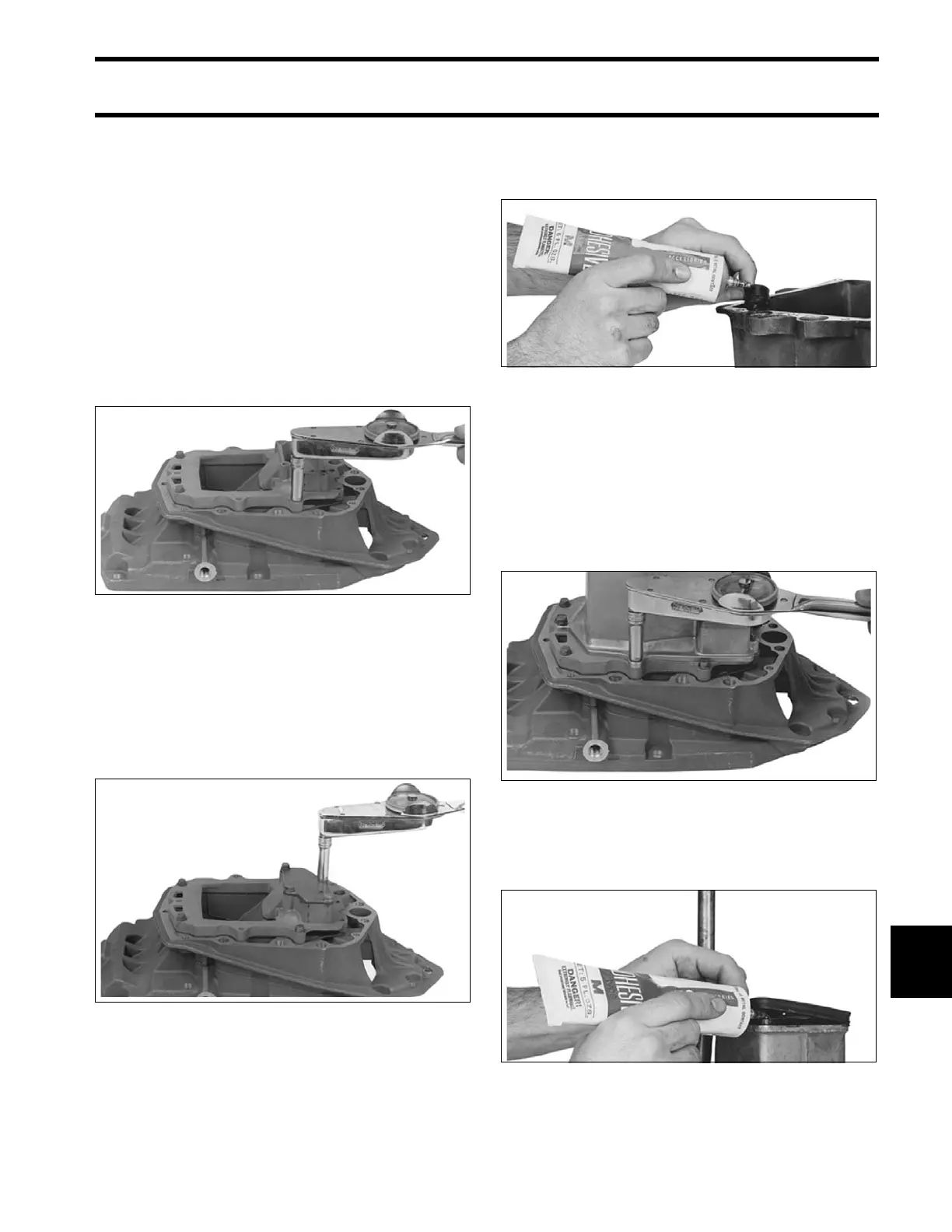

Exhaust Housing Assembly –
3.3 L models
Lightly coat both sides of a n ew gasket with Gas-
ket Sealing Compound and install the gasket and
water plate.
Apply Gasket Sealing Compound to threads of the
water plate retaining screws. Inst all with washe rs
and tighten to a torque of 60 to 84 in. lbs. (7 to 9.5
N·m).
Apply Adhesive 847 to the water p late surface,
then place the cover on the water plate.
Apply Gasket Sealing Compound to thread s of
cover retaining sc rews. Ins tall with washers and
tighten to a torque of 60 to 84 in. lbs. (7 to 9.5
N·m).
Coat the outside diameter o f a n ew water tub e
grommet with Adhesive 847. Install grommet in
the inner exhaust housing. Install the water tube.
Lightly coa t both sides of a ne w inner exhaust
housing ga sket wit h Gasket Sealing Compound
and install it.
Install th e inn er exhaust housing. Co at inn er
exhaust housing screws with Gasket Sealing
Compound and tighten to a torqu e of 60 to 84 in.
lbs. (7 to 9.5 N·m).
Apply Adhesive 847 to t he b ottom fla nge of th e
inner exhaust hou sing. Inst all a new seal. Apply
Triple-Guard grease to outer seal surface.
