ENGINE MANAGEMENT MODULE (EMM)
EMM INPUTS AND OUTPUTS DIAGRAM
4

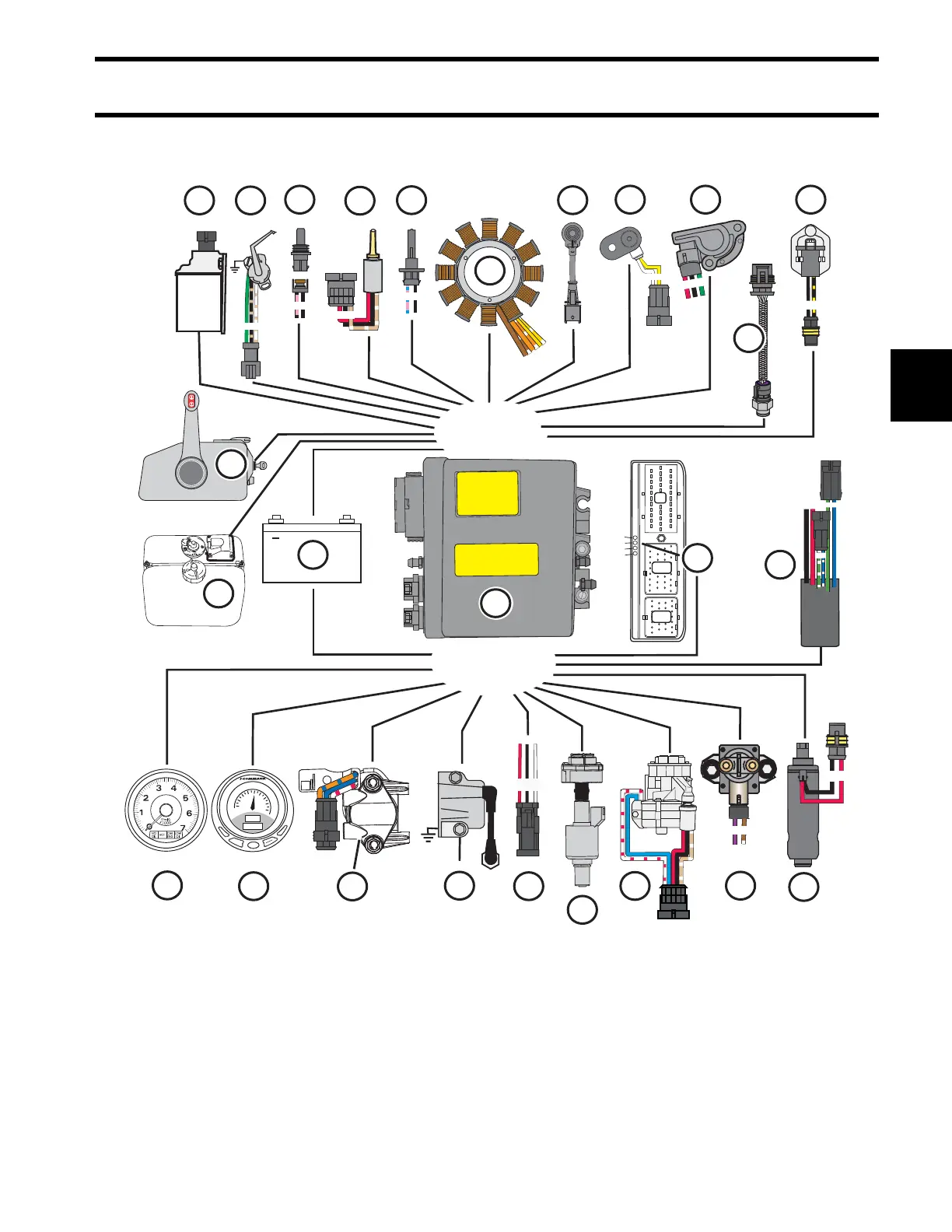

EMM INPUTS AND OUTPUTS DIAGRAM
1. Engine Management Module (EMM)
2. Battery (12 volt)
3. Key switch (switched B+, start signal)
4. Stator
5. Knock sensor
6. Crankshaft Position Sensor (CPS)
7. Throttle Position Sensor (TPS)
8. Shift Interrupt Switch
9. Air Temperature Sensor (AT)
10. Oil Pressure Sensor (component of 18)
11. Engine Temperature Sensor(s)
12. Water in Fuel Sensor / Fuel Filter
13. Trim / Tilt Sending Unit
14. Water Pressure Sensor
w/adaptor harness
15. LED indicators
16. Fuel Pump (high pressure)
17. Starter Solenoid
18. Oil Injection Pump and Manifold
19. Rear Oil Injector and Manifold
20. Ignition Coil
21. Fuel Injector
22. Tachometer/SystemCheck Gauge
23. I-Command (CANbus) Display
24. Diagnostic Connector
25. Trim and Tilt Relay Module
26. Oil Level Switch
+
