300
GEARCASE – STANDARD ROTATION
GEARCASE DISASSEMBLY

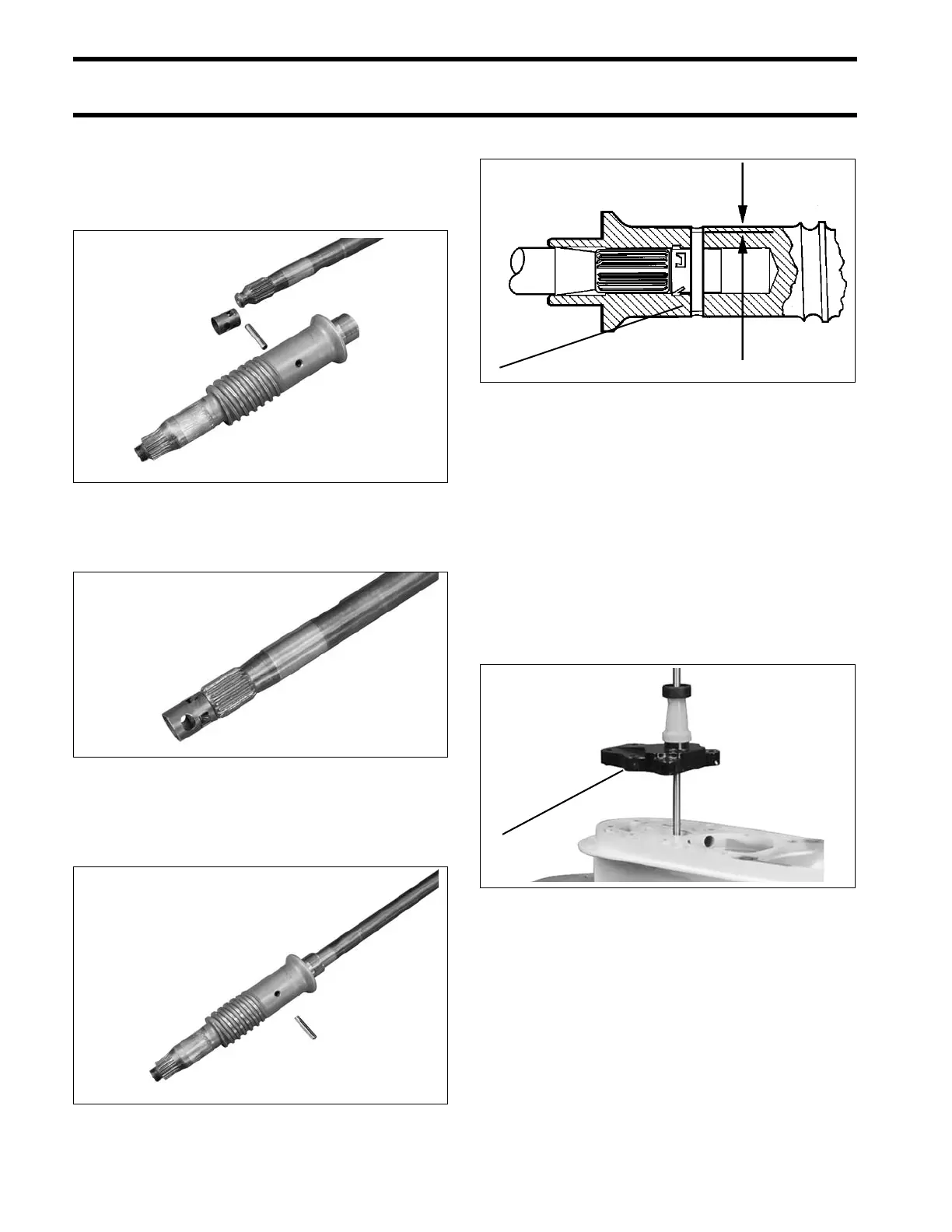

Driveshaft Service
To separate the uppe r driveshaft (if ne eded) from
the lower d riveshaft, remove the roll pin. Replace
the damaged component.
To assemble the driveshaft, install new driveshaft
retainer into the groove of the upper driveshaft.
Install the upp er driveshaf t into the lower drive-
shaft, aligning the holes in the d riveshaft retainer
and the lower driveshaft.
Install the roll pin to the specified dimension.
Shift Housing, Gear, and
Propeller Shaft Removal
Push d own o n t he shift rod. This will move t he
detent leve r downward to clear the inside of t he
gearcase when th e sha ft a ssembly is pulled ou t.
Unscrew the sh ift rod from the deten t lever .
Remove screws, cover , and shif t ro d from t he
gearcase.
Discard the cover gasket. Remove and disca rd
the shift rod O-ring from inside of cover.
006881
006882
006883
1. Roll pin DR4610
1. Cover gasket 006884
