OILING SYSTEM
OIL COMPONENT SERVICING
Install oil pump on bracket with clamp and retain-
ing screw. Tighten to a torque of 24 to 36 in. lbs. (3
to 4 N·m).
Reconnect the electrical connector.
IMPORTANT: Use oil primer bulb to purge air
from oil supply hose before reconnecting hose to
oil pump.
Reconnect oil sup ply hose to the inlet fitting of oil
pump. Fasten with Oetiker clamp.
Make sure oiling system is primed. Check oil flow
through o il d istribution ho ses. Check oil syste m
operation and rou ting o f oil h oses. Refer to OIL
SUPPLY PRIMING on p. 170.
Run the outboard and check for leaks.
Repair any oil leaks an d any kinked or misrou ted
hoses.
Rear Oil Pump
Removal
Disconnect the battery cables at the battery.
Remove engine cover.
Remove the oil supply hose from the fitting (inlet)
of the oil pump.
Disconnect the electrical connector.
IMPORTANT: Note oil distribut ion ho se ro ut-
ings before proceeding with disassembly.
Remove oil distribution hoses from the crankcase
fittings.
Remove two mounting bracket screws.
Remove the oil injection pump assembly.
IMPORTANT: The rear oil pump and manifold is
an assembly and cannot be serviced as individual
components.

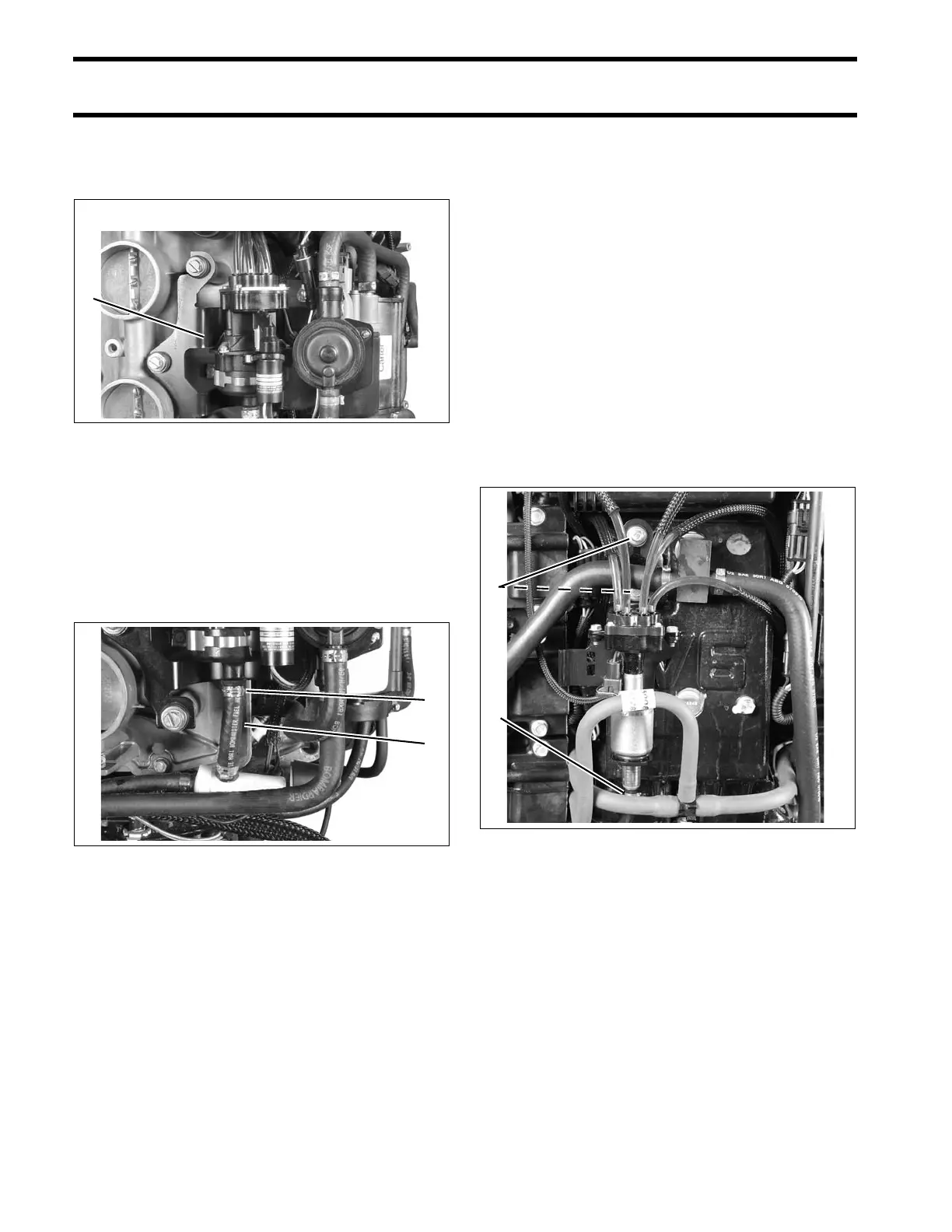

1. Clamp 004220
1. Oil supply hose
2. Oetiker clamp
005519
1. Fitting (inlet)
2. Mounting bracket screws
008444
