OILING SYSTEM
OIL COMPONENT SERVICING
8

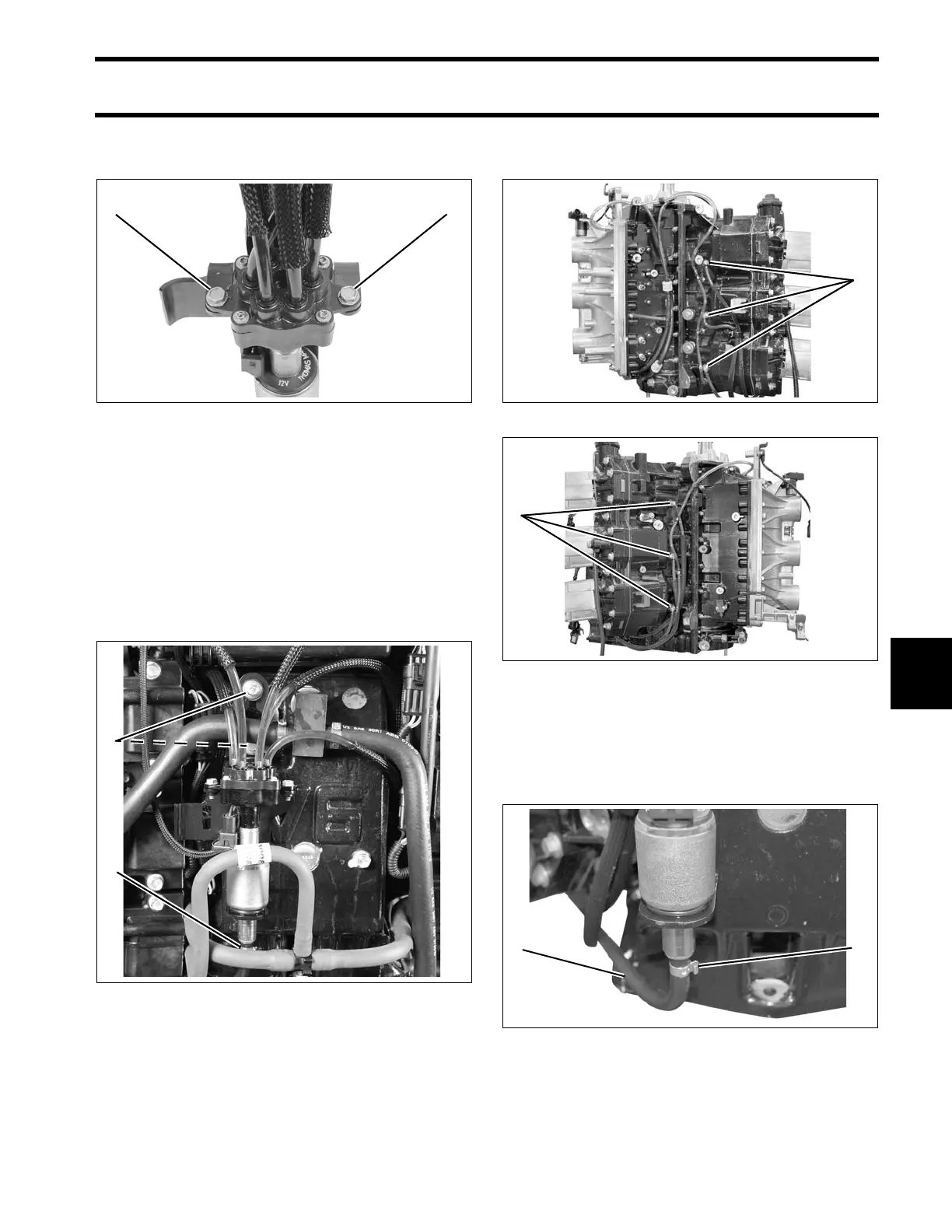

Remove two screws to remove oil pump assembly
from mounting bracket.
Installation
Clean threa ds o f screws an d apply Nut Lock to
threads. Inst all oil pump assemb ly into mounting
bracket with two scre ws. T ighten screws to a
torque of 24 to 36 in. lbs. (2.7 to 4 N·m).
Install the oil injection pump and bracket with two
mounting bra cket screws. T ighten to a torqu e of
60 to 84 in. lbs. (7 to 9.5 N·m).
Route oil distribution hose s from the oil distribu-
tion manifold to the crankcase oil delivery fittings
as they were before removal. Refer to OIL SUP-
PLY DIAGRAMS on p. 158.
Connect oil hoses to cylinder sleeve oil fittings on
the crankcase and fasten with tie straps.
Connect the electrical connector.
Reconnect the oil supply hose to the inlet fitting of
the oil pump. Faste n with Oetiker clamp. Orient
clamp as shown.
Connect the battery cables at the battery.
1. Screws 008476
1. Fitting (inlet)
2. Mounting bracket screws
008444
1. Cylinder sleeve oil fittings – port 008456
1. Cylinder sleeve oil fittings – stbd 008457
1. Oil supply hose
2. Oetiker clamp
008477
