FUEL SYSTEM
FUEL COMPONENT SERVICING

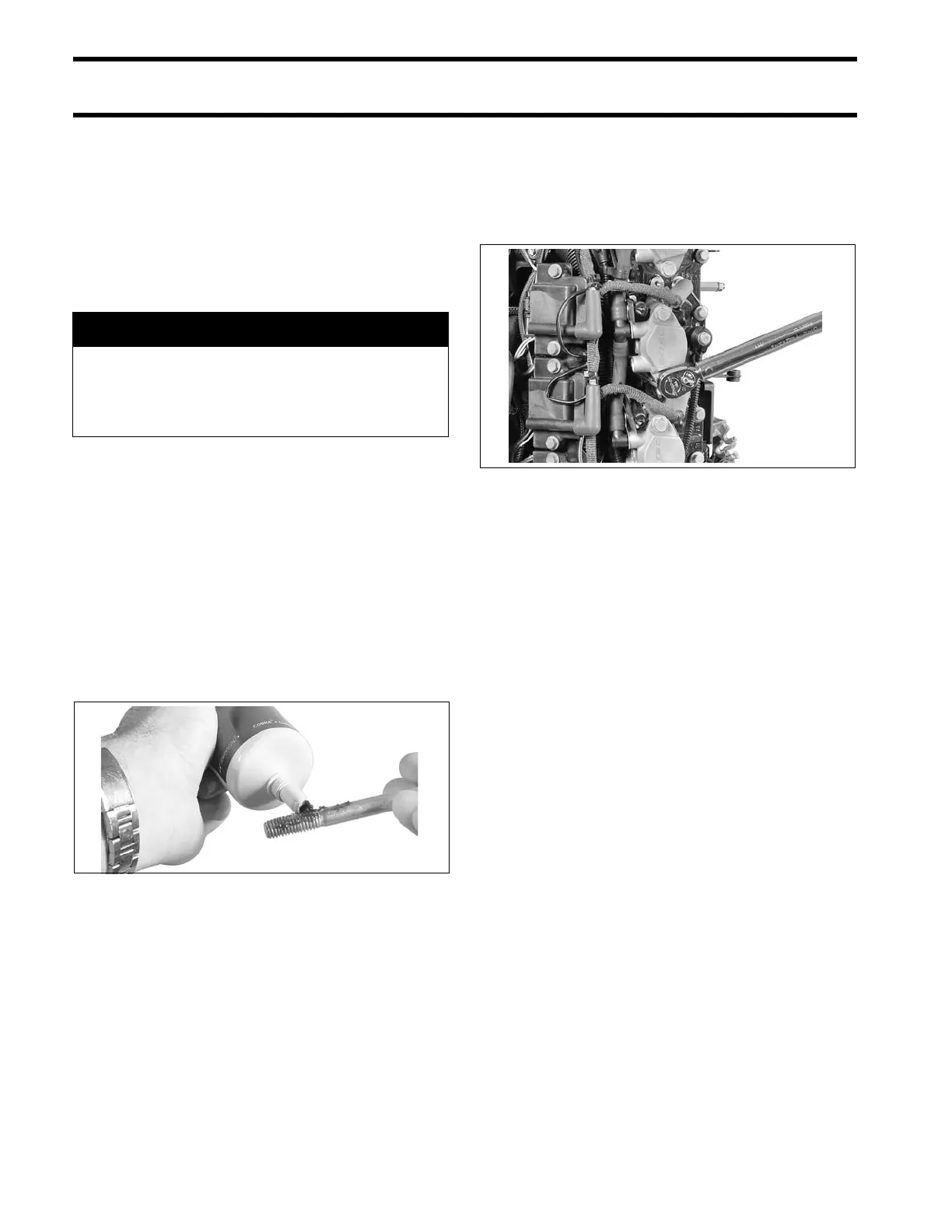

Install Injector
The followin g it ems and their mating su rfaces
must be cleaned before reassembly:
Injector
Cylinder head
Adapter
Screws
Threaded areas
Place injector an d insulator in t he proper cylinder
location.
IMPORTANT: Be careful not to pinch any wiring
or hoses during assembly.
Lubricate mounting screw threads and und er the
head of the screw with a light coat of Triple-Guard
grease. Install washers (on e per screw) on injec-
tor ret aining screws. I nstall screws and washers
through mounting flange of injector and into cylin-
der head.
Tighten screws in st ages, st arting with the lower
screw.
First torque is 5 ft. lbs. (7 N·m)
Second torque is 10 ft. lbs. (14 N·m)
Final torque is 24 to 26 ft. lbs. (33 to 35 N·m).
Reconnect fuel injector electrical connectors.
Install fuel manifolds. Refer to Fuel Manifold Ser-
vice on p. 146.
A CAUTION
All injector compon ents must be clean to
ensure correct torque tig htening specifi-
cations. To prevent fuel leaka ge, carefully
follow these installation instructions.
002316
Tighten Screws in Stages 007210
