350
TRIM AND TILT
TRIM AND TILT SERVICE

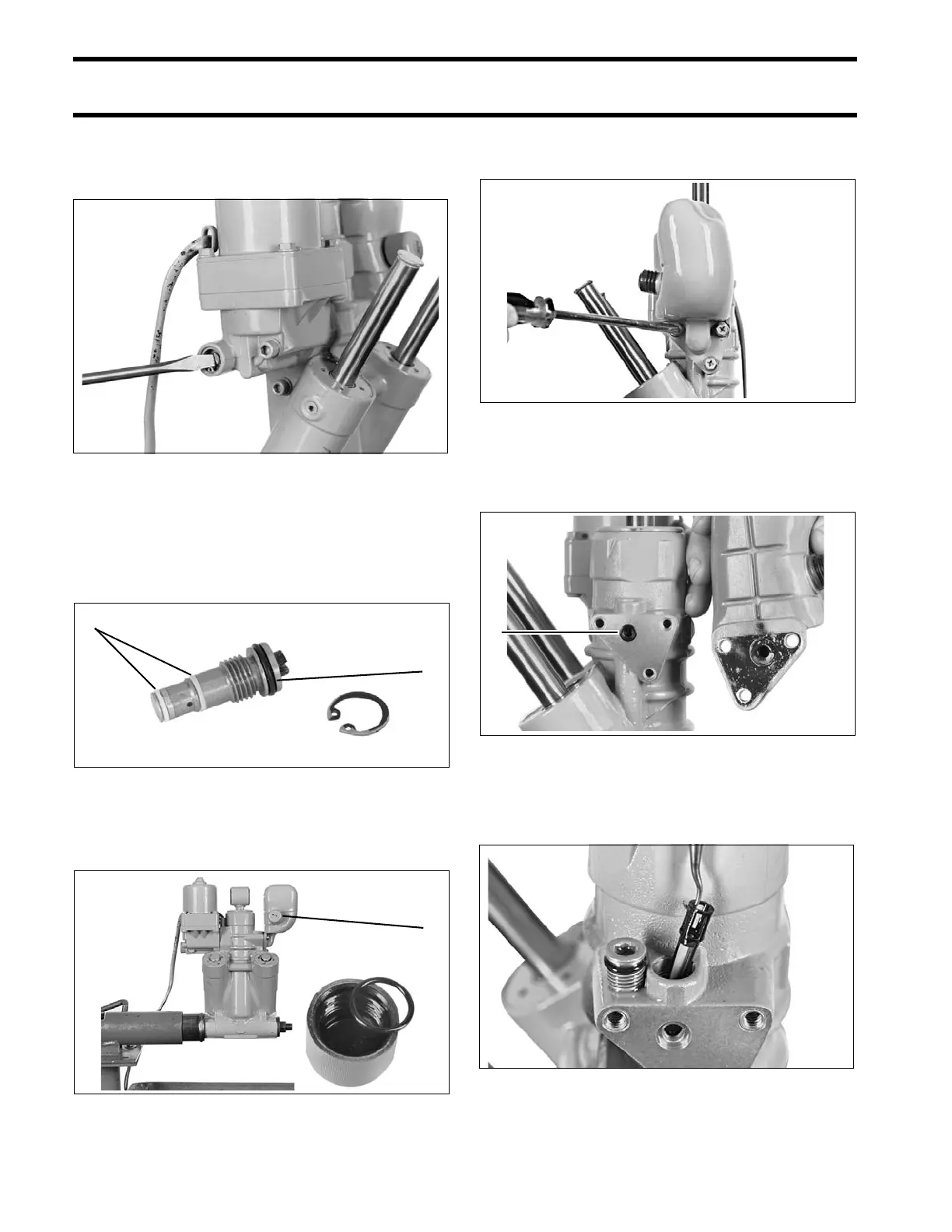

Screw the man ual rele ase valve in. Remo ve the
retaining ring using re taining ring pliers. Remove
the manual release valve.
Inspect O-ring and two pl astic split rings on the
manual rele ase valve for nicks and cuts. Inspect
tip of valve for damage. The two plastic split rings
are not available separately. If rings are damaged,
replace the manual release valve.
Remove reservoir ca p an d dra in th e fluid into a
container. Inspect the O-ring in the cap.
Remove the three Pozidriv sc rews securing the
reservoir to cylinder body. Remove reservoir.
Remove the reservoir O-ring from the cylinder
body. Check the machined surfaces fo r nicks and
scratches.
Use a 6 mm hex wren ch to remove the plug from
the cylinder body. Inspect the O-ring and the filter.
Replace, if necessary.
41739
1. O-ring
2. Plastic split rings
22863
1. Reservoir cap 41736
41751
41753
1. O-ring 41759
41787
