Outboard Rigging
Buss Cable, Hoses, and Wire Routing and Connections
69
3
4

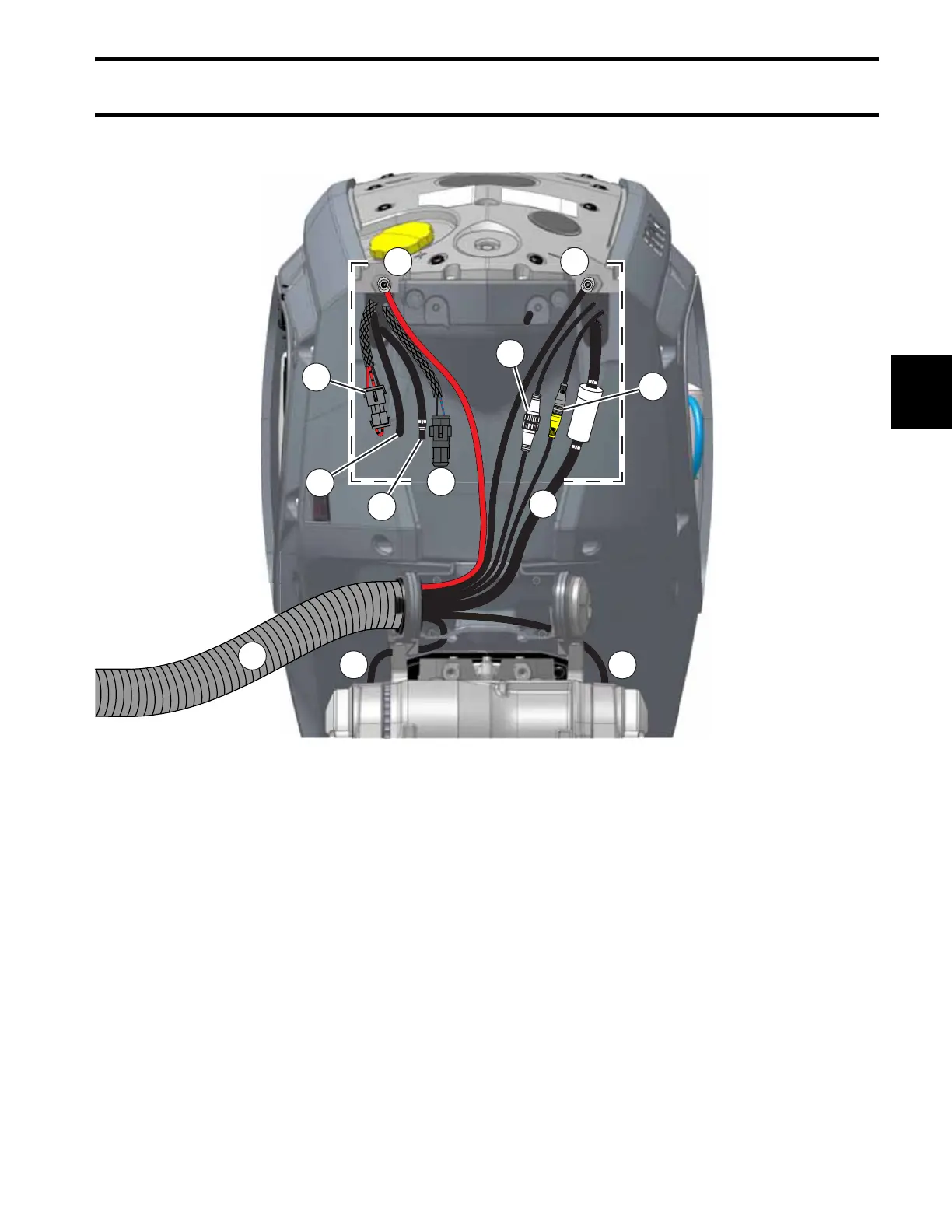

Rigging Center Connections, 66° V6 Models
Rigging Center (Full Featured Model Shown)
1. Flexible Conduit
2. Starboard Steering Hose
3. Port Steering Hose
4. Fuel Supply Hose
5. Remote Control Network Cable
6. NMEA 2000 Network Cable
7. Negative (–) Battery Stud
8. Positive (+)Battery Stud
9. Auxiliary Battery Charge Connector (optional)
10. Engine Flushing Hose (optional)
11. Remote Oil Tank Oil Hose (optional)
12. Remote Oil Tank Electrical Connector (optional)
