Outboard Rigging
Buss Cable, Hoses, and Wire Routing and Connections

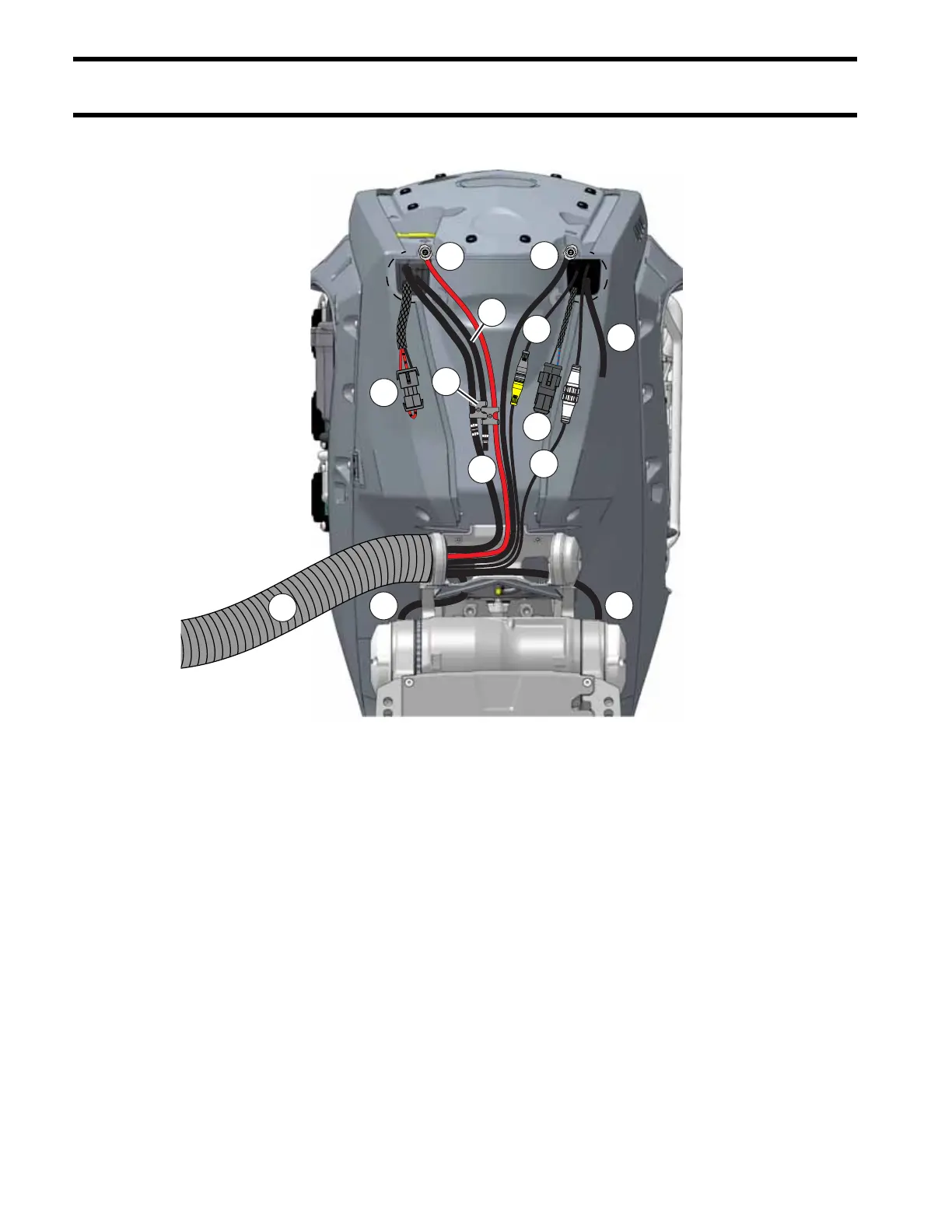

Rigging Center Connections,74° V6 Models
Rigging Center
1. Rigging Hose/Flexible Conduit
2. Starboard Steering Hose
3. Port Steering Hose
4. Positive (+)Battery Stud
5. Negative (–) Battery Stud
6. NMEA 2000 Network Cable
7. Remote Control Network Cable
8. Engine Flushing Hose (optional)
9. Remote Oil Tank Electrical Connector (optional)
10. Auxiliary Battery Charge Connector (optional)
11. Fuel Supply Hose
12. Remote Oil Tank Oil Hose (optional)
13. Clips, P/N 352531, see “Hose and Cable Clips” on page 71
009118
1
4
5
10
11
12
8
6
7
9
3
2
13
