AUTO-LUBE PUMP
WARNING
Personal Protective Clothing
You must wear appropriate protective equipment when operating and servicing the
equipment.
Environment
Ensure that all Lubricants are responsibly disposed of in accordance with the
manufacturers MSDS sheets and local regulations.
Adjusting Timer Settings
The factory setting of the V Range auto-lube pumps is set to a delay period of 15 minutes. This
is the optimum setting for application, but if required the setting can be changed by following the
procedure below.

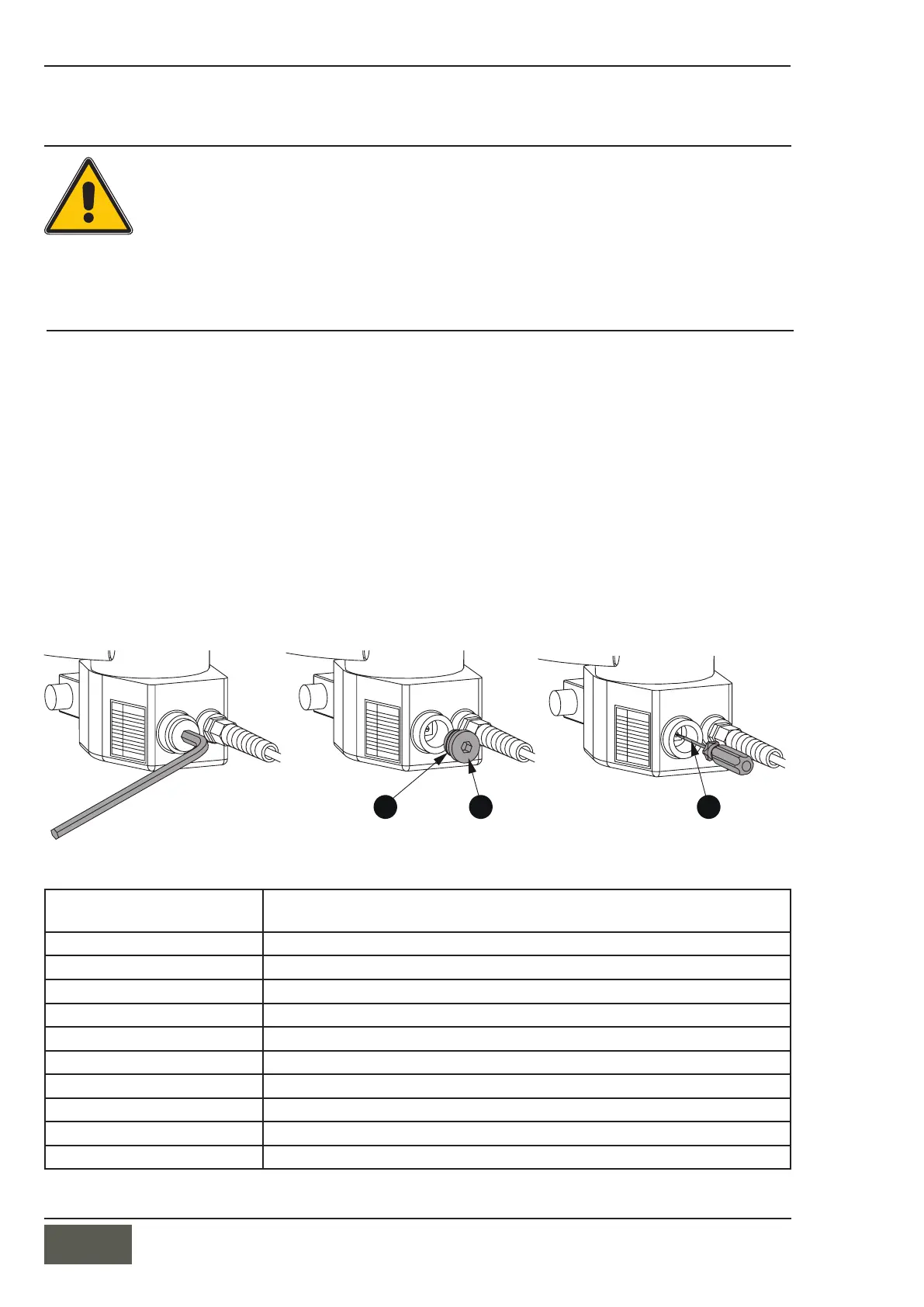

Access the internal PCB and adjust the run settings, via the rotary switch:
1. Disconnect power to the pump.
2. Using 8mm Hex Key remove blanking plug (A). Retain O-ring on the blanking plug (B).
3. Access PCB and adjust rotary switch as required using small flat blade screwdriver (C).
4. Re-assemble, ensuring the O-ring is correctly fitted on the blanking plug. Torque to 5.0Nm.
5. Reconnect power to the pump.
Switch Position
Pump Delay
(*Followed by 1 min 8 sec run time)
0 No Delay, continuous run at 1.8 RPM
1 No Delay, continuous run at 0.9 RPM
2 3 Minutes *
3 7 Minutes *
4 11 Minutes *
5 15 Minutes *
6 19 Minutes *
7 24 Minutes *
8 30 Minutes *
9 36 Minutes *
