3.2.2 Rear view
1
2
4
3
5
6
7
8
9

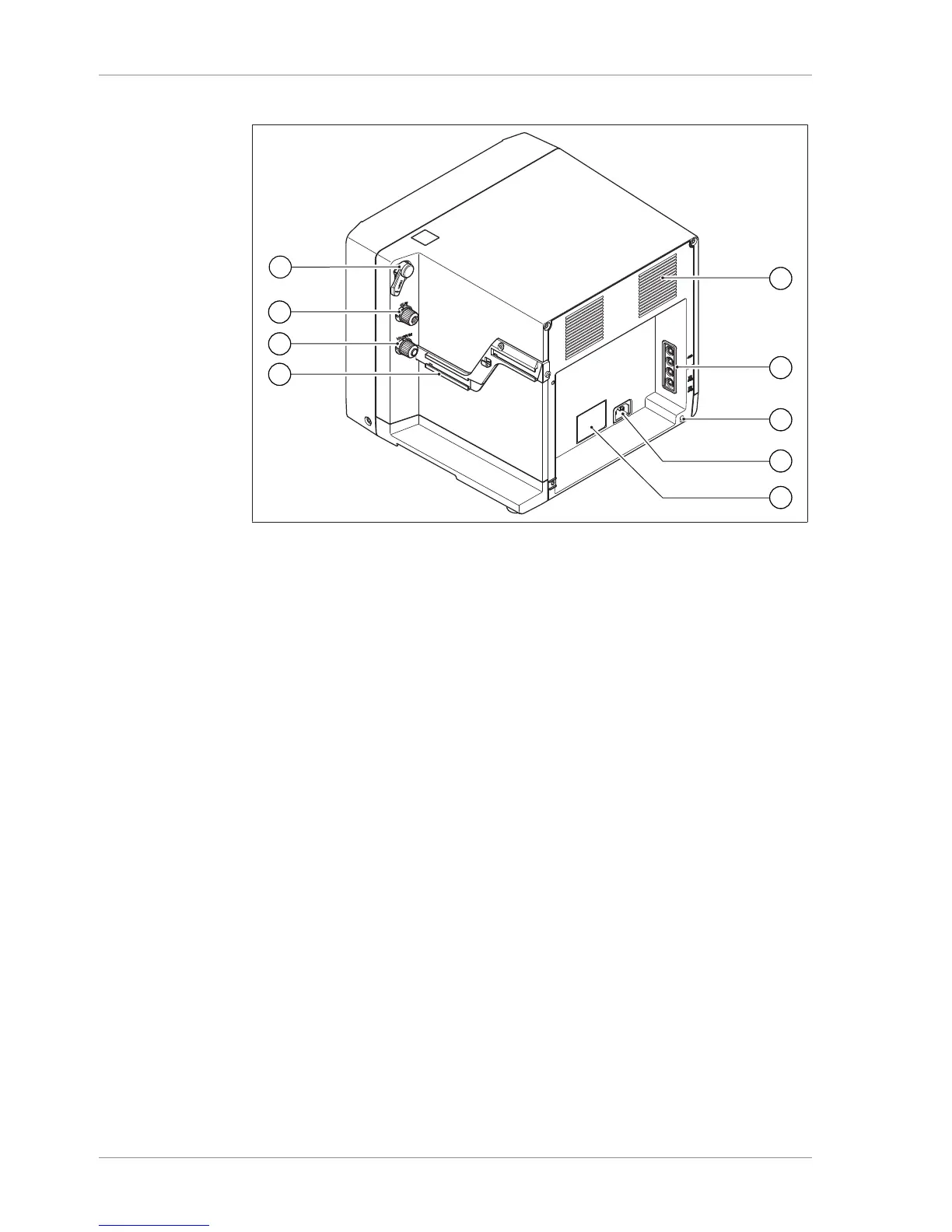

Fig.2: Rear view of V-600
1 Gas ballast 5 Ventilation slots
2 Pump outlet 6 Connection panel for communication
cables (see Chapter5.12 "Connect-
ing communication cables to the
V-600", page32)
3 Pump intake (vacuum) 7 Lashing eye (for securing against fall-
ing during earthquakes)
4 Mounting rail for accessory compo-
nents
8 Power supply connection
9 Type plate
