Buchi V-600 - Dismantling and Reassembling Pump Head

BÜCHI Labortechnik AG Cleaning and servicing | 7
Operation Manual Vacuum Pump V-600 43/65
7.2.2 Dismantling and reassembling pump head
The four pump heads and the connecting parts (T-pieces and pump-head connecting
tubes) are located behind the casing front (1).
1
2
2
3
4
5

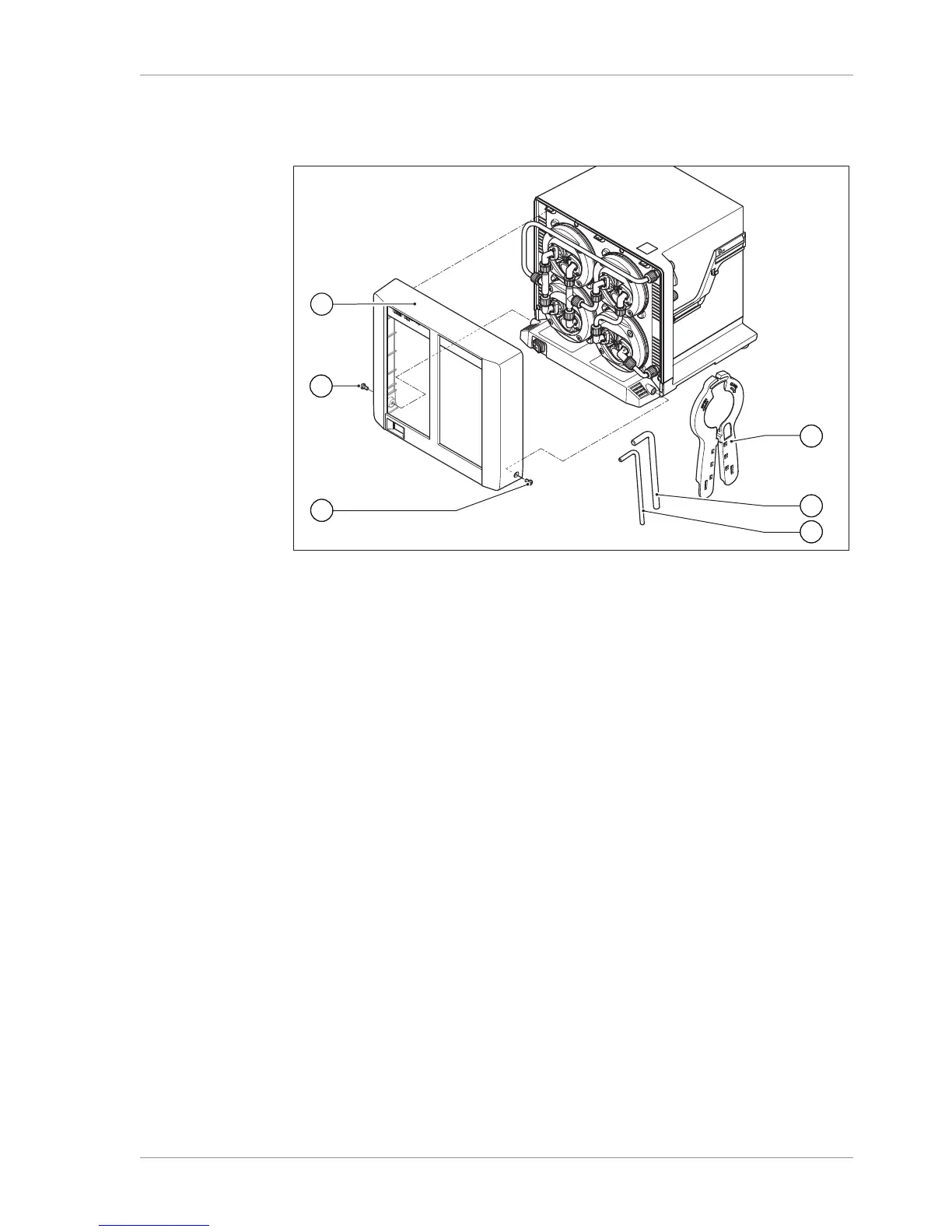

Fig.24: Casing front of V-600
1 Casing front 4 Torx key Tx10 (supplied)
2 Fixing screws 5 Torx key Tx25 (supplied)
3 Diaphragm grips (supplied)
Tools required:
 Torx key Tx25
Precondition:
R Pump has been shut down.
R Connections between the pump and other laboratory equipment have been dis-
connected.
u Using a Torx key (5), unscrew the two fixing screws (2) at the sides.
u Remove casing front (1).
