5.13 Assembling the BUCHI distillation system
In order to use the Vacuum Pump to best effect, we recommend that it is used to-
gether with the following equipment:
3
4
5
1
3
4
5
1

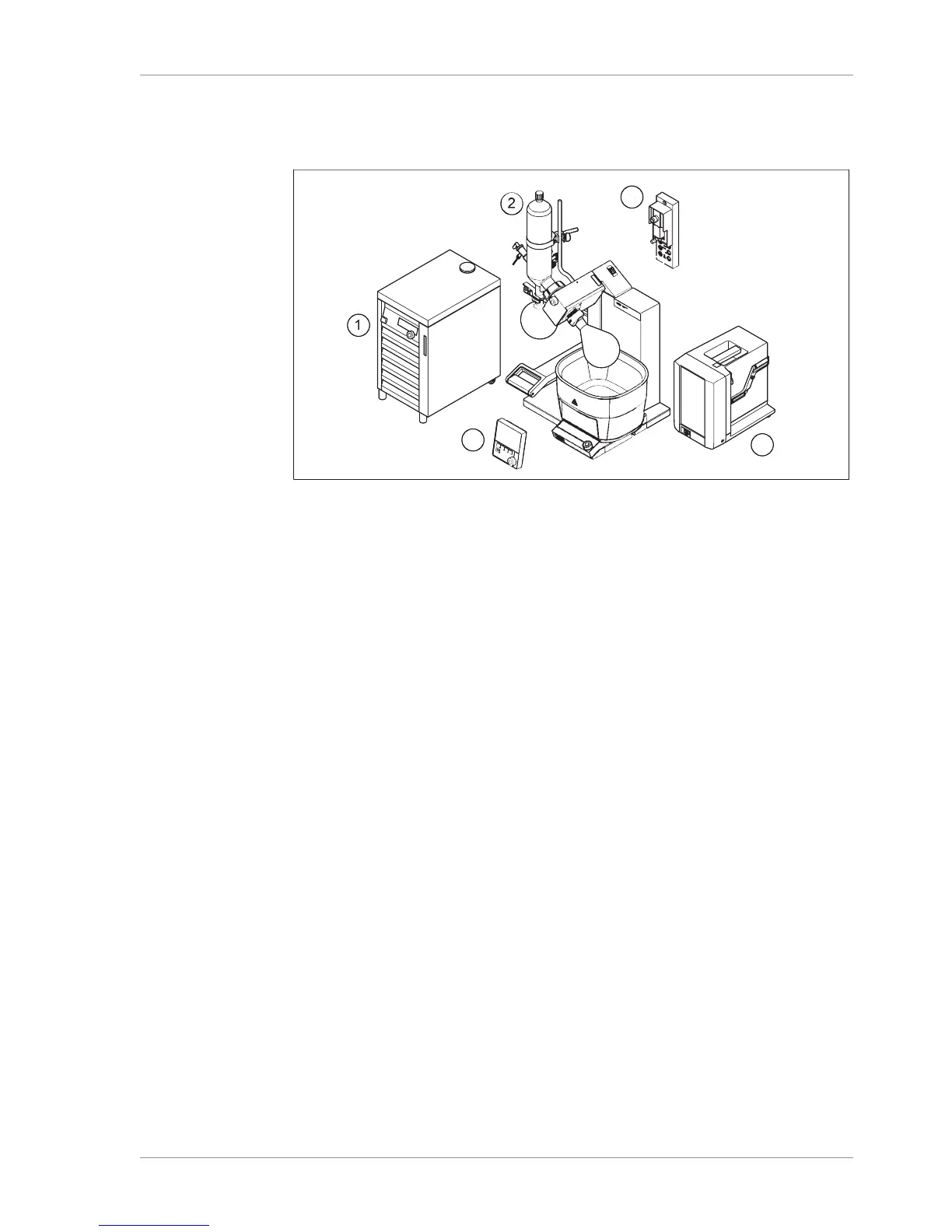

Fig.19: Typical application (example)
1 Recirculating Chiller F-3xx 4 Vacuum Pump V-300/V-600
2 Rotavapor R-300 with heating bath
B-305 or B-301
5 Interface I-300
3 VacuBox
The F-3xx is a recirculating chiller with a sealed circulation system. It is available in
various capacity ratings.
The Interface I-300/I-300 Pro together with the VacuBox can be used to control and
monitor the vacuum. It can control the Rotavapor, the Vacuum Pump V-300/V-600
and the Recirculating Chiller F-3xx.
The Vacuum Pump V-300/V-600 is a diaphragm pump designed for evacuating labo-
ratory apparatus. It can be operated either as a standalone device or combined with
optional accessories such as an interface unit and a secondary condenser to form a
complete vacuum system. The laboratory equipment to be evacuated is connected to
the vacuum pump and the VacuBox by means of vacuum tubing. See Chapter5.13.3
"Overview: setting up vacuum tubing connections", page36.
Data communication between the laboratory equipment takes place via the communi-
cation ports. See Chapter5.13.1 "Overview: setting up communication connections",
page34.
The coolant circulates around the distillation system through a separate circulation
system. See Chapter5.13.2 "Overview: setting up coolant tubing connections",
page35.
