3.2.3 Connections
2
1
3

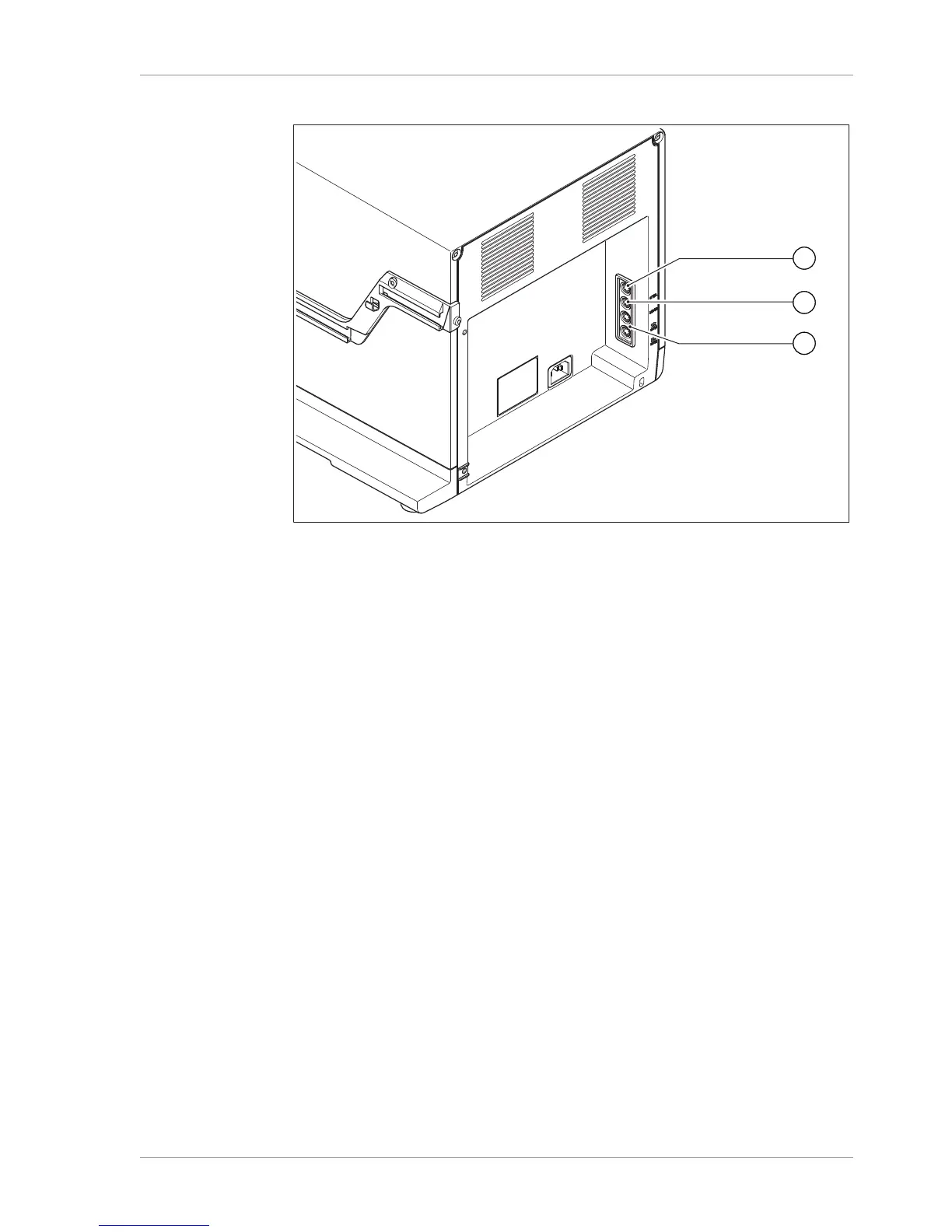

Fig.3: Connections on the V-600
1 Connection for alternative pump con-
troller (CTRL)
3 Standard BUCHI communication
ports (COM)
2 Fill level sensor connection (LEVEL)
Standard BUCHI communication port (COM)
The standard BUCHI communication port is used to connect the Interface I-300/I-300
Pro to the Vacuum Pump V-600. For more information, see Chapter5.13.1 "Over-
view: setting up communication connections", page34.
Connection for alternative pump controllers (CTRL)
The CTRL socket offers the following options:
 Digital ON/OFF control of the pump via legacy devices (V-850 / V-855,
V-800 / V-805) or via the VacuBox.
 Operation of two Rotavapor systems with only one Vacuum Pump V-600, see
Chapter5.14 "Operating the Vacuum Pump V-600 with 2 Rotavapor systems",
page37.
 Control of pump speed by different-make products with analog 0–10 V signal.
