5.12 Connecting communication cables to the V-600
1
2
3

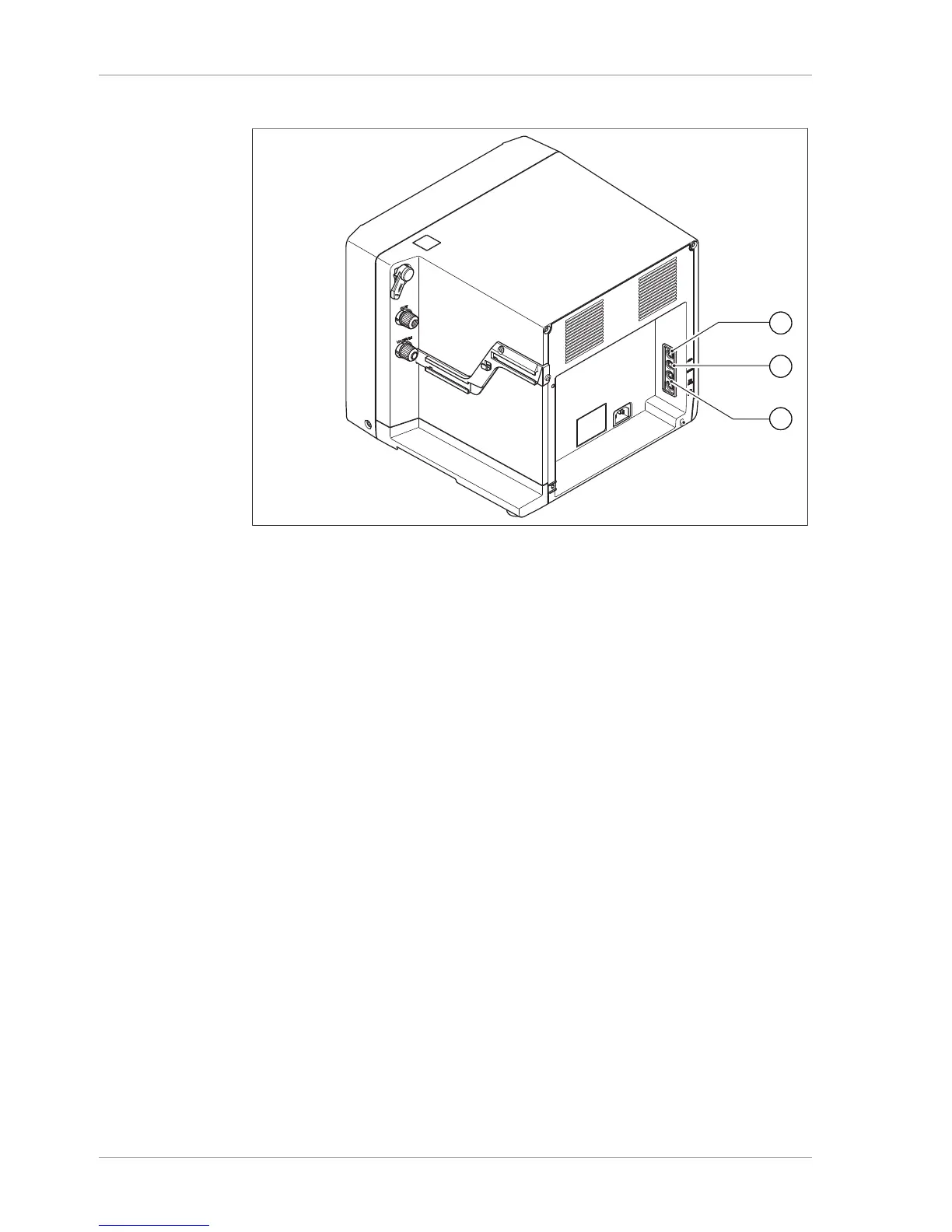

Fig.18: Communication connections on V-600
1 Connection for alternative pump con-
troller (CTRL)
3 Standard BUCHI communication
ports (COM)
2 Fill level sensor connection (LEVEL)
u Plug the communication cable for connection to other BUCHI laboratory equip-
ment into one of the two standard BUCHI communication ports (3).
u Plug the communication cable into the green communication port on the other item
of laboratory equipment. For details of connecting the equipment via the communi-
cation ports see Chapter5.13.1 "Overview: setting up communication connec-
tions", page34.
