5.5.2 Connecting the silencer to the outlet of the secondary condenser
3
1
2

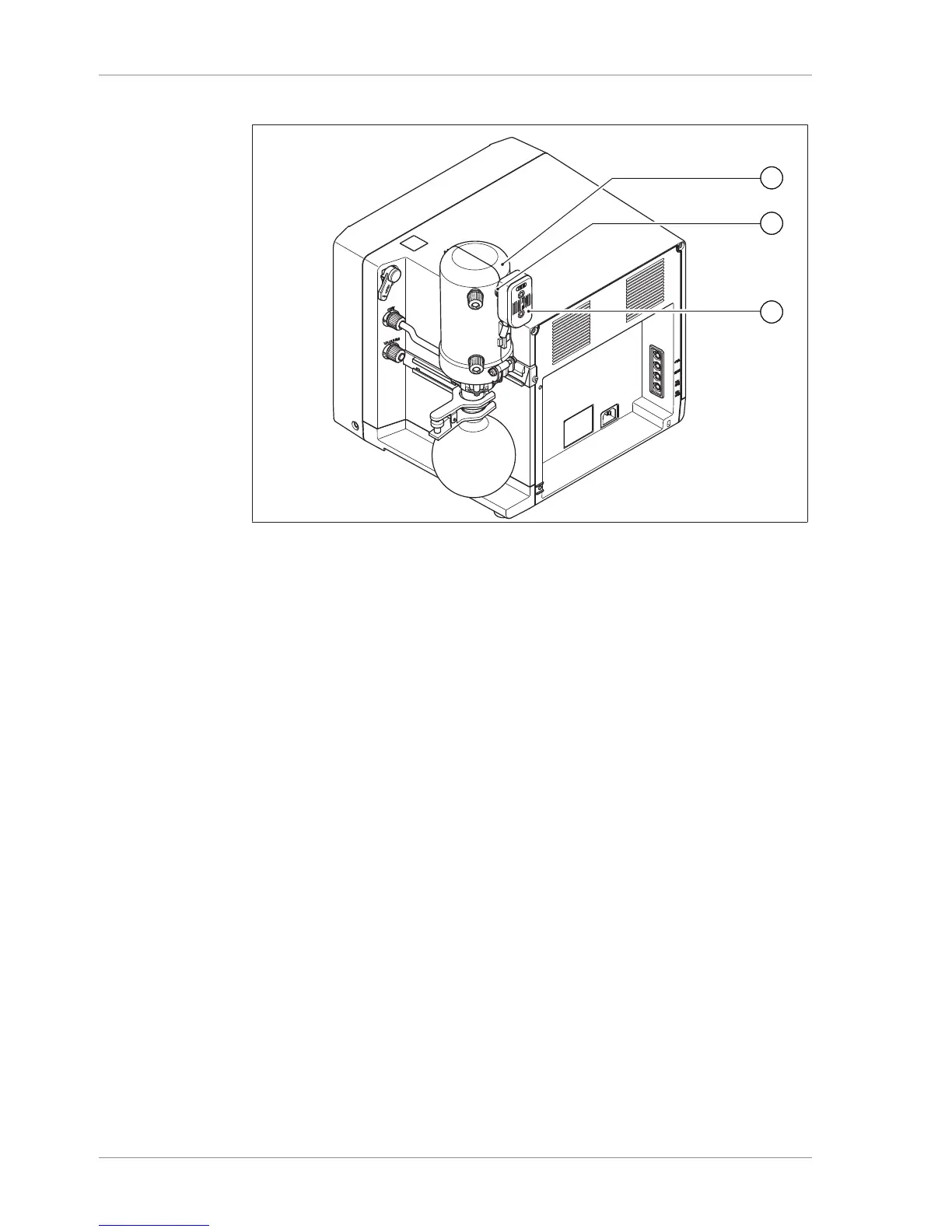

Fig.10: Silencer on outlet of secondary condenser
1 Secondary condenser 3 Silencer
2 GL14 union nut
Precondition:
R A secondary condenser (1) is mounted on the pump outlet of the V-600 and con-
nected up, see Connecting a secondary condenser.
u Fit the silencer (3) on the secondary condenser outlet.
u Slide the GL14 union nut forward and tube seal on the silencer inlet (2) and screw
it onto the GL14 thread of the secondary condenser outlet.
