BÜCHI Labortechnik AG Installation | 5
Operation Manual Vacuum Pump V-600 25/65
5.6 Connecting a Woulff bottle
1
2
4
3
5
6
7
8

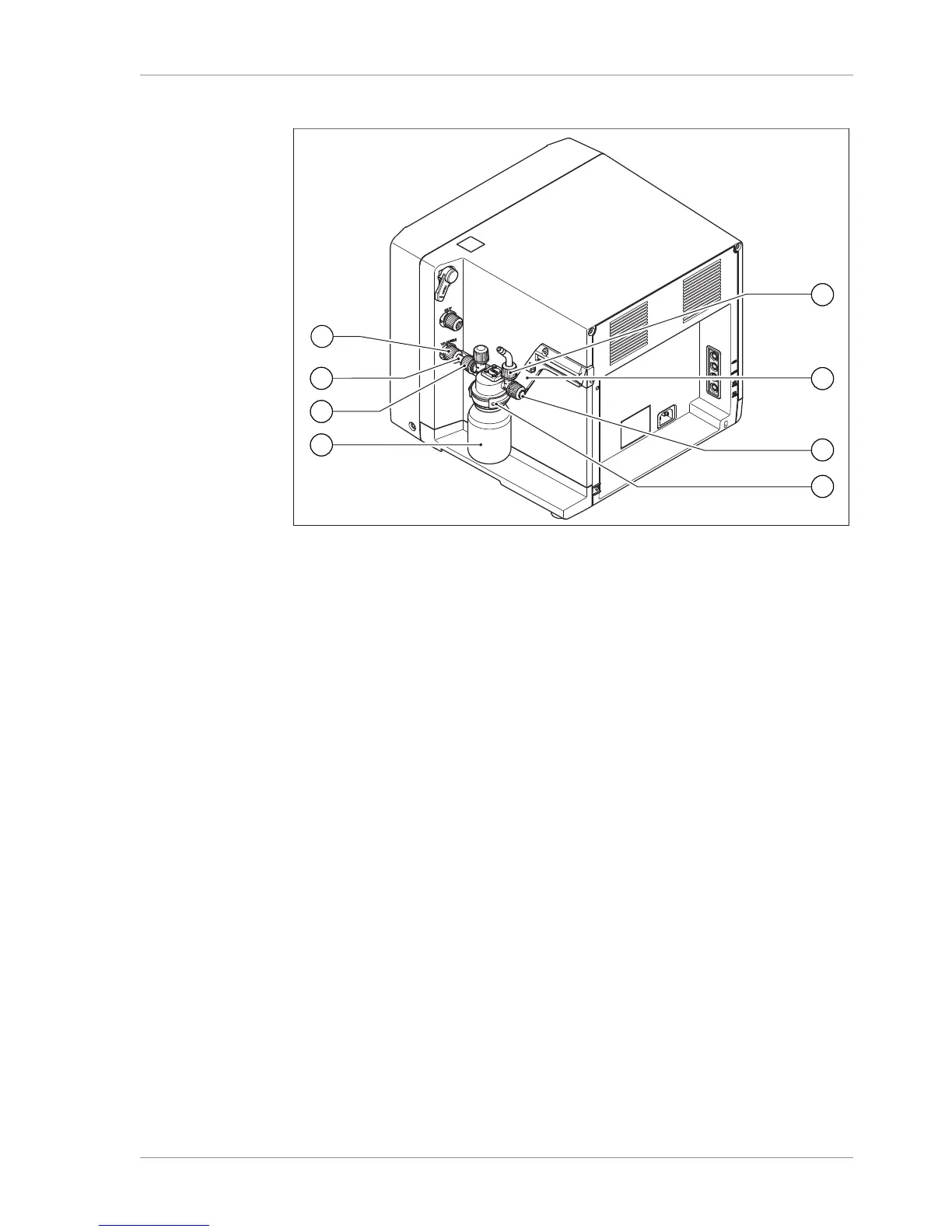

Fig.11: Woulff bottle on pump inlet of V-600
1 Pump intake (vacuum) 5 Woulff bottle inlet
2 Vacuum connecting tube 6 Mounting rail on V-600
3 Woulff bottle outlet 7 Outlet for VacuBox connection
4 Woulff bottle glass component 8 Woulff bottle holder
The Woulff bottle is fixed to a mounting rail on the V-600 and is connected to the
pump intake.
u Fit the holder (8) around the neck of the Woulff bottle.
u Fit a short section of vacuum tubing (2) to the outlet of the Woulff bottle (3).
u Slide a GL14 union nut with tube seal over the unattached end of the vacuum
tube.
u Position the Woulff bottle in front of the pump inlet (1) of the V-600. Slide the
holder into the lower slot of the mounting rail (6). When doing so, make sure that
the outlet of the Woulff bottle with connecting tube attached is facing the pump in-
let.
u Insert connecting tube (2) in the pump inlet (1) and screw GL14 union nut onto the
thread of the pump inlet.
5.6.1 Connecting the Vacubox via a Woulff bottle
If the Vacuum Pump V-600 is to be controlled via an Interface I-300, the Woulff bottle
must be connected to the VacuBox by a connecting tube.
