5 | Installation BÜCHI Labortechnik AG
30/65 Operation Manual Vacuum Pump V-600
u Position the interface unit (1) on the holder and fix it in place using a knurled-head
screw (6) inserted from the back.
5.10 Fitting a VacuBox
Fitting and connection of a VacuBox to the V-600 are necessary if the pump is to be
controlled via an Interface I-300/I-300 Pro. For details, see Chapter5.13 "Assembling
the BUCHI distillation system", page33.
3
2
2
1

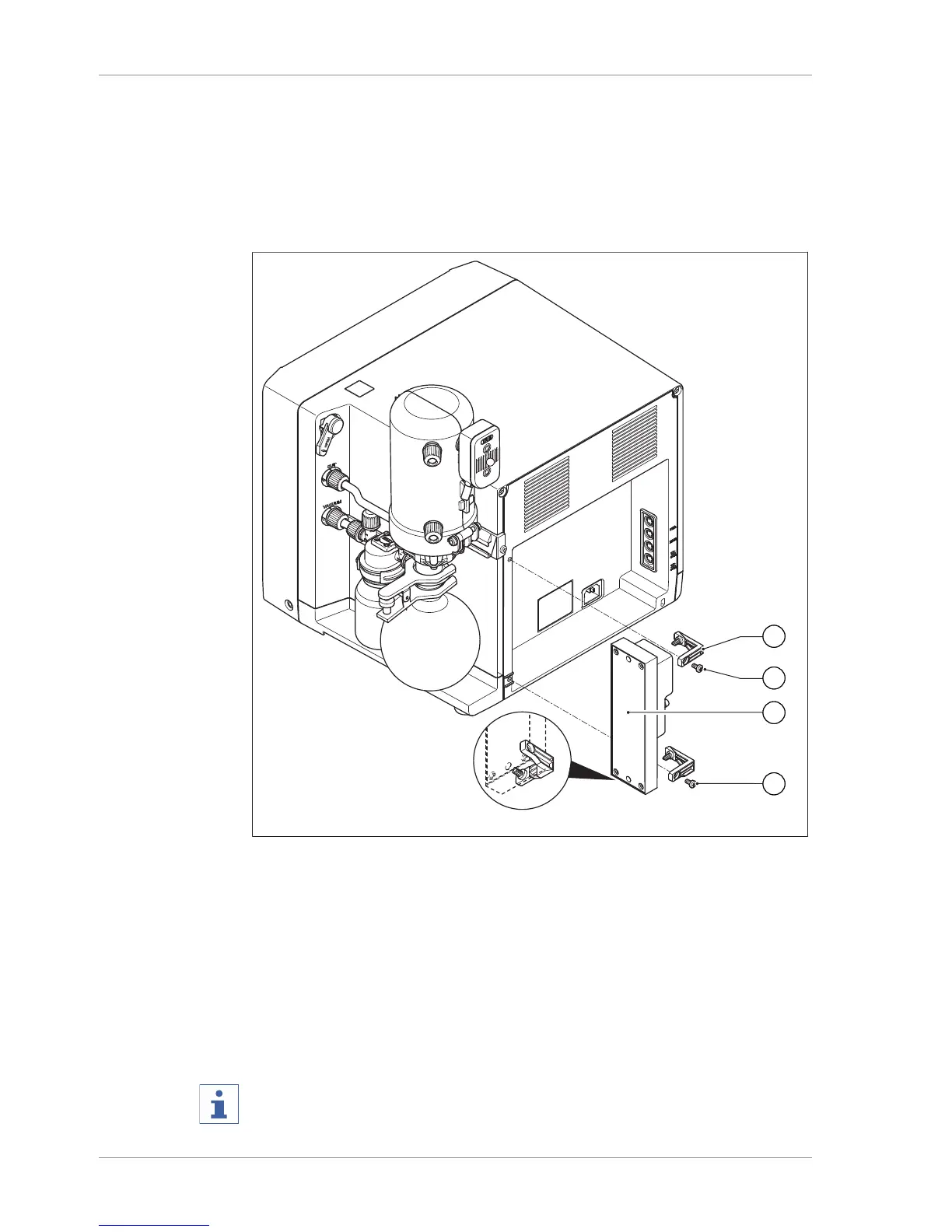

Fig.16: VacuBox on V-600
1 Fixing brackets 3 VacuBox
2 Screws
Tools required:
 Torx key Tx10
u Press fixing brackets (1) into the holes in the top and bottom of the VacuBox. The
wider of the two fixing brackets has to be fitted at the bottom.
u Position the VacuBox (3) on the rear of the V-600 on the left inner face of the re-
cess.
u Fix each fixing bracket to the casing of the V-600 with a screw (2).
NOTE
If a VacuBox is fitted, a Woulff bottle is a compulsory requirement.
