5.5 Connecting the silencer
The silencer can be connected directly to the V-600 or to the outlet of a secondary
condenser.
5.5.1 Connecting silencer directly to V-600
1
2
3

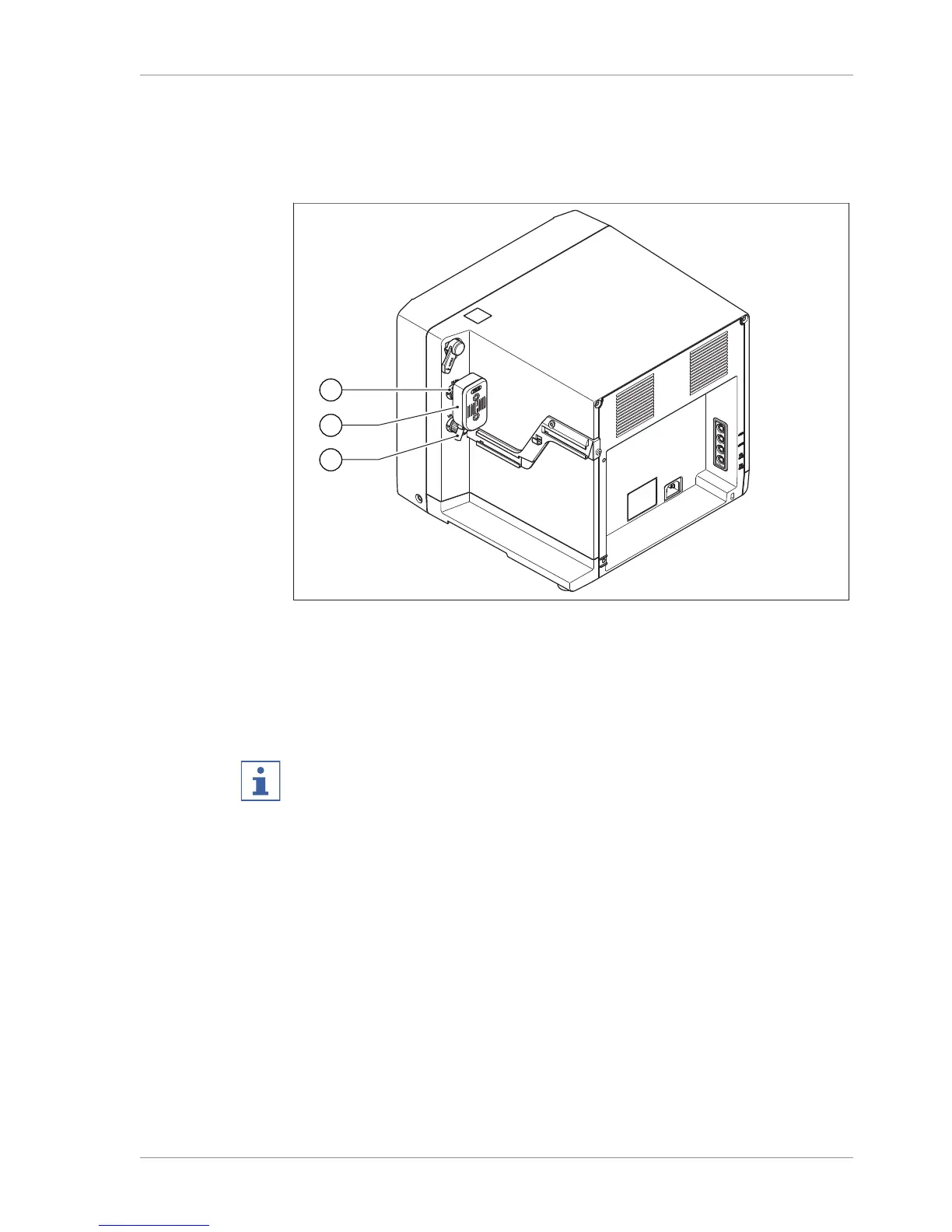

Fig.9: Silencer on pump outlet of V-600
1 GL14 union nut on silencer inlet 3 Silencer outlet
2 Silencer
u Fit the silencer (2) on the pump outlet.
u Slide the GL14 union nut forward on the silencer inlet (1) and screw it onto the
GL14 thread of the pump outlet.
NOTE
A tube can be connected to the silencer outlet (3) to direct the exhaust air into a fume
hood.
