5.7 Connecting a secondary condenser
1
2
4
5
3
6
9
10
7
8
11

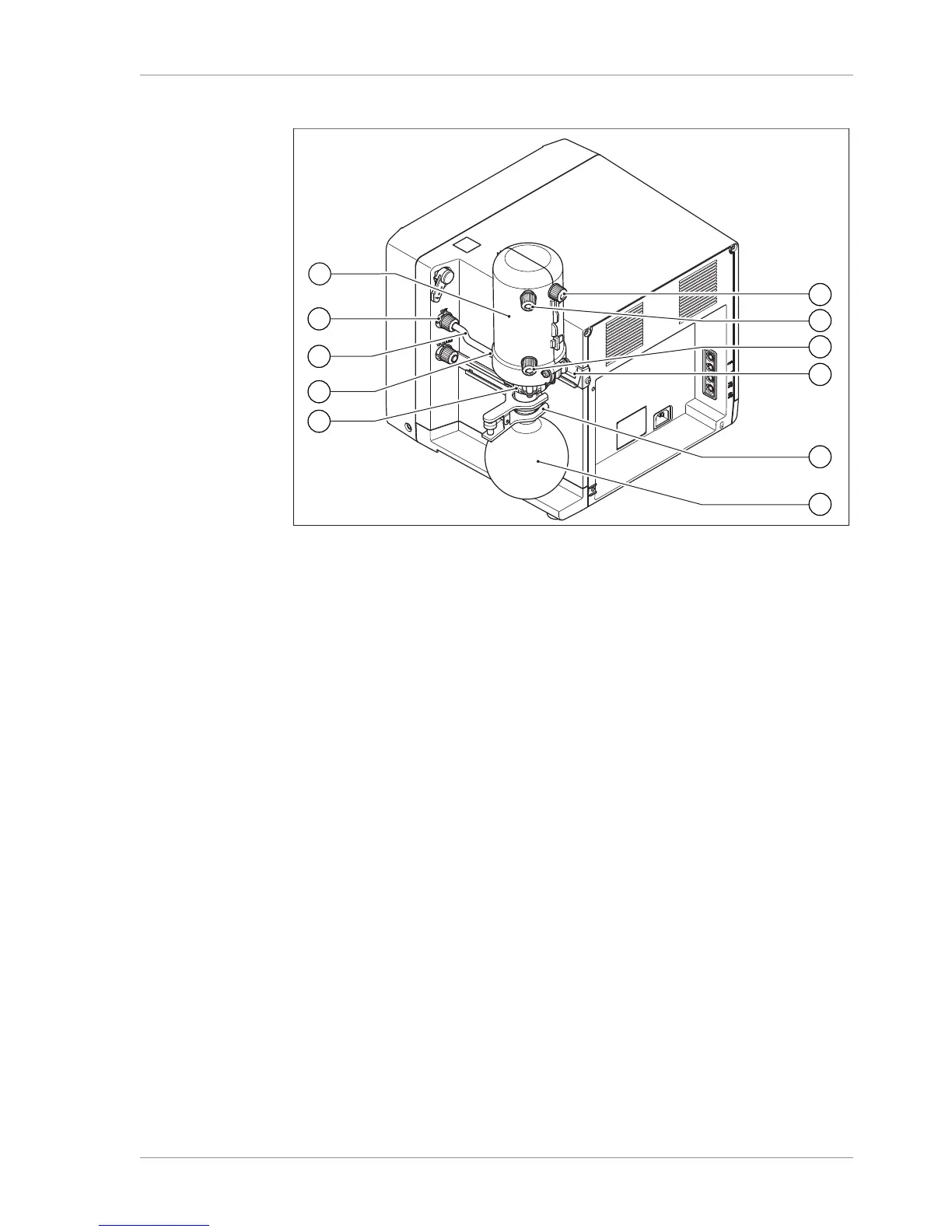

Fig.13: Secondary condenser connected to pump outlet of V-600
1 Secondary condenser 7 Coolant outlet
2 Pump outlet with GL14 union nut 8 Coolant inlet
3 Connecting tube 9 Mounting rail on V-600
4 Secondary condenser inlet 10 Ball joint clamp
5 Holder for secondary condenser 11 Receiving flask
6 Secondary condenser outlet
The secondary condenser is fixed to a mounting rail on the V-600 (9) and is con-
nected to the pump outlet (2).
u Fit a short connecting tube (3) to the secondary condenser inlet (4).
u Loosely screw a GL14 union nut together with tube seal onto the thread of the
pump outlet (2), Chapter7.2.8 "Fitting GL14 union nut with tube seal", page55.
NOTICE!If incorrectly fitted, the tube seals may be damaged.
u Position the secondary condenser in front of the pump outlet of the V-600. Slide
the holder into the upper slot of the mounting rail (7). When doing so, make sure
that the inlet of the secondary condenser with connecting tube attached is facing
the pump outlet.
u Insert the connecting tube into the threaded pump outlet connector, taking care
not to damage the tube seal when doing so.
u Tighten the GL14 union nut.
u Fit receiving flask (11) onto the bottom outlet of the secondary condenser and fix
with the aid of a catchpot clip (10).
u Optional feature: From the outlet of the secondary condenser (6), feed another
connecting tube directly into a fume hood.
