5 | Installation BÜCHI Labortechnik AG
26/65 Operation Manual Vacuum Pump V-600
1
2
4
5
3

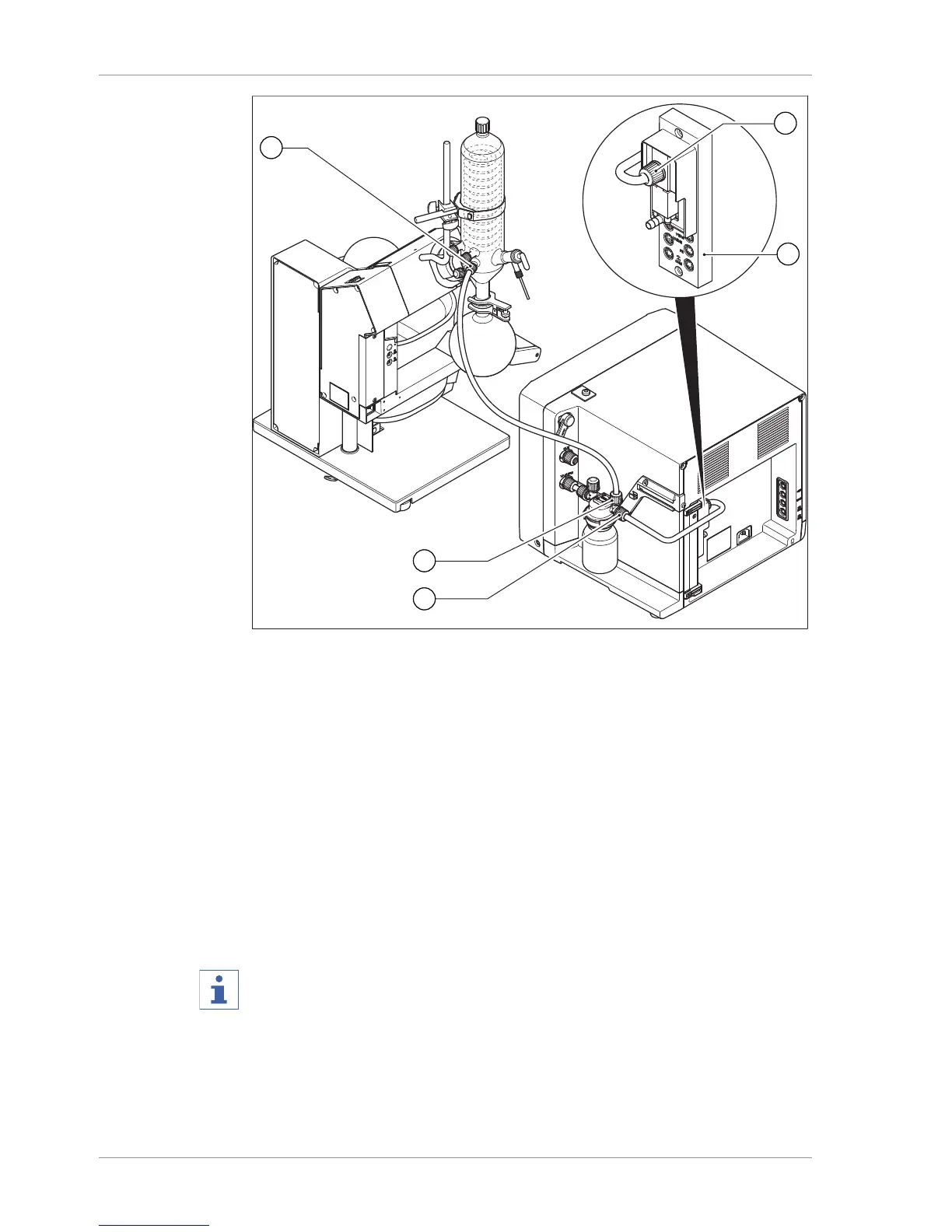

Fig.12: Woulff bottle tubing connections
1 Vacuum connection on VacuBox 4 Woulff bottle inlet
2 VacuBox 5 Vacuum connection on cooling con-
denser
3 Outlet for VacuBox connection
Precondition:
R Woulff bottle is mounted on and connected to the V-600.
R VacuBox (2) is mounted on the Vacuum Pump V-600, see Chapter5.10 "Fitting a
VacuBox", page30.
u Fit a connecting tube to the outlet of the Woulff bottle (3) and the vacuum connec-
tion of the VacuBox (1).
u If necessary, fit a connecting tube to the inlet of the Woulff bottle (4) and the vac-
uum connection of the cooling condenser (5).
u Connect the communication cable, see Chapter5.12 "Connecting communication
cables to the V-600", page32.
NOTE
In a BUCHI distillation system, the VacuBox and Woulff bottle can alternatively be
mounted on the Rotavapor instead of on the Vacuum Pump V-600. What is important
is that the VacuBox and Woulff bottle are as close as possible to each other (on the
same device) as otherwise there is a vacuum control lag. If the VacuBox and Woulff
bottle are mounted on and connected to the Rotavapor, the relevant sections of the
operating instructions for the Rotavapor R-300 must be followed.
