7 | Cleaning and servicing BÜCHI Labortechnik AG
44/65 Operation Manual Vacuum Pump V-600
Step 1: Removing connecting components
1
2
5
3
4
6
7
8
9

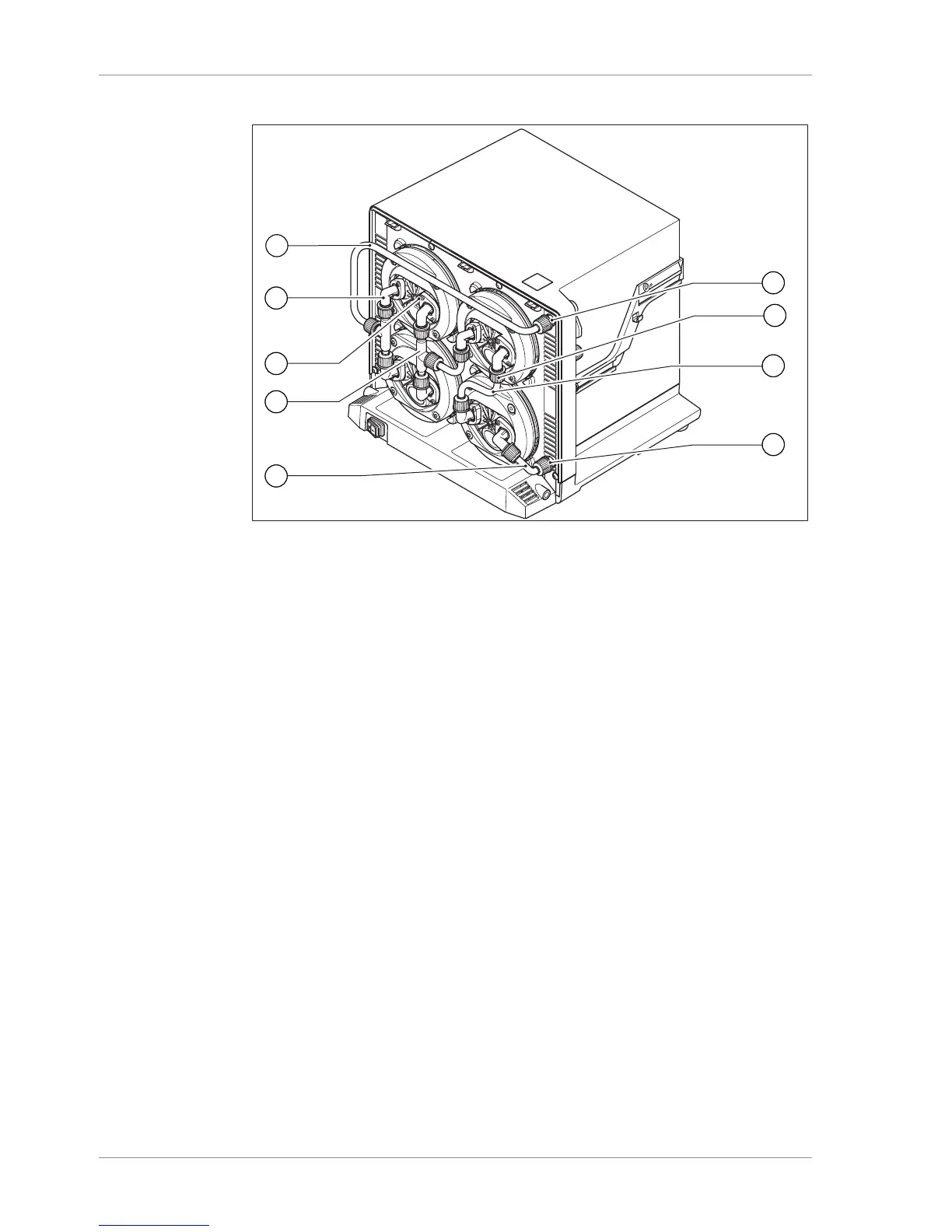

Fig.25: Elbow connectors, connecting tubes and T-pieces inside V-600
1 Connecting tube between pump head
and pump intake connection
6 Connection for pump intake
2 Elbow connector 7 GL14 union nut
3 Fixing screw for connector 8 Pump-head connecting tube
4 T-piece 9 Connection for pump outlet
5 Connecting tube between pump head
and pump outlet connection
The V-600 has four pump-head connecting components as follows:
 Connecting tube (1) and T-piece between left-hand pump heads and pump intake
connection
 Connecting tube and T-piece (4) between left-hand pump heads and right upper
pump head
 Connecting tube (8) between right upper pump head and right lower pump head
 Connecting tube (5) between right lower pump head and pump outlet connection
Removing connecting components between left-hand pump heads and pump
intake connection
Tools required:
 Torx key Tx10
u Unscrew the fixing screws (3) from the two elbow connectors (2) on the left-hand
pump heads.
u Unscrew and pull back the GL14 union nut on the connection for the pump intake
(6).
u Remove the entire connecting component together with elbow connectors.
