2 Technical description
6 720 646 864 (12/2010) – Technical guide Logano GE315, GE515 and GE615
14
Logano GE615

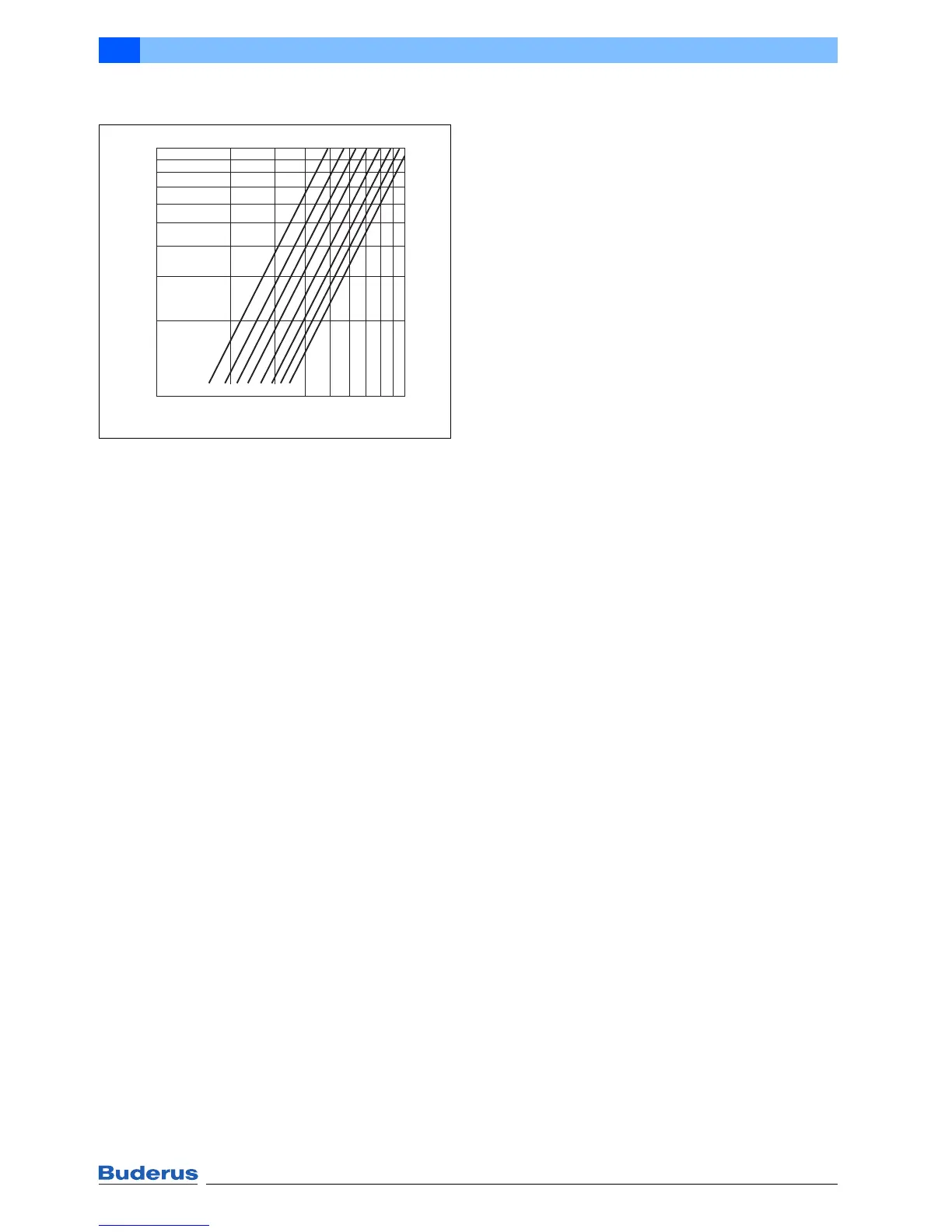

Fig. 11 Pressure drop on the water side for Ecostream
cast iron boilers and Ecostream cast iron boiler
units Logano GE615
Δp
H
Pressure drop on the heating water side
V
H
Heating water flow rate
a Boiler size 570 kW
b Boiler size 660 kW
c Boiler size 740 kW
d Boiler size 820 kW
e Boiler size 920 kW
f Boiler size 1020 kW
g Boiler size 1100 kW
h Boiler size 1200 kW
100
50
10
10 20 4030 50 100
6 720 644 097-10.1il
[m
3
/h]
V
H
Δp
H
[mbar]
a b c d e f g h
