8 Installation
6 720 646 864 (12/2010) – Technical guide Logano GE315, GE515 and GE615
62
8.5.3 Boiler safety equipment assembly
An intermediate flow piece and valve distributor are
required to install the safety equipment. These must have
type-test approval if the boiler safety temperature is above
110 °C. The boiler safety equipment assemblies for the
Ecostream cast iron boilers Logano GE315, GE515 and
GE615 have joint type-test approval with the boiler.
Ensure that flat gaskets are used with all threaded fittings.
Versions
For Logano GE315 DN 65
Type-test approval number 06-226-683
For Logano GE515 DN 100
Type-test approval number 06-226-640
For Logano GE615 DN 150
Type-test approval number 06-226-713
Logano GE315

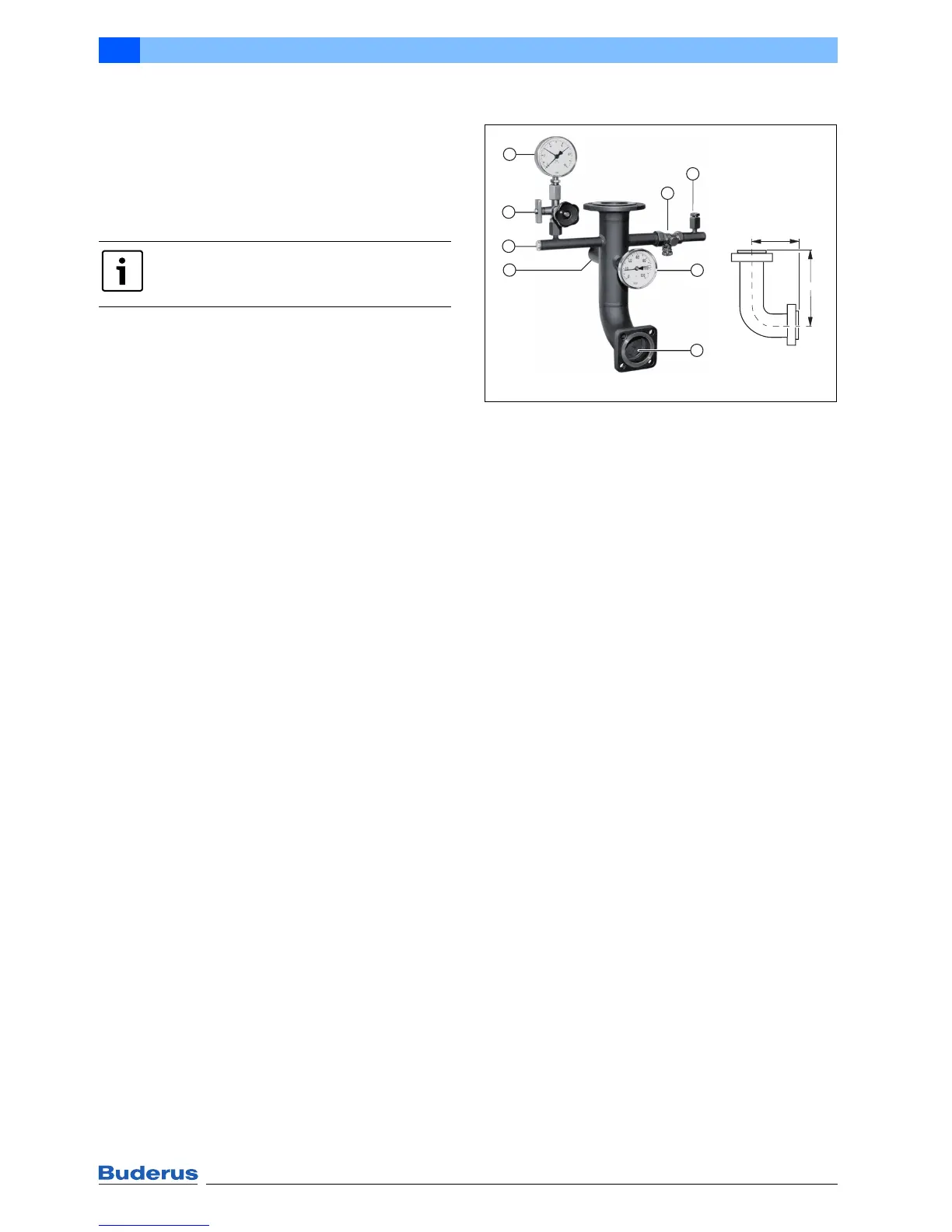

Fig. 43 Boiler safety equipment assembly for Ecostream
cast iron boiler Logano GE315
A DN 65 round
B DN 65 square
1 Intermediate flow piece
2 Cap shut-off valve
3 Connection for safety valve G 1½
4 Spare fem. connection ½ "
5 Pressure gauge and pressure gauge shut-off valve with
test flange
6 Connection for pressure gauge
7 Sensor well with thermometer
8 Connection for 2nd maximum pressure limiter (Æ Tab. 33,
page 61)
1)
The standard delivery includes a minimum pressure switch
(replaces the low water indicator). It should be installed
directly on the rear section of the boiler.
The standard delivery of the boiler safety
equipment assembly includes a complete
gasket set and installation instructions.
6 720 644 097-37.1il
357
135
1
7
3
2
4
8
6
5
A
B
1)
