Logano GE515 – boiler output ≤ 300 kW with
minimum pressure switch

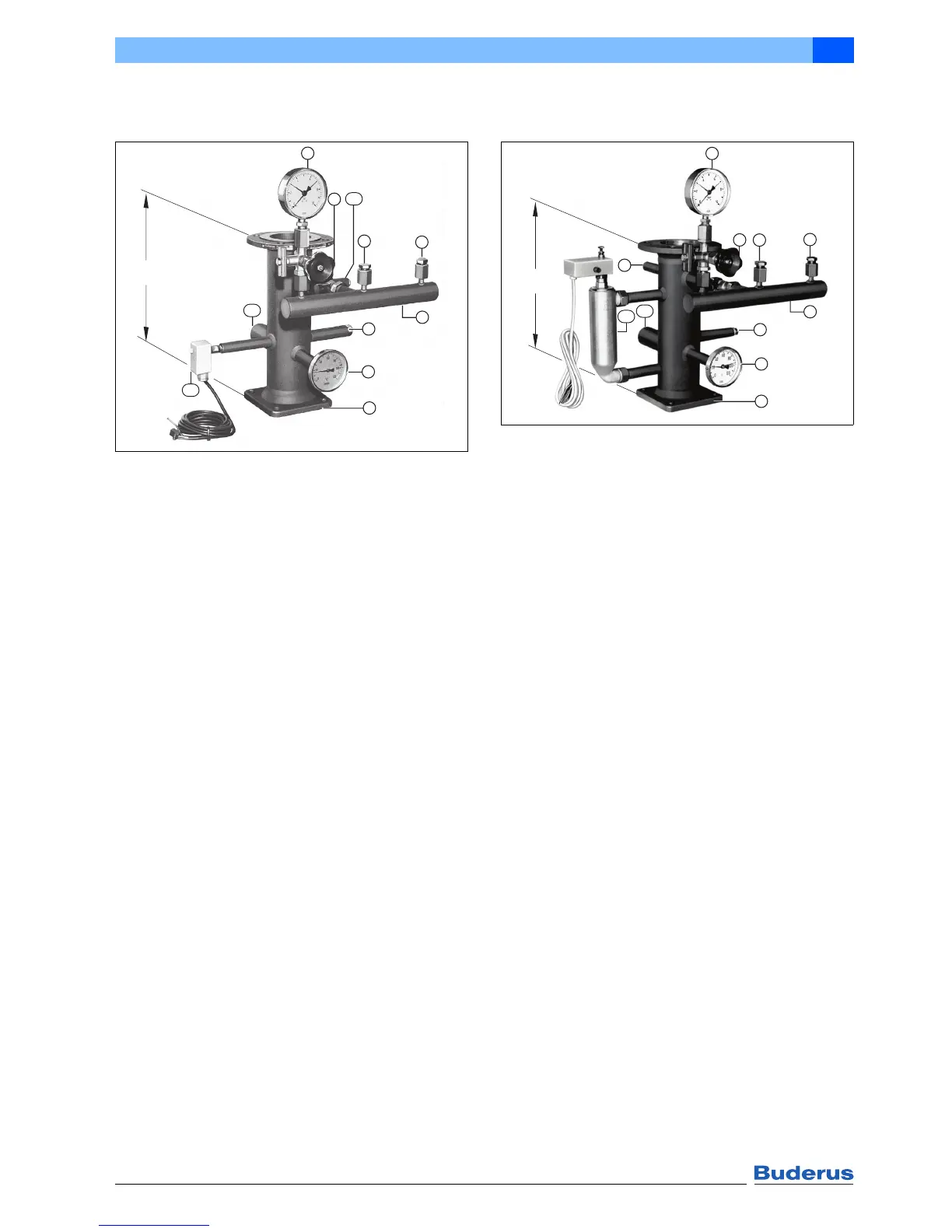

Fig. 44 Boiler safety equipment assembly for Ecostream
cast iron boiler Logano GE515
1 Intermediate flow piece
2 Valve distributor (Æ Fig. 48)
3 Connection for maximum pressure limiter
4 Connection for 2nd maximum pressure limiter
(Æ Tab. 33, page 61)
5 Pressure gauge and pressure gauge shut-off valve with
test connection
6 Connection for pressure gauge
7 Sensor well with thermometer
8 Connection for temperature test device
10 Connection for safety valve G 1½
12 Minimum pressure switch (Æ Tab. 34, page 61)
13 Spare connection or connection for additional high limit
safety cut-out
Logano GE515 – boiler output > 300 kW with low
water indicator
Fig. 45 Boiler safety equipment assembly for Ecostream
cast iron boiler Logano GE515
1 Intermediate flow piece
2 Valve distributor (Æ Fig. 48)
3 Connection for maximum pressure limiter
4 Connection for 2nd maximum pressure limiter
(Æ Tab. 33, page 61)
5 Pressure gauge and pressure gauge shut-off valve with
test flange
6 Connection for pressure gauge
7 Sensor well with thermometer
8 Connection for temperature test device
9 Spare connection
10 Connection for safety valve G 1½
11 Low water indicator (Æ Tab. 34, page 61)
1
7
8
2
B
A
420
10
13
12
4
6
5
3
6 720 644 097-38.1il
1
7
8
9
2
3
4
6
5
10
11
6 720 644 097-39.1il
