2 Technical description
6 720 646 864 (12/2010) – Technical guide Logano GE315, GE515 and GE615
5
2 Technical description
2.1 Equipment level of the Ecostream
cast iron boilers Logano GE315,
GE515 and GE615

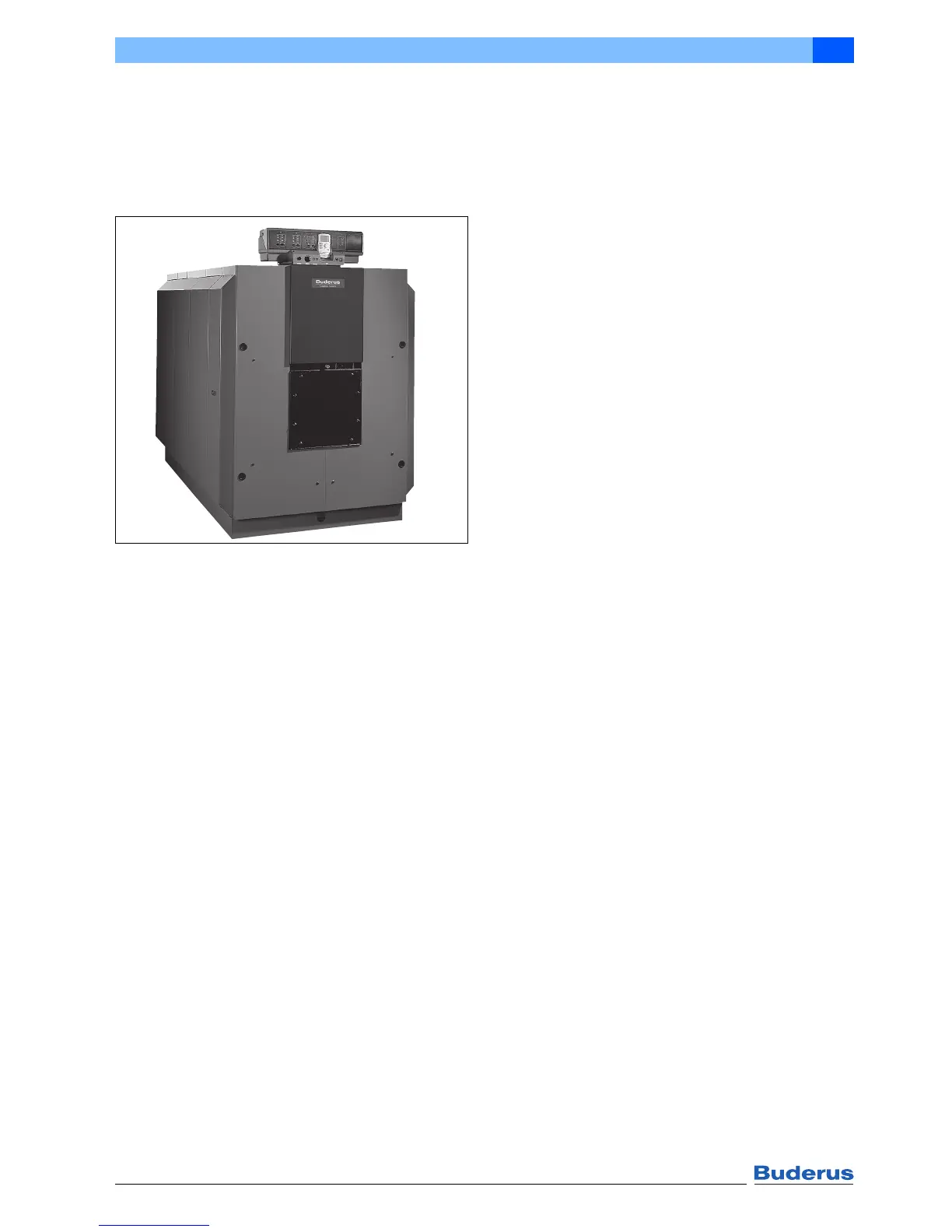

Fig. 1 Ecostream cast iron boiler Logano GE615 with
Logamatic 4311 control unit
The Ecostream cast iron boilers Logano GE315, GE515
and GE615 are tested to EN 303, type-tested and CE-
designated. Quality assurance measures to
DIN ISO 9001 and EN 29001 contribute to the high
manufacturing quality and functional reliability.
All Ecostream cast iron boilers are made from Buderus
special GL 180 M grey cast iron which is resistant to
corrosion and high temperatures. They are designed for
thermostream technology. This is why they are suitable as
low temperature boilers for modulating operation with no
minimum start temperature.
Ecostream cast iron boilers feature all-round thermal
insulation and painted casing (RAL 5015). The thermal
insulation on the Logano GE315 and GE515 cast iron
boilers is 80 mm thick, and on the Logano GE615 cast
iron boilers is 100 mm thick. The combustion chamber
and the secondary heating surfaces are easily accessible
through large front doors that can be pivoted to the left or
right.
The boilers are supplied either in individual sections
(Æ Fig. 41) or as a pre-assembled boiler block.
Finely stepped output levels
The following Ecostream cast iron boilers are available:
• Logano GE315 with output of 86 kW to 230 kW
• Logano GE515 with output of 201 kW to 510 kW
• Logano GE615 with output of 511 kW to 1200 kW
Available components
• The Logamatic 4211, 4212, 4311 and 4312 control
units in a modular design
• Pressure-jet oil and gas burners
• Drilled burner plates onto which the pressure-jet gas
and oil burners are mounted
• Numerous matching accessories (Æ page 56 ff.)
